Hydrostatic Pumps and Motors Axial Piston Pump by Highland Hydraulic

Company Advantages

· hydrostatic pumps and motors takes on by elegant shape to meet high demands.

· The outstanding feature of this product lies in high performance.

· Shandong Highland Hydraulic Seiko Co., Ltd has set up the top platform of commercial resource in the world.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

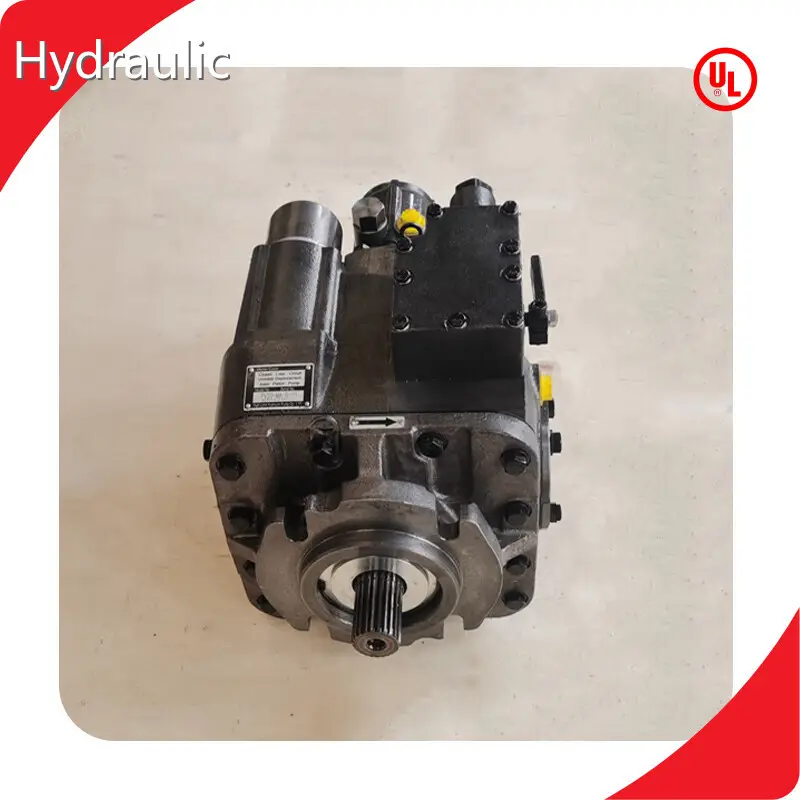

SPV23 Hydraulic Piston Pump is engineered for high-performance concrete mixing applications. Ensuring efficient and precise mixing operations, built for durability, it withstands high-pressure demands and continuous operation in tough construction environments. Its advanced hydraulic technology minimizes energy consumption while maximizing output, making it a reliable choice for concrete mixers in large-scale projects.

Product Features

• SPV23 Hydraulic Piston Pump is specifically designed for concrete mixers, providing powerful and efficient hydraulic performance.
• High-pressure capacity and durable construction make it ideal for demanding construction applications.
• With advanced engineering and precision manufacturing, the SPV23 pump offers extended service life, minimizing downtime and maintenance costs.
• Its compact and robust design allows for easy installation, making it a preferred choice for concrete mixing equipment.

Product INTRODUCTION

SPV23 Hydraulic Piston Pump is a robust and efficient solution for concrete mixers, designed to handle extreme working conditions. Its high-pressure capabilities ensure mixer high efficiency performance. Hydraulic pump’s durable materials and precise engineering provide long-lasting reliability with minimal maintenance. Suitable for heavy-duty applications, it improves overall efficiency and operational stability in construction projects.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Read More

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

SPV23 Piston Pump

SPV23 Hydraulic Piston Pumps

Concrete Mixer Hydraulic Piston Pump

Mixer Hydraulic Piston Pump SPV23

Product Application

6-12 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

About Us

Shandong Highland Hydraulic Seiko Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with more than 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.

Packing & Delivery

To protect hydrostatic pump, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

Company Features

· Over the years, Shandong Highland Hydraulic Seiko Co., Ltd has been putting efforts on the R&D, design, and production of hydrostatic pumps and motors. We have been regarded as one of the competitive manufacturers in the industry.

· We have professional QC department to test strictly hydrostatic pumps and motors. According to the requirements of customers, Highland Hydraulic has introduced latest technology to produce hydrostatic pumps and motors.

· We concern the environment and the future. We will occasionally carry out training sessions for production workers on the issues of water pollution control, energy conservation, and environmental emergency management.

Product Details

Our hydrostatic pumps and motors has better quality performance by virtue of the following excellent details.

Product Comparison

Our hydrostatic pumps and motors has the following advantages over peer products.

Enterprise Advantages

Highland Hydraulic has a professional team with experienced team members. Besides, we introduce international advanced production concepts and models to promote corporate development.

Our company persists in management philosophy of 'guaranteeing quality and quantity, keeping the consistent goal'. For the customer's sake, we sincerely provide them with the best, most convenient and rapid service.

Our company has always adhered to the business philosophy of 'honest and law-abiding, people-oriented, cooperative and win-win', and we promote the enterprise spirit of 'compete fairly, progress actively, advance with the times'. Based on the equality and mutual benefit, we build great relationships with other outstanding enterprises in the industry. Moreover, we complement with each other and promote the industrialization together.

Highland Hydraulic was founded in For years, we have always insisted on independent innovation and have maintained vigorous development. Now we are a leading company in the industry.

The products of Highland Hydraulic have the advantages of complete functions, high technique and large added value, so that they can be sold well in domestic and foreign markets.
