Hydrostatic Pumps and Motors 15 Work Days - - Highland Hydraulic
Product details of the hydrostatic pumps and motors
Product Specification
Mode: MF20|MF22|MF23|MF110
Brand: HIGHLAND
Product Introduction
Highland Hydraulic hydrostatic pumps and motors has the best design that comes from professional designers. This product enjoys long service time for its sophisticated quality. The product has successfully achieved customer satisfaction and has broad market application prospects.
Advanced hydrostatic transmission
hydrostatic motor for superior efficiency
our advantage
Product Description
HIGHLAND advanced hydrostatic motor and transmission system provide smooth, efficient, and precise hydraulic power transfer, making it ideal for heavy-duty applications. It minimizes energy loss while ensuring optimal performance. With a compact design and durable construction, it withstands demanding industrial conditions. This hydrostatic solution enhances productivity while reducing maintenance costs.
Product Features
- Hydrostatic transmission and hydrostatic motor system deliver outstanding efficiency and precision in power transmission.
- Engineered for industrial, agricultural, and construction machinery.
- Hydrostatic motor provide excellent load adaptability, reducing energy loss and improving overall performance.
- Their robust construction ensures durability, even in harsh working conditions.
- With low maintenance requirements and enhanced operational efficiency.
Product INTRODUCTION
Designed for high efficiency and reliability, HIGHLAND hydrostatic transmission and motor system ensure smooth power delivery and superior performance. The system allows precise speed and torque control, improving operational efficiency in various industrial applications. Its durable design and advanced hydraulic technology make it a preferred choice for demanding environments.
MF series motor Product Specifications
|
Rated displacement |
|
20 |
22 |
23 |
110 |
|
|
Maximum displacement |
ml/r |
33.3 |
69.8 |
89 |
110.8 |
|
|
Speed |
Maximum continuous operating speed (Full load condition) |
r/min |
3500 |
3200 |
3000 |
3000 |
|
Rated speed |
r/min |
2500 |
||||
|
Minimum continuous operating speed |
r/min |
500 |
||||
|
Pressure |
Rated working pressure |
Mpa |
35 |
|||
|
Maximum working pressure (instantaneous) |
Mpa |
42 |
||||
|
Continuous working pressure ( Δ P) |
Mpa |
30 |
||||
|
Allowable shell pressure (absolute) |
Mpa |
Constant0.25，Peak value0.5 |
||||
|
Torque |
Continuous output torque (Under continuous work pressure) |
Nm |
143 |
334 |
430 |
621 |
|
Maximum output torque |
Nm |
167 |
390 |
502 |
725 |
|
|
Power |
Maximum power |
KW |
56 |
131 |
157 |
212 |
|
Temperature |
Allowable temperature of shell |
℃ |
-40 to 50 |
|||
|
Maximum operating temperature of fuel tank |
℃ |
80 |
||||
|
Weight |
MF series hydraulic motor Hydraulic oil drainage |
kg |
34 |
42 |
49 |
49 |
detail displaY
Product Application
Packing & Delivery

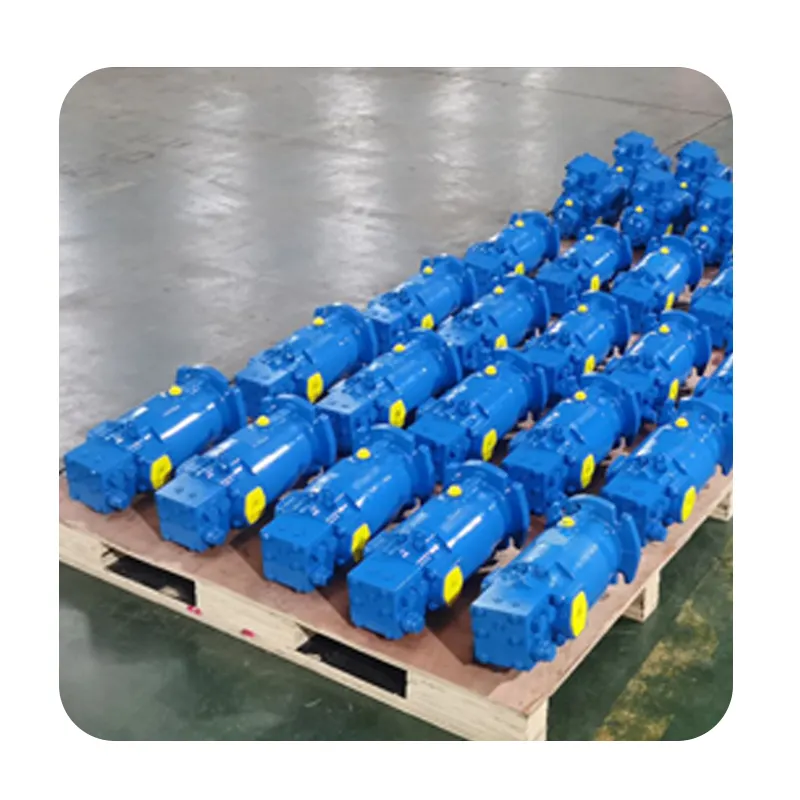

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.
FAQ
Company Advantage
• Highland Hydraulic is located in a place with traffic convenience, which is conducive for both small and large purchase.
• It has been years of history since Highland Hydraulic was founded in br /> • Highland Hydraulic has vigorously explored the domestic and overseas markets in various ways. Hydraulic pump、Hydraulic motor、Hydraulic test benches are currently sold well in some countries and regions in Europe, America, and Australia.
Highland Hydraulic's tools are produced and directly supplied from the factory at a favorable price. If you have any needs, please contact us. Highland Hydraulic will provide products with high quality and reasonable price in return for your trust and support.
