Fast Delivery Hydraulic Piston Pump
our advantage
Product Description
The robust construction and advanced sealing technology of PV23 hydraulic piston pump minimize fluid leakage, ensuring reliable, cost-effective performance in heavy-duty mixer truck applications.
Product Features
- Mixer truck hydraulic pump employs advanced hydrostatic piston technology, providing outstanding efficiency, superior fluid dynamics, and consistent high-pressure operation under challenging conditions.
- Manufactured to rigorous construction machinery standards, it guarantees smooth power transmission, exceptional reliability, and low maintenance requirements.
- Its specialized design supports continuous operation in concrete mixer applications, ensuring stable performance and extended service life.
Product INTRODUCTION
With high volumetric efficiency and low internal leakage,PV22 piston pump minimizes energy loss, enhancing fuel economy and reducing operational costs in mixer truck applications.
PRODUCT SPECIFICATIONS
|
Rated displacement |
|
20 |
22 |
23 |
110 |
|
|
Maximum displacement |
ml/r |
33.3 |
69.8 |
89 |
110.8 |
|
|
Speed |
Maximum continuous operating speed (Full load condition) |
r/min |
3500 |
3200 |
2700 |
2700 |
|
Rated speed |
r/min |
2500 |
|
|||
|
Minimum continuous operating speed |
r/min |
500 |
|
|||
|
Pressure |
Rated working pressure |
Mpa |
35 |
|
||
|
Maximum working pressure (instantaneous) |
Mpa |
42 |
|
|||
|
Continuous working pressure ( Δ P) |
Mpa |
30 |
|
|||
|
Allowable shell pressure (absolute) |
Mpa |
Constant0.25，Peak value0.5 |
|
|||
|
Torque |
Continuous output torque (Under continuous work pressure) |
Nm |
162.3 |
342.6 |
432.9 |
535.3 |
|
Maximum output torque |
Nm |
227 |
480 |
606 |
749 |
|
|
Power |
Continuous Power |
KW |
41 |
98 |
128 |
137 |
|
Maximum power |
KW |
57 |
105 |
138 |
159 |
|
|
Temperature |
Allowable temperature of shell |
℃ |
80 |
|
||
|
Maximum operating temperature of fuel tank |
℃ |
70 |
|
|||
|
Angle |
Maximum inclination angle of the inclined plate |
° |
± 18 ° |
|
||
|
Weight |
PV series hydraulic pump Hydraulic oil drainage |
kg |
45 |
63 |
79 |
79 |

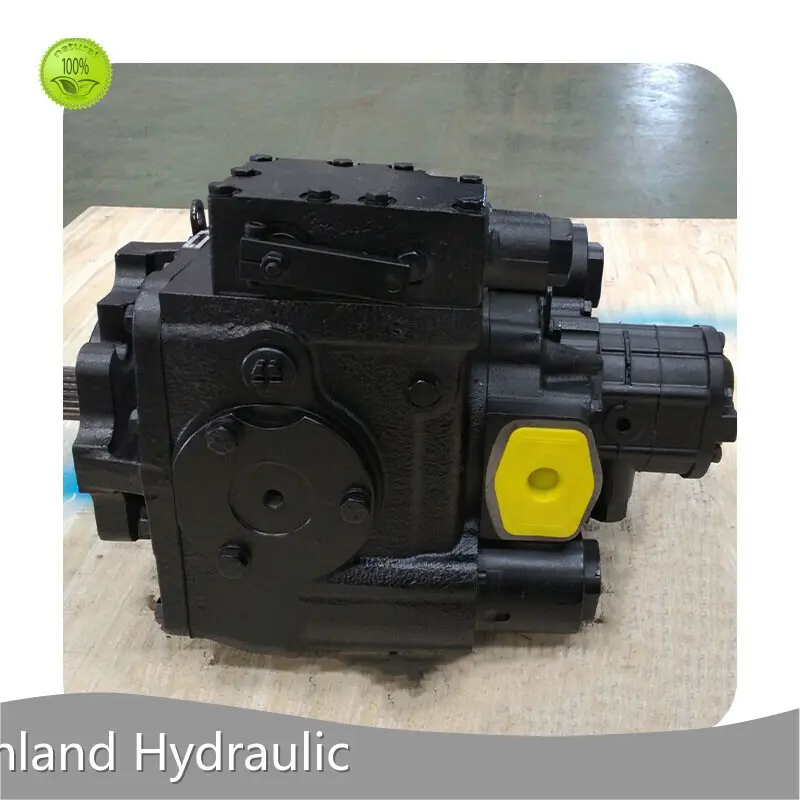

Product Details
Its closed axial piston design, it provides reliable performance and long service life. Its compact size makes it ideal for installations where space is limited.
Product Application
About Us
Shandong Highland Hydraulic Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with nearly 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.
Packing & Delivery
To protect hydrostatic pump, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.
FAQ
Company Advantages
· The source of raw materials: before Highland Hydraulic hydrostatic pump manufacturers comes out, it is processed from high quality raw materials. These materials are sourced from several different places within and out of the region.
· The product is of high quality and reliable performance.
· 'Strictly abide by the contract and deliver promptly' is Shandong Highland Hydraulic Seiko Co., Ltd's consistent principle.
Company Features
· Over the years, Shandong Highland Hydraulic Seiko Co., Ltd has long been committed to the R&D and production of hydrostatic pump manufacturers.
· Our big and wide factory is well-organized inside in a thorough manner. It includes various kinds of advanced machines, which allows us to smoothly finish our production projects.
· Shandong Highland Hydraulic Seiko Co., Ltd has a unique corporate advantage with its hydrostatic pump manufacturers. Inquire online!
Application of the Product
Highland Hydraulic's hydrostatic pump manufacturers is of excellent quality and is widely used in the industry.
Since the establishment, Highland Hydraulic has always been focusing on the R&D and production of Hydraulic pump、Hydraulic motor、Hydraulic test benches. With strong production strength, we can provide customers with personalized solutions according to customers' needs.
Product Specifications
|
Rated |
|
30 |
50 |
70 |
90 |
110 |
130 |
|
|
Maximum displacement |
ml/r |
30 |
50 |
70 |
90 |
110 |
130 |
|
|
Speed |
Maximum continuous operating speed |
r/min |
3500 |
3500 |
3200 |
3000 |
2900 |
2700 |
|
Rated speed |
r/min |
2500 |
||||||
|
Minimum continuous operating speed |
r/min |
500 |
||||||
|
Pressure |
Rated working pressure |
Mpa |
35 |
|||||
|
Maximum working pressure (instantaneous) |
Mpa |
42 |
||||||
|
Continuous working pressure ( Δ P) |
Mpa |
30 |
||||||
|
Allowable shell pressure (absolute) |
Mpa |
Constant0.25，Peak value0.5 |
||||||
|
Torque |
Continuous output torque |
Nm |
162.3 |
252.3 |
342.6 |
432.9 |
535.3 |
632.4 |
|
Maximum output torque |
Nm |
227 |
353 |
480 |
606 |
749 |
885 |
|
|
Power |
Continuous Power |
KW |
41 |
72 |
98 |
128 |
137 |
162 |
|
Maximum power |
KW |
57 |
87 |
105 |
138 |
159 |
188 |
|
|
Temperature |
Allowable temperature of shell |
℃ |
80 |
|||||
|
Maximum operating temperature of fuel tank |
℃ |
70 |
||||||
|
Angle |
Maximum inclination angle of the inclined plate |
° |
± 18 ° |
|||||
|
Weight |
HPV series hydraulic pump Hydraulic oil drainage |
kg |
45 |
46 |
63 |
64 |
87 |
87.5 |
Product Description
The HPV series hydrostatic pump is a reliable and efficient choice for a variety of applications, with a compact design and high power-to-weight ratio providing exceptional torque and speed for industrial machinery and mobile equipment. Built with quality materials and precision engineering, this motor offers long-lasting durability and seamless operation, ensuring unparalleled performance and reliability.
Product Features
* Product design: simple and easy to dismantle, high strength and high pressure resistance, easy to install in series, full range
* Control mode: manual servo, electric proportional servo, hydraulic servo, control valve can be modularized replacement
* pump installation interface design in line with international standards, easy to install and operate
* Commitment to the world's lowest price of the same species
* Can be customized according to customer's demand.

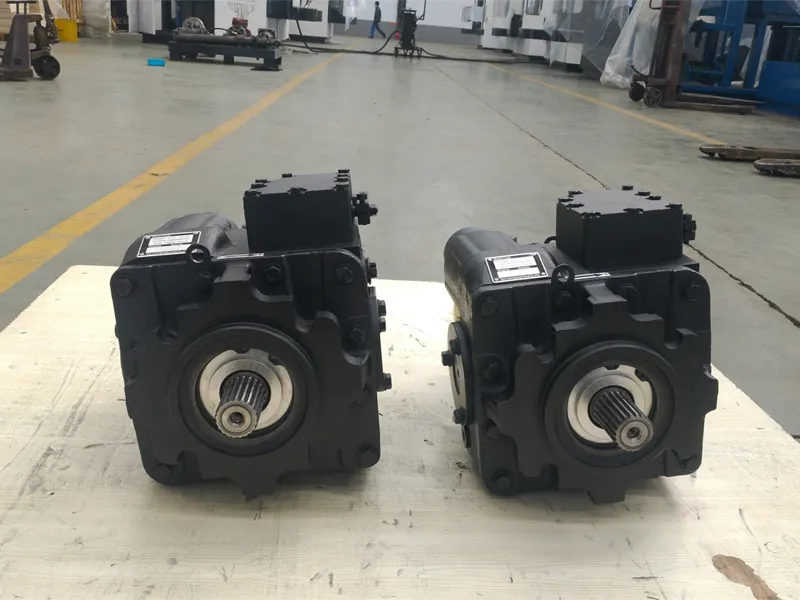

Product Details
Its closed axial piston design, it provides reliable performance and long service life. Its compact size makes it ideal for installations where space is limited.
Packing & Delivery
To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.
