Hydrostatic Pump Manufacturers HIGHLAND Wholesale - Highland Hydraulic

Product details of the hydrostatic pump manufacturers

Product Specification

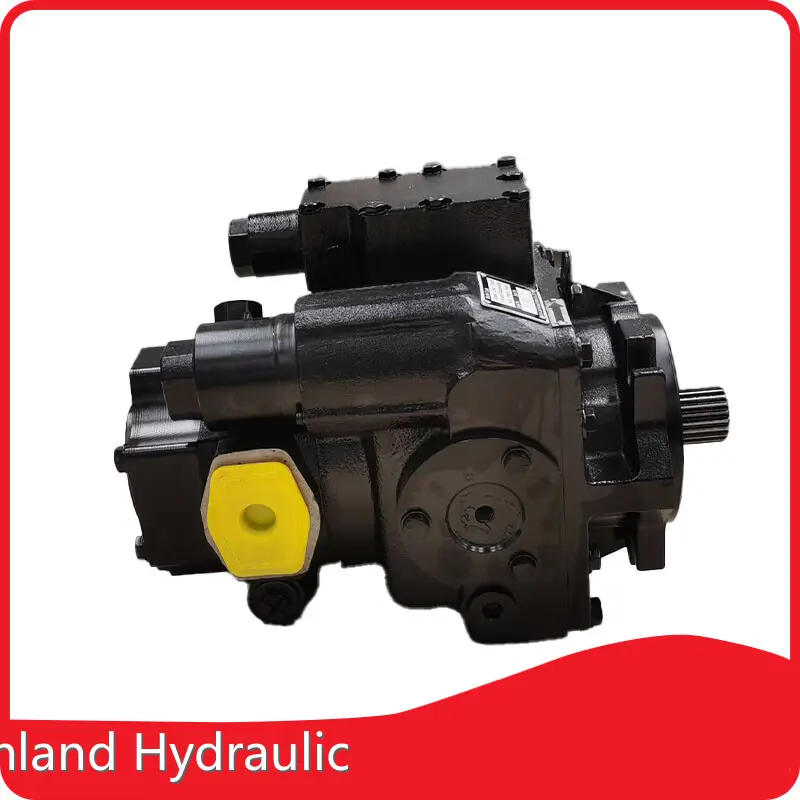

Hydraulic Pump Mode: HPV110

Brand: HIGHLAND

Product Name: Variable Hydraulic Pump

Quick Overview

The raw material of Highland Hydraulic hydrostatic pump manufacturers actively complies with international green specifications. hydrostatic pump manufacturers's quality is stable and reliable. The product has a wide development space with great competitiveness.

Product Introduction

Want to know more product information? We will provide you with detailed pictures and detailed content of hydrostatic pump manufacturers in the following section for your reference.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland high-pressure hydrostatic pump provides reliable hydraulic power for agricultural machinery. Designed to handle variable loads and harsh conditions, it offers precise control, high efficiency, and a long service life. Ideal for tractors, sprayers, and harvesters.

Product Features

• High Pressure Hydrostatic Pump is engineered specifically for agricultural hydraulic applications, offering unmatched performance, reliability, and energy efficiency.

• With the ability to operate under extreme field conditions, hydrostatic pump ensures smooth and accurate control of hydraulic systems in tractors, harvesters, and others.

• It delivers consistent high pressure for improved power transmission and supports a wide range of flow rates to match diverse farming tasks.

Product INTRODUCTION

Agricultural operations demand high-performance hydraulic solutions. This hydrostatic pump delivers the power and precision needed for efficient farming. Designed to withstand demanding environments, it ensures smooth operation and extended equipment life, making it a core component in advanced hydraulic systems.

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

Read More

HPV30(50)

PDF

HPV70(90)

PDF

HPV110(130)

PDF

detail displaY

Hydrostatic Pump

Agriculture Hydraulics

High Pressure Pumps

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of variable piston pump and hydraulic motor, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.

Company Introduction

Shandong Highland Hydraulic Seiko Co., Ltd (Highland Hydraulic) mainly produces and sells Hydraulic pump、Hydraulic motor、Hydraulic test benches. With the aim of 'improving products and services' and the concept of 'sincere cooperation and common development', we are committed to becoming a globally influential enterprise. With a focus on talents cultivation, our company has three technique teams. They are responsible for design, production and consulting and the goal is to provide customers with the best product and service. Highland Hydraulic has an excellent team consisting of talents in R&D, production and management. We could provide practical solutions according to actual needs of different customers.
We provide you with high-quality products and look forward to your inquiry.
