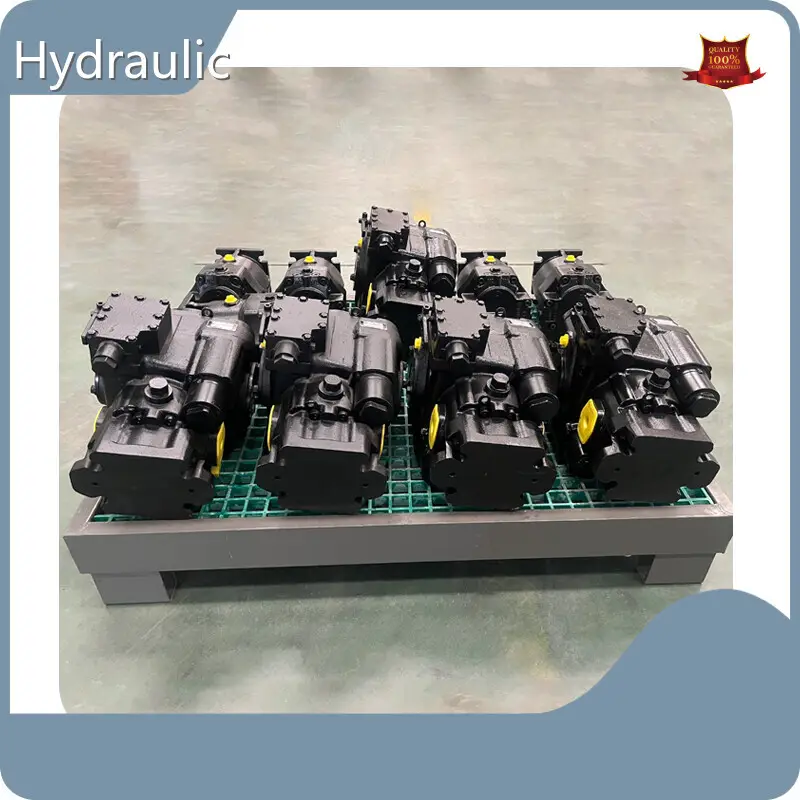

Hydrostatic Pump Manufacturers Heavy-Duty Hydraulic Pump by Highland Hydraulic

Product details of the hydrostatic pump manufacturers

Product Specification

Function: Power components of hydraulic system

Product Name: Heavy-Duty Hydraulic Pump

Working Medium: Hydraulic Oil

Pressure: 42mpa

Product Overview

The modern manufacture technology guarantees the production of Highland Hydraulic hydrostatic pump manufacturers. It has high cost-efficiency, long service life and stable functionality in contrast with low price. Shandong Highland Hydraulic Seiko Co., Ltd has strong capacity and its sales network is throughout the country.

Product Introduction

The hydrostatic pump manufacturers of Highland Hydraulic has the following advantages compared with hydrostatic pump manufacturers in the market.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

HPV110 series variable displacement piston pumps feature sophisticated axial piston configurations that achieve high volumetric and mechanical efficiencies.** With integrated pressure-flow controls and durable wear-resistant materials, these pumps offer reliable operation, precise fluid control, and substantial reductions in energy consumption and maintenance intervals.

Product Features

• High-strength structural design greatly extends the product lifespan.
• Modular control systems facilitate rapid upgrades and replacements.
• Mounting interfaces comply with international standards, simplifying operation.
• Offering the best competitive pricing in the industry to maintain market leadership.

Product INTRODUCTION

HPV110 axial piston pumps deliver unmatched hydraulic precision and durability tailored for demanding industrial tasks. Equipped with robust internal components and optimized swash plate control, these pumps maintain stable pressures, significantly reduce fluid pulsation, and minimize energy losses, enhancing productivity and reducing downtime in critical operations.

Product specification

Rated displacement			30	50	70	90	110	130
	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
	Maximum output torque	Nm	227	353	480	606	749	885
power	Continuous Power	KW	41	72	98	128	137	162
	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70（90）

PDF

HPV110(130)

PDF

detail displaY

HPV130 Pump

Hydrostatic Pump

High Pressure Piston Pump

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

Company Advantages

Shandong Highland Hydraulic Seiko Co., Ltd is one of the backbone enterprises which manufacture hydrostatic pump manufacturers. Technology in Shandong Highland Hydraulic Seiko Co., Ltd keeps advanced with time going on. The kind of finest hydrostatic pump manufacturers and professional service shown in Highland Hydraulic fully manifests the uniqueness of our company culture. Get price!
We are responsible for the production of high-quality products, please contact us to order if in need.
