Product details of the hydrostatic pump manufacturers
Product Specification
Speed Range: 0-1500r/min
Test Element: Closed Pump Test,Low Speed Motor Test
Power: 110KW
Brand: HIGHLAND
Quick Detail
Highland Hydraulic hydrostatic pump manufacturers is known for combining aesthetic functionality and innovation. Strict quality tests give the product an assured quality. This product has gained its good reputation for these attractive features.
Product Description
hydrostatic pump manufacturers produced by Highland Hydraulic stands out among many products in the same category. And the specific advantages are as follows.
PRODUCT PERFORMANCE
Modular hydraulic test bench features industrial-grade hydraulic components and high-precision sensors, with a test pressure range of 0-40MPa (customizable for higher pressures). It delivers ±0.5% flow measurement accuracy and ±1℃ temperature control precision. The system supports multi-channel synchronous data acquisition at 1kHz sampling rate, with real-time pressure-flow characteristic curve display. Equipped with an intelligent PID control system, it enables automatic pressure stabilization and dynamic load testing. With IP65 protection rating and -20℃~60℃ operating temperature range, it ensures reliable performance in harsh industrial environments.
Products Advantages
Our hydraulic test bench provides accurate and reliable testing for hydraulic components, ensuring optimal performance and safety. It offers customizable pressure settings, fast testing times, and easy operation for increased productivity.
Product sPECIFCATIONS
Our experts can help you find the perfect hydraulic testing equipment for your home.
| Pressure | 35mpa、42mpa | |
| Flow Rate | 380L/min 、450L/min、500L/min | |
| Brand | HIGHLAND | |
| Power | 75kw、90kw、110kw、160kw、200kw、250kw、315kw | |
| Test Element | Close pump test, Open pump, Low speed motor, Valve set, Cylinder | |
| Power Drive Mode | Electromotor, Diesel engine drive, Hydraulic mortor, Power recovery | |
| Speed Range | 1000r/min、0-1500r/min、0-2500r/min、0-3500r/min | |
| Display Mode | Locale(Withour Computer)、Computer (long-distance) | |
| Working Medium | Hydraulic oil | |
| Oil Tank Cubage | 1300L、2000L | |
STANDARD TEST BENCH MODELS INCLUDE
Hydraulic Pump Test Bench
Hydraulic Motor Test Bench
Hydraulic Cylinder Test Bench
Valve Factory Test Bench
Transmission & Torque Converter Test Bench
ADDITIONAL SHOWCASES
All what you need to know about us
We are a professional manufacturer with over 20 years of experience in the hydraulic industry. As a trusted enterprise known for process quality and reliability, we pride ourselves on delivering excellence.
We have our own quality control team, equipped with highly skilled technicians and strong development capabilities, supported by a strict quality control system to ensure high standards.
We offer regular supply of individual products with immediate delivery and can customize products according to customer needs. We also provide a one-year warranty on hydraulic test benches.

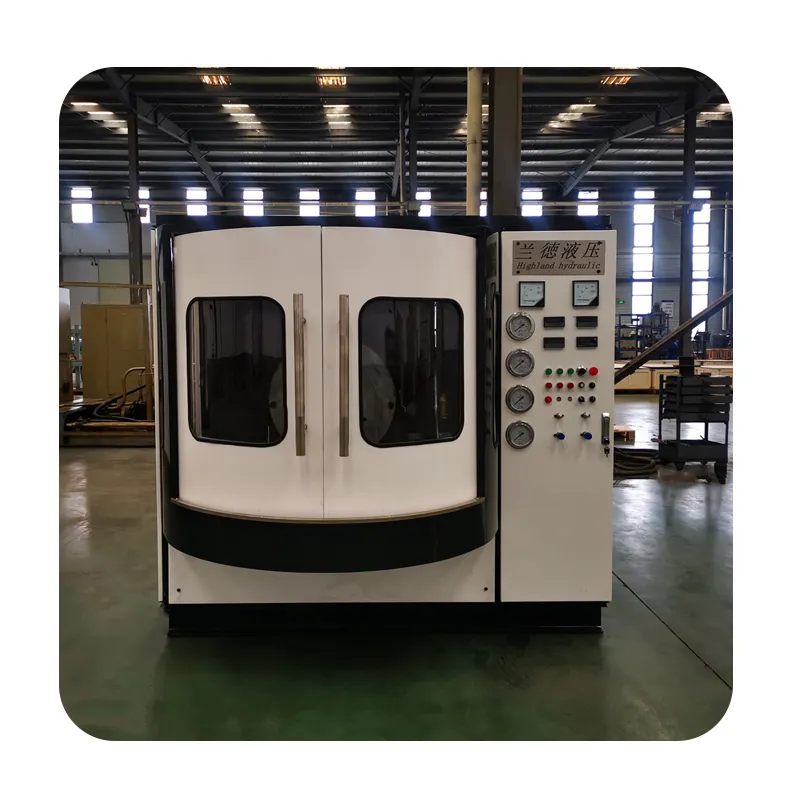

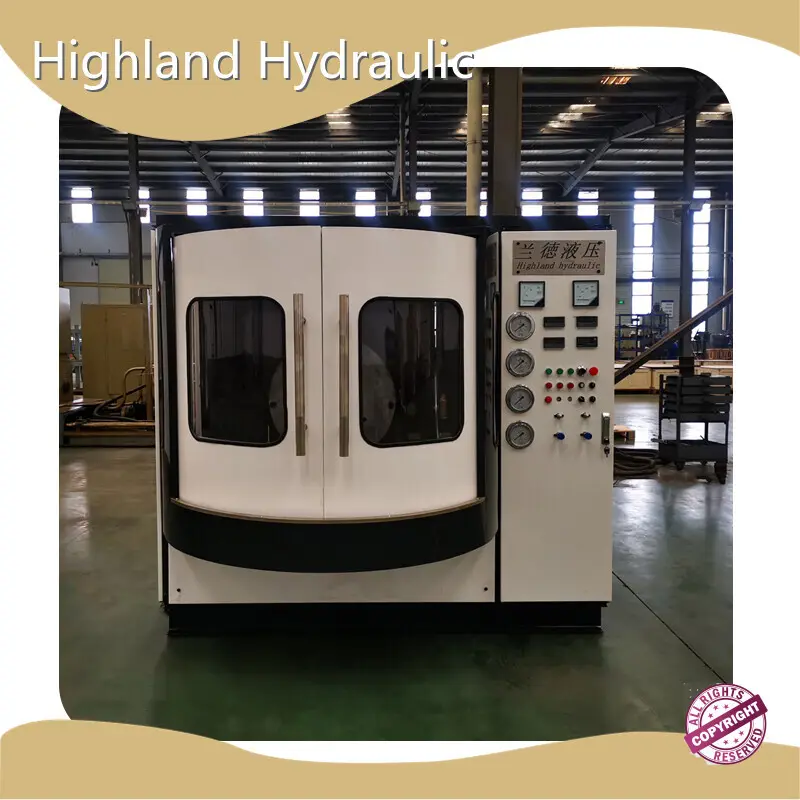

PRODUCT DISPLAYZoom in For Better Detail
Product SPECIFICATIONS
Our experts can help you find the perfect hydraulic testing equipment for your home.
FAQ
PRODUCT APPLICATIONS
Company Introduction
Shandong Highland Hydraulic Seiko Co., Ltd is located in de zhou. We are a comprehensive enterprise integrating production, processing, marketing and trade. And the main business is focused on Hydraulic pump、Hydraulic motor、Hydraulic test benches. Highland Hydraulic provides professional comprehensive services based on customer demand. We provide you with high-quality products and look forward to your inquiry.
