Hydrostatic Pump for Sale High Pressure Axial Piston Pump - - Highland Hydraulic

Company Advantages

· Every detail of Highland Hydraulic hydrostatic pump for sale is delicately designed and carefully manufactured.

· Its prototype is continually tested against a wide variety of key performance criteria before going into production. It is also tested for conformity with a series of international standards.

· Shandong Highland Hydraulic Seiko Co., Ltd provides customers with highly competent and reliable service.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

LPV70 Axial Piston Pumps are engineered for superior energy efficiency and reliable operation under intensive workloads. Their precision-engineered displacement control system ensures optimal performance with reduced energy consumption. Equipped with corrosion-resistant and wear-resistant materials, LPV70 pumps maintain sustained efficiency and exceptional durability, making them a preferred choice for heavy-duty hydraulic operations in construction, mining, and industrial sectors.

Product Features

• -Closed-Loop Hydraulic Circuit:Enables precise fluid control, reduces energy loss, and improves overall hydraulic system responsiveness.
• -Variable Displacement Swash Plate: Offers dynamic flow adjustment capability, optimizing system efficiency under varying load conditions.
• - Integrated Charge Pump: Maintains stable inlet pressure, preventing cavitation and enhancing pump reliability.
• - High-Pressure Shaft Seals: Ensures superior leak-tightness, significantly extending maintenance intervals.
• - Hardened Cylinder Block: Provides exceptional wear resistance under continuous high-pressure operation, ensuring pump longevity.

Product INTRODUCTION

With its compact form factor, the LPV70 integrates effortlessly into space-constrained installations. The pump's streamlined, easily accessible construction simplifies maintenance, enhances reliability, and reduces potential leak points, contributing to overall system longevity.

Product specification

Rated displacement			30	50	70	90	110	130
	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
	Maximum output torque	Nm	227	353	480	606	749	885
power	Continuous Power	KW	41	72	98	128	137	162
	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70（90）

PDF

HPV110(130)

PDF

detail displaY

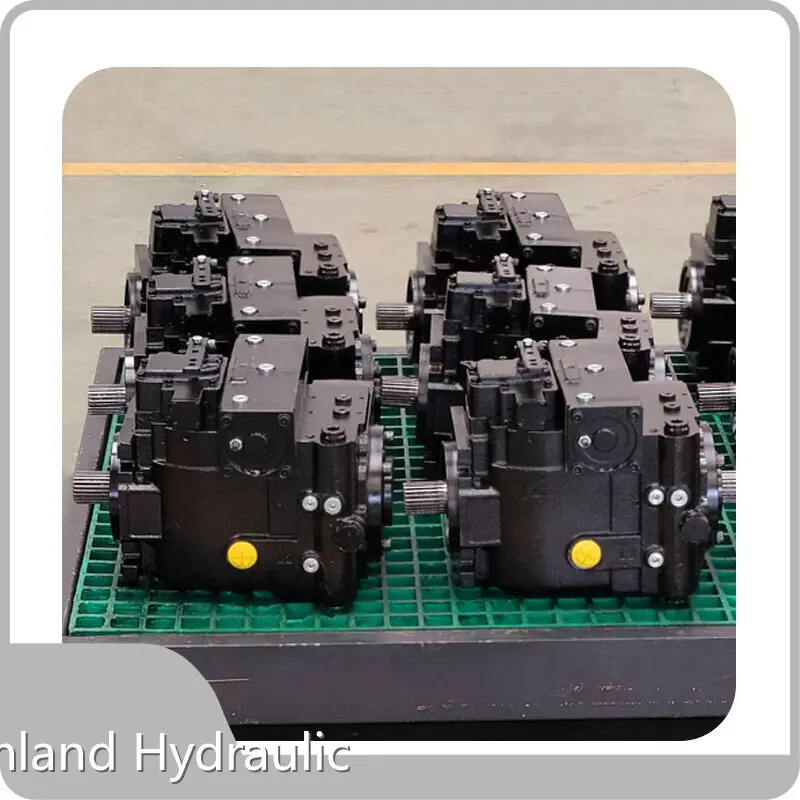

High Pressure Axial Piston Pump

HPV70 Hydrostatic Piston Pump

High Pressure Axial Piston Pump

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

Company Features

· Shandong Highland Hydraulic Seiko Co., Ltd is a team full of vigor, specialized in providing hydrostatic pump for sale.

· Shandong Highland Hydraulic Seiko Co., Ltd's designers have a deep understanding of hydrostatic pump for sale industry. Shandong Highland Hydraulic Seiko Co., Ltd has exceptional innovative manufacturing facilities.

· The Highland Hydraulic brand adheres to the principle of the leading enterprise of the '核心关键词' industry. Inquire online!

Product Details

Highland Hydraulic's hydrostatic pump for sale is of exquisite workmanship, which is reflected in the details.

Product Comparison

Compared with products in the same category, hydrostatic pump for sale we produce is equipped with the following advantages.

Enterprise Advantages

Highland Hydraulic has an elite team with rich industry experience. The team members are professional in scientific research, technology, operation, sales, and services.

Our company has a mature service team. It can provide quality services for customers in the whole process of sales.

Highland Hydraulic's goal is to become a leader in the industry with international influence. To achieve the goal, we make use of our own resource advantages and strengthen the brand building. We also strive to improve core competency.

Highland Hydraulic, built in has been developing in the industry for years. We have accumulated rich industry experience and have gained great achievements.

In addition to major cities in the country, Highland Hydraulic sells Hydraulic pump、Hydraulic motor、Hydraulic test benches to Southeast Asia, South America and some countries and regions.
