Hydrostatic Pump for Sale CE ISO9001 - - Highland Hydraulic

Product details of the hydrostatic pump for sale

Product Specification

Speed: 3200r/min

Hydraulic Pump Mode: LPV70

Displacement: 70ml/r

Product Name: Axial Piston Pump

Quick Detail

Different hydrostatic pump for sale material levels are available to satisfy different customers. Its performance is all based on our industry-leading technology. With the help of professionals, it is provided in diverse specifications.

Product Description

Compared with similar products, Highland Hydraulic's hydrostatic pump for sale has the following advantages.

Product Description

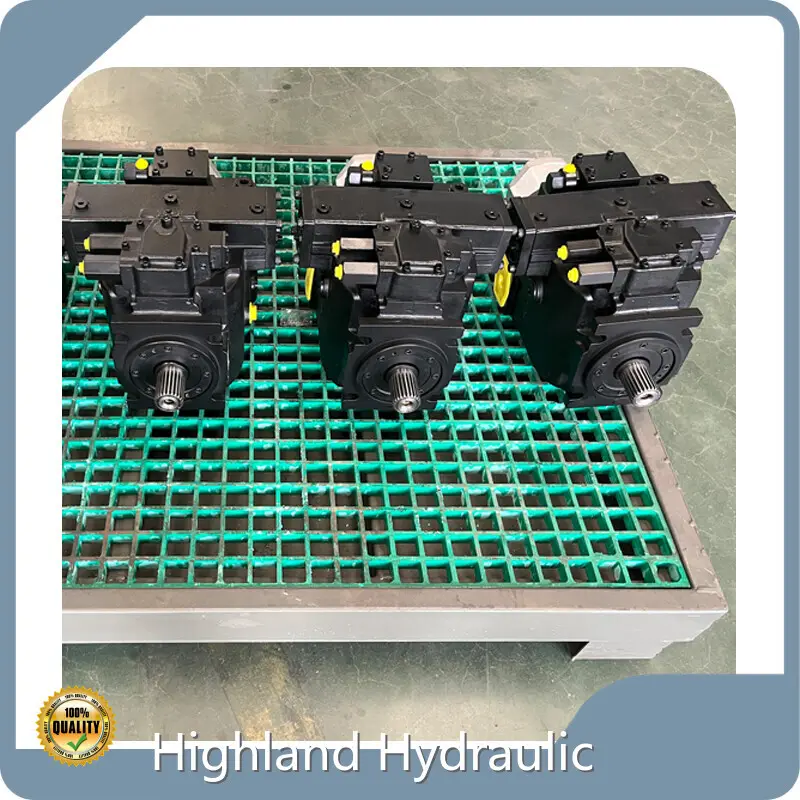

Designed for versatility and ease of maintenance, the LPV70 Axial Piston Pump ensures dependable hydraulic power tailored to specific operational demands. Its modular design facilitates simplified servicing and quick repairs, significantly reducing downtime. Engineered for durability and consistent efficiency in harsh working environments, the LPV70 is an optimal hydraulic solution for construction equipment, mining machinery, and industrial applications.

Product Specifications

Rated displacement			30	50	70	90	110	130	160	180	200
	Maximum displacement	ml/r	30	50	70	90	110	130	160	180	200
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700	2400	2400	2400
	Rated speed	r/min	2500						2200
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4	776	875	972
	Maximum output torque	Nm	227	353	480	606	749	885	1000	1098	1200
Power	Continuous Power	KW	41	72	98	128	137	162	191	224	279
	Maximum power	KW	57	87	105	138	159	188	292	307	318
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	LPV series hydraulic pump Hydraulic oil drainage	kg	44	45	62.5	63.5	71	96	98	140	144

Read More

Download FIle

PDF

Download FIle

LPV30（50）

PDF

LPV70（90）

PDF

LPV110

PDF

LPV130（160）

PDF

LPV180（200）

PDF

HIGHLAND

Products Advantages

LPV series closed axial piston motor offers high efficiency, compact design, and superior performance, making it an ideal choice for a wide range of hydraulic applications.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Details

Its closed axial piston design, it provides reliable performance and long service life. Its compact size makes it ideal for installations where space is limited.

HMF30（50）-1

HMF30（50）-2

HMF70（90、110、130）-1

Product Features

Designed for adaptability, the LPV70 pump features versatile mounting options and compact dimensions, allowing seamless integration into a wide range of agricultural hydraulic systems, streamlining installation, and saving space.

Product Application

The PV series closed axial piston motor is perfect for applications requiring high efficiency and smooth operation, such as construction equipment and industrial machinery.

Cotton picker

Machine

harvester

Cane Grabbing Machine

Company Introduction

Shandong Highland Hydraulic Seiko Co., Ltd is a company in the industry. We have a wide range of business, varying from scientific research, production to trade and service and our key product is Hydraulic pump、Hydraulic motor、Hydraulic test benches. Highland Hydraulic strives to improve the after-sales service system. We try our best to provide customers with the best quality service to pay back the love from the community. We always insist on the production of high-quality products. Welcome customers with needs to negotiate with us!
