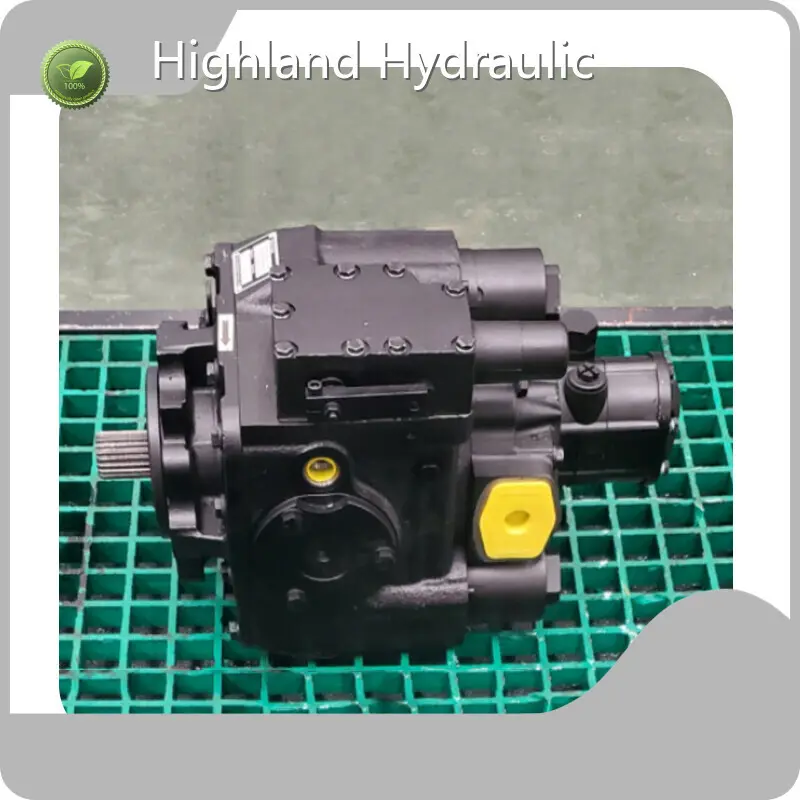

Hydrostatic Pump 42mpa - - Highland Hydraulic

Product details of the hydrostatic pump

Product Specification

Pressure: 42mpa

Brand: HIGHLAND

Hydraulic Pump Mode: PV110

Product Information

The design of Highland Hydraulic hydrostatic pump combines aesthetics and functionality. The product is of top quality and has reliable performance at competitive prices. Under strict quality tests, hydrostatic pump is of high quality when arriving to customers.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

PV110 hydraulic piston pump is specifically designed for transit mixers, providing high efficiency and durability. It ensures smooth and consistent hydraulic power, optimizing mixing performance while minimizing maintenance. With its advanced pressure control system, it enhances fuel efficiency and extends the lifespan of transit mixer equipment.

Product Features

PV110 hydraulic piston pump is a high-performance solution for transit mixers, providing precise hydraulic control and efficient power transmission.

Designed for durability, it withstands heavy workloads and ensures smooth mixing operations.

Built with high-quality materials, the PV110 offers excellent wear resistance, extending its service life and minimizing maintenance costs.

Product INTRODUCTION

Built for transit mixers, PV110 hydraulic piston pump delivers superior performance, durability, and efficiency. Its robust design ensures smooth hydraulic operation, optimizing concrete mixing and transportation. With a focus on energy savings and reduced maintenance, this pump is an ideal choice for heavy-duty applications in the construction industry.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Button

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

PV110 Hydraulic Piston Pump

Hydraulic Pump For Transit Mixer

Hydraulic Piston Pump

Product Application

6-12 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

About Us

Shandong Highland Hydraulic Seiko Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with more than 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.

Packing & Delivery

To protect hydrostatic pump, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

Company Feature

• Highland Hydraulic's Hydraulic pump、Hydraulic motor、Hydraulic test benches are reasonably-priced and quality-reliable. They enjoy a high market share in the international market.
• Founded in Highland Hydraulic has a development history of years. We receive trust from numerous customers and enjoy a good reputation and an excellent corporate image.
• Our high cost performance, standardized market operation and good after-sales service have been unanimously recognized by our customers and peers.
• Highland Hydraulic has a group of senior research and development teams and advanced modern production equipment, which provides a strong guarantee for rapid development.
• Highland Hydraulic's location enjoys the advantageous geographic condition and all-sided traffic unimpeded access. And it is convenient for the transportation of various products, so we can ensure that the source of goods would be supplied in time.
Highland Hydraulic's Hydraulic pump、Hydraulic motor、Hydraulic test benches are of reliable quality and affordable price. If you have any interest in our products, feel free to call us.
