Closed loop hydraulic pump/hydraulic motor manufacturer & hydraulic solutions provider - Highland Hydraulic

Hydrostatic Motors and Pumps T/T Wholesale - Highland Hydraulic 1

Hydrostatic Motors and Pumps T/T Wholesale - Highland Hydraulic 2

Hydrostatic Motors and Pumps T/T Wholesale - Highland Hydraulic 3

Hydrostatic Motors and Pumps T/T Wholesale - Highland Hydraulic 4

Hydrostatic Motors and Pumps T/T Wholesale - Highland Hydraulic 5

Hydrostatic Motors and Pumps T/T Wholesale - Highland Hydraulic 6

Hydrostatic Motors and Pumps T/T Wholesale - Highland Hydraulic 7

Hydrostatic Motors and Pumps T/T Wholesale - Highland Hydraulic

Packaging Details:

Plywood case

Delivery Time:

30-60 work days

Payment Terms:

T/T, Western Union

Inquiry

Application

Harvesting machinery

Material

Cast Iron

Product details of the hydrostatic motors and pumps

Product Specification

Material: Cast Iron

Application: Harvesting machinery

Product Introduction

Made of high-grade raw materials, Highland Hydraulic hydrostatic motors and pumps is highly applauded among our clients. With the implementation of the quality inspection system, all defects of the products are eliminated completely. Being a leading hydrostatic motors and pumps manufacturer, it is necessary to provide the professional service for customers.

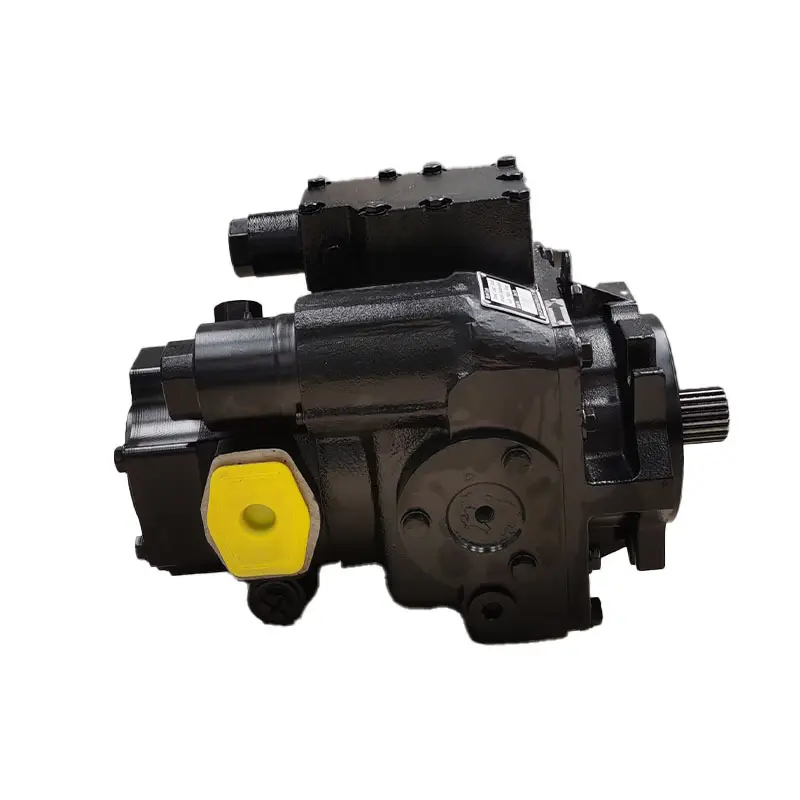

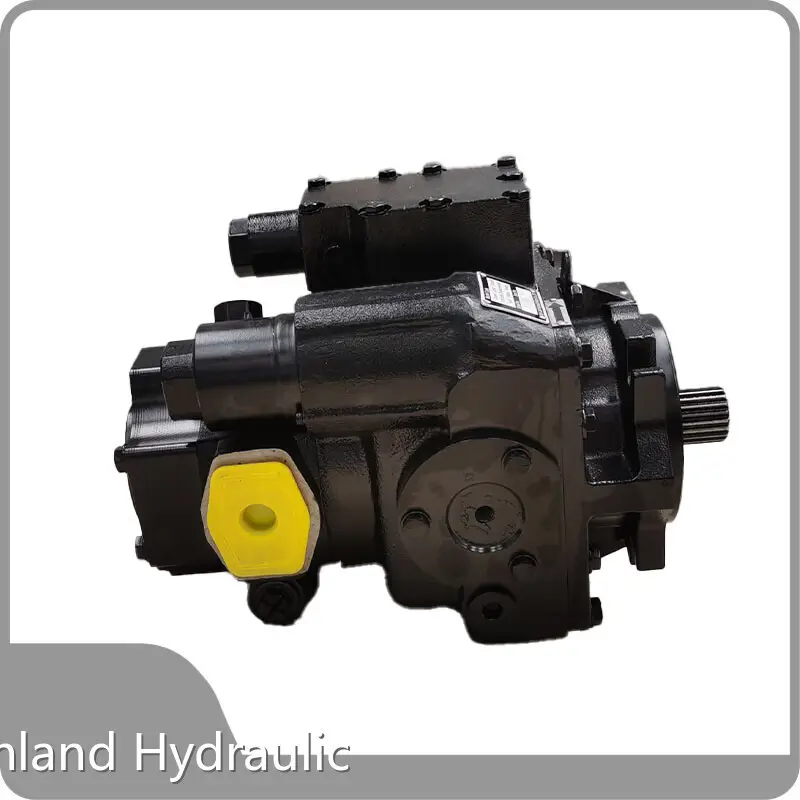

High Pressure Hydrostatic Pumps For

Agriculture Hydraulics

Highland rugged, efficient hydrostatic pump designed for agricultural hydraulics, offering high pressure,

precision control, and reliability for modern farming machinery.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland high-pressure hydrostatic pump provides reliable hydraulic power for agricultural machinery. Designed to handle variable loads and harsh conditions, it offers precise control, high efficiency, and a long service life. Ideal for tractors, sprayers, and harvesters.

Product Features

High Pressure Hydrostatic Pump is engineered specifically for agricultural hydraulic applications, offering unmatched performance, reliability, and energy efficiency.
With the ability to operate under extreme field conditions, hydrostatic pump ensures smooth and accurate control of hydraulic systems in tractors, harvesters, and others.
It delivers consistent high pressure for improved power transmission and supports a wide range of flow rates to match diverse farming tasks.

Product INTRODUCTION

Agricultural operations demand high-performance hydraulic solutions. This hydrostatic pump delivers the power and precision needed for efficient farming. Designed to withstand demanding environments, it ensures smooth operation and extended equipment life, making it a core component in advanced hydraulic systems.

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
Torque	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
Power	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70(90)

PDF

HPV110(130)

PDF

detail displaY

Hydrostatic Pump

Agriculture Hydraulics

High Pressure Pumps

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of variable piston pump and hydraulic motor, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.

Company Feature

• At the moment, our company's sales network has spread all over the country's major cities and regions. In the future, we will strive to open up a broader overseas market.
• Our company has a management team with modern operation idea. Meanwhile, we introduce a large number of experienced and skilled R&D talents. They both provide a strong foundation for manufacturing quality products.
• Highland Hydraulic's initial intention is to provide service that can bring customers comfortable and secure experience.
Highland Hydraulic provides customization. Our free samples are waiting for you!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
