HIGHLAND MF SERIES

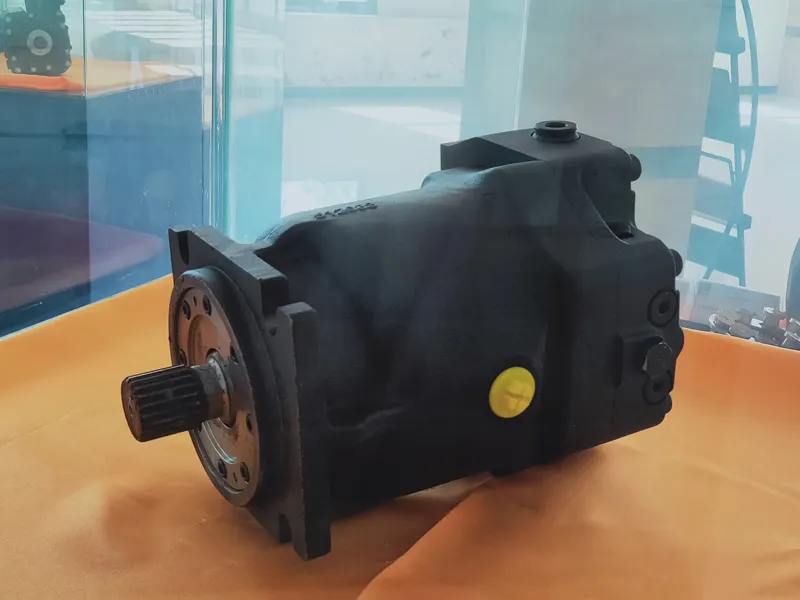

Closed Circuit Axial Piston Motor Fixed displacement hydraulic motor for closed loop operation
Products Advantages
MF series closed circuit axial piston motor is built to deliver a reliable, high-performance solution for your closed-circuit systems.
Product Application
MF series closed axial piston motor is perfect for heavy-duty industrial applications, such as construction machinery and mining equipment. Its high efficiency and reliable performance make it the ideal choice for demanding working environments.
Product Description
- Axial piston motors adopting fixed displacement inclined disc structures are particularly suited to closed-loop hydrostatic transmission systems, providing consistent and dependable performance under rigorous conditions.
- The speed at the motor output shaft accurately matches the input hydraulic flow rate, delivering predictable and controllable performance.
- Torque output varies linearly with the pressure differential across the motor’s hydraulic circuit, allowing for optimal performance and reliability.
MAIN FEATURES
- Through axis plunger pump
- Hydrostatic transmission device
- Manual servo and hydraulic variable control mode
Product Specifications
|
Rated displacement |
MF Series Hydraulic motor model |
20 |
22 |
23 |
110 |
|
|
Maximum displacement |
ml/r |
33.3 |
69.8 |
89 |
110.8 |
|
|
Speed |
Maximum continuous operating speed (Full load condition) |
r/min |
3500 |
3200 |
3000 |
3000 |
|
Rated speed |
r/min |
2500 |
||||
|
Minimum continuous operating speed |
r/min |
500 |
||||
|
Pressure |
Rated working pressure |
Mpa |
35 |
|||
|
Maximum working pressure (instantaneous) |
Mpa |
42 |
||||
|
Continuous working pressure ( Δ P) |
Mpa |
30 |
||||
|
Allowable shell pressure (absolute) |
Mpa |
Constant0.25，Peak value0.5 |
||||
|
Torque |
Continuous output torque (Under continuous work pressure) |
Nm |
143 |
334 |
430 |
621 |
|
Maximum output torque |
Nm |
167 |
390 |
502 |
725 |
|
|
Power |
Maximum power |
KW |
56 |
131 |
157 |
212 |
|
Temperature |
Allowable temperature of shell |
℃ |
-40 to 50 |
|||
|
Maximum operating temperature of fuel tank |
℃ |
80 |
||||
|
Weight |
MF series hydraulic motor Hydraulic oil drainage |
kg |
34 |
42 |
49 |
49 |
mf series related hydraulic components
About Us
Shandong Highland Hydraulic Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with nearly 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.

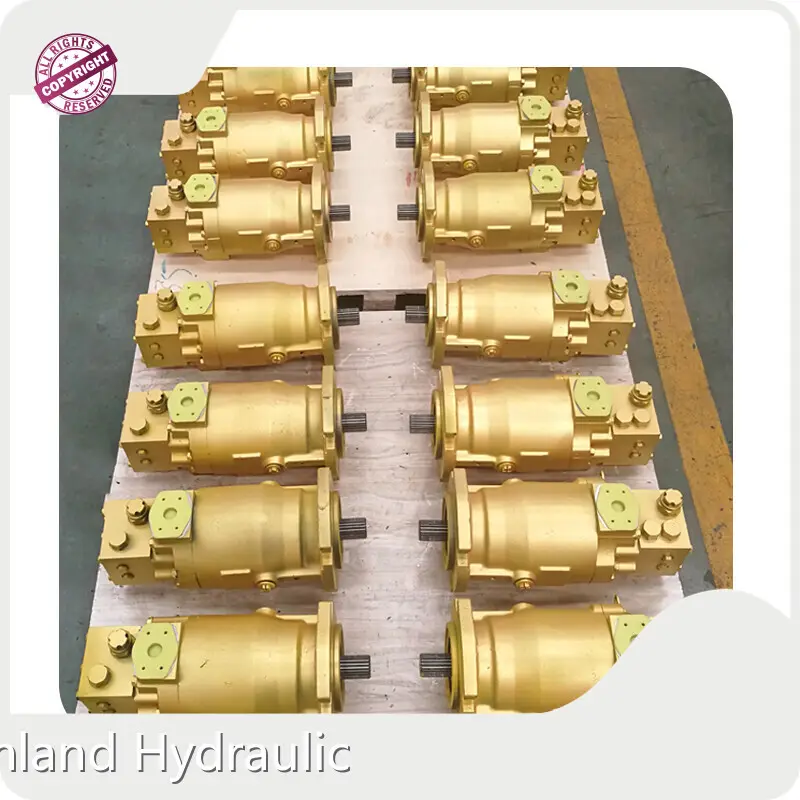

Packing & Delivery
To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.
FAQ
Company Advantages
· Highland Hydraulic hydrostatic motors and pumps has a wide selection of design styles, enabling to fulfill the needs of the most demanding clients.
· By using hydrostatic motors and pumps we produced, some troubles can be avoided.
· The product has different specifications and is highly demanded by customers due to its high economic return.
Company Features
· In hydrostatic motors and pumps business, Shandong Highland Hydraulic Seiko Co., Ltd has significant advantages.
· Our factory is placed in a satisfactory location. It is easily accessible to the airports and ports within an hour. This helps us minimize production and distribution costs for our company.
· We make efforts to protect our environments. During our production, we reduce CO2 emissions and achieve energy conservation by introducing advanced manufacturing facilities.
Application of the Product
The hydrostatic motors and pumps developed by Highland Hydraulic is widely used in various fields.
While providing excellent products, Highland Hydraulic is dedicated to providing personalized solutions for customers according to their needs and actual situations.
Product Specifications
|
Rated |
|
20 |
22 |
23 |
110 |
|
|
Maximum displacement |
ml/r |
33.3 |
69.8 |
89 |
110.8 |
|
|
Speed |
Maximum continuous operating speed (Full load condition) |
r/min |
3500 |
3200 |
3000 |
3000 |
|
Rated speed |
r/min |
2500 |
||||
|
Minimum continuous operating speed |
r/min |
500 |
||||
|
Pressure |
Rated working pressure |
Mpa |
35 |
|||
|
Maximum working pressure (instantaneous) |
Mpa |
42 |
||||
|
Continuous working pressure ( Δ P) |
Mpa |
30 |
||||
|
Allowable shell pressure (absolute) |
Mpa |
Constant0.25，Peak value0.5 |
||||
|
Torque |
Continuous output torque |
Nm |
143 |
334 |
430 |
621 |
|
Maximum output torque |
Nm |
167 |
390 |
502 |
725 |
|
|
Power |
Maximum power |
KW |
56 |
131 |
157 |
212 |
|
Temperature |
Allowable temperature of shell |
℃ |
-40 to 50 |
|||
|
Maximum operating temperature of fuel tank |
℃ |
80 |
||||
|
Weight |
MF series hydraulic motor Hydraulic oil drainage |
kg |
34 |
42 |
49 |
49 |
Product Description
Experience the power of precision engineering with our MF series closed axial piston motor. Built for durability and efficiency, this motor delivers reliable performance in a compact design. Ideal for a range of industrial applications.
Product Features
* Product design: simple and easy to dismantle, high strength and high pressure resistance, easy to install in series, full range
* Control mode: manual servo, electric proportional servo, hydraulic servo, control valve can be modularized replacement
* pump installation interface design in line with international standards, easy to install and operate
* Commitment to the world's lowest prices for new products of the same variety
* Can be customized according to customer's needs
Product Details
Its closed axial piston design, it provides reliable performance and long service life. Its compact size makes it ideal for installations where space is limited.

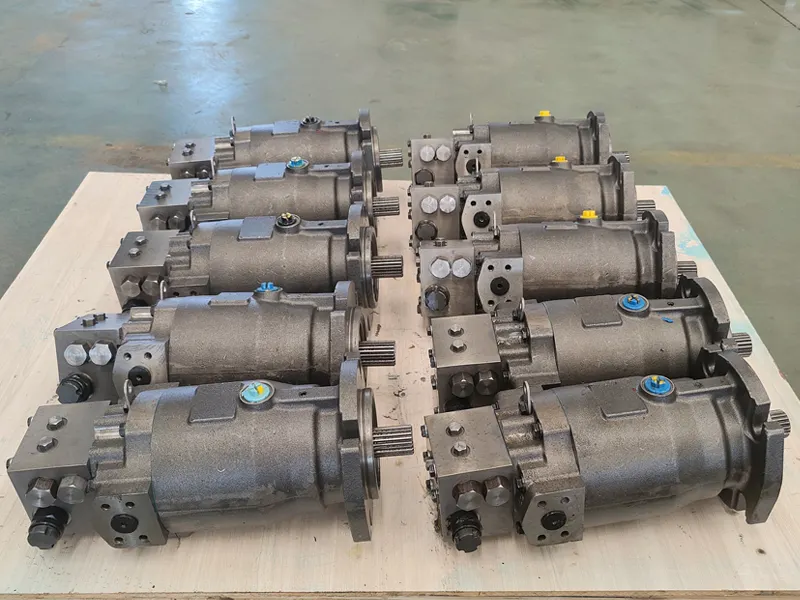

Packing & Delivery
To protect the goods, we pack the goods at least three layers. The first layer is film, the second is carton or woven bag, the third is carton or plywood case. Glass: plywood box, Other components: covered by bubble firm bag,packing in carton.
FAQ
