Hydrostatic Motors and Pumps 42mpa - - Highland Hydraulic

Product details of the hydrostatic motors and pumps

Product Specification

Working Medium: Hydraulic Oil

Hydraulic Pump Mode: PV23

Pressure: 42mpa

Application: Walking machinery

Characteristic: High efficiency

Product Overview

Over the years, complex designs that might not be attempted by other firms, Shandong Highland Hydraulic Seiko Co., Ltd has been created and verified using hydrostatic motors and pumps. This offered Highland Hydraulic brand product is with stable performance. Highland Hydraulic's hydrostatic motors and pumps is widely used in multiple industries and fields. Shandong Highland Hydraulic Seiko Co., Ltd has now come into the competitive phase of integrated strength after long time of rapid development in hydrostatic motors and pumps field.

Product Information

With a focus on product's quality, our company strives for excellent quality in the process of producing hydrostatic motors and pumps.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

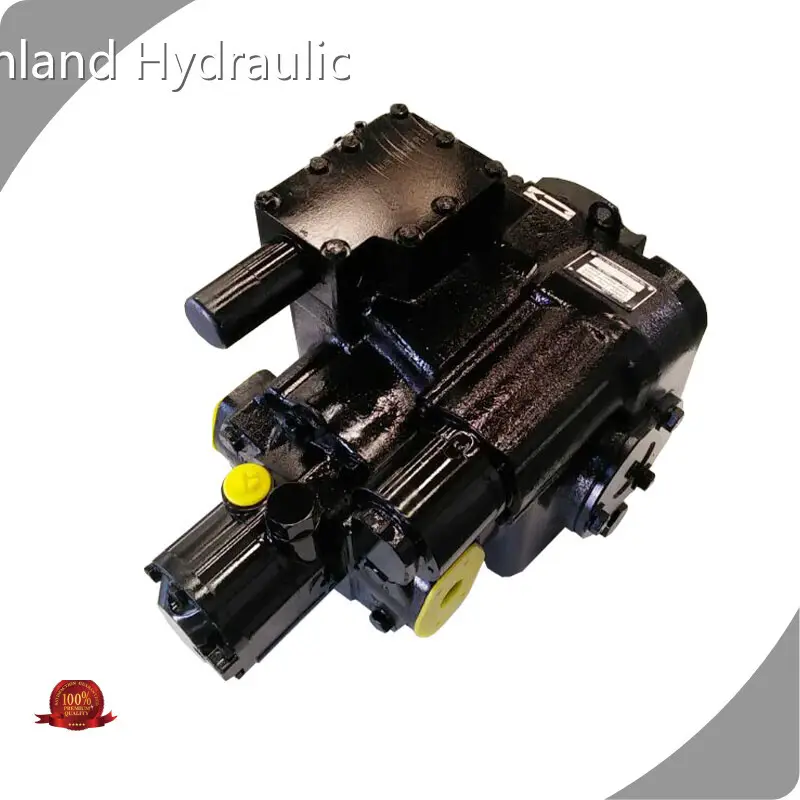

High-pressure hydraulic plunger pump is engineered for demanding industry applications. It delivers excellent pressure stability, and long service life. Ideal for use in mining, oil & gas, and manufacturing, industry applications, it withstands extreme conditions while ensuring efficient and precise performance.

Product Features

• High Pressure Hydraulic Plunger Pump is built to meet the rigorous requirements of modern industrial systems.

• It offers exceptional durability, high-pressure performance, and precise fluid control for operations in mining, petrochemical, power generation, and more.

• Highland hydraulic pump's high volumetric efficiency, stable flow characteristics, and compatibility with various fluids make it a versatile choice for both new installations and system upgrades.

Product INTRODUCTION

Designed for high-demand operations, Highland hydraulic plunger pump combines robust construction with high-pressure capability. Its compact design, corrosion-resistant components, and efficient energy use make it suitable for a wide range of industrial systems requiring continuous, reliable performance.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Read More

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

Hydraulic Plunger Pump

Industry Plunger Pump

High Pressure Plunger Pump

Product Application

6-12 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine
