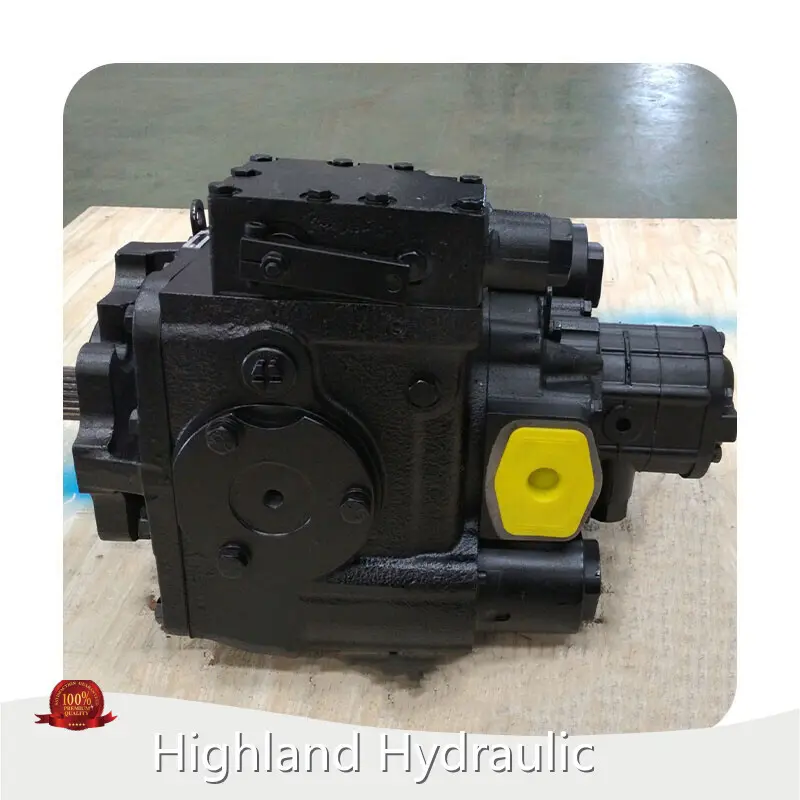

Hydrostatic Motor PV23 Wholesale - Highland Hydraulic

Product details of the hydrostatic motor

Product Specification

Hydraulic Pump Mode: PV23

Material: Cast Iron

Displacement: 90ml/r

Type: Axial piston pump

Quick Overview

The improved design of Highland Hydraulic hydrostatic motor reduces quality problems. This product is designed for both general and specialist use. Highland Hydraulic's hydrostatic motor is widely used in the industry and is widely recognized by customers. The product has a wide development space with great competitiveness.

Product Information

The details of hydrostatic motor are shown for you at below.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Button

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

Product Description

 With simplified installation and easy maintenance features,PV23 piston pump reduces downtime, supporting uninterrupted operation and consistent hydraulic performance.

Product Features

• Compact and Modular Design:Facilitates easy installation and integration into confined spaces common in mixer truck configurations.
• Rapid Response Control:Fast-acting swashplate adjustments provide instantaneous adaptation to fluctuating load demands.
• High Volumetric Efficiency:Precision machining reduces internal leakage, ensuring stable hydraulic output under high pressures.

Product INTRODUCTION

Hydraulic piston pump PV23 is a robust, reliable solution designed specifically for cement mixers, delivering stable pressure control and precise fluid flow for superior mixing performance.

detail displaY

Axial Piston Pump

Axial Flow Piston Pump

HPV90 Piston Pump

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of the PV23 variable piston pump, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.
