Packaging Details:

Plywood case

Inquiry

more products

Hydrostatic Pump

Hydrostatic Motor

Hydraulic Test Bench

Portable Hydraulic Tester

Send your inquiry

Application

Walking machinery

Characteristic

High efficiency

Speed

3500r/min

Material

Cast Iron

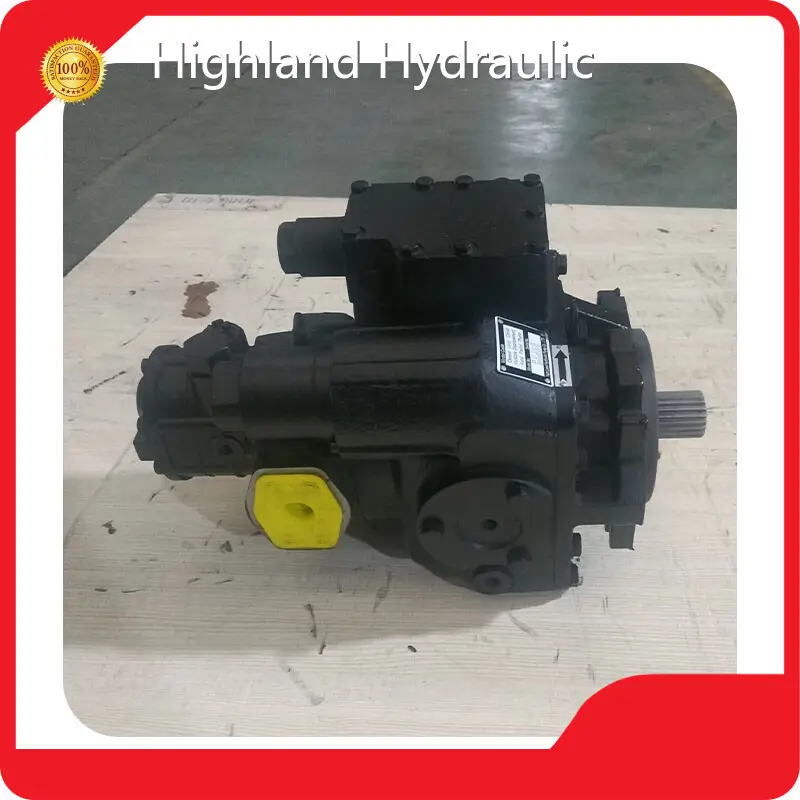

Product details of the hydrostatic motor

Product Specification

Speed: 3500r/min

Material: Cast Iron

Application: Walking machinery

Characteristic: High efficiency

Product Information

Highland Hydraulic hydrostatic motor is made of well-selected materials and has a innovative and aesthetic design. Practice has shown that the products developed by Shandong Highland Hydraulic Seiko Co., Ltd have played a significant role in hydrostatic motor field. Shandong Highland Hydraulic Seiko Co., Ltd selects optimal plan for our customers during pre-sale.

Best Selling Hydraulic Piston Pump PV23 For Road Roller

Hydraulic piston pump PV23 is designed for harvesting machines. Offering high efficiency, durability, and precise control.

Its compact, robust design ensures reliable performance in demanding agricultural conditions.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Designed for rugged durability, PV23 pump easily withstands high-pressure conditions typical in concrete mixing applications, providing smooth operation and extended service life.

Product Features

Factory-direct pricing ensures cost-effective operation.
Compact, robust design built to endure harsh jobsite conditions.
Advanced hydraulic design reduces noise, enhancing operator comfort.
Consistent high-pressure performance boosts productivity and job efficiency.

Product INTRODUCTION

Hydraulic piston pump PV23 is a robust, reliable solution designed specifically for cement mixers, delivering stable pressure control and precise fluid flow for superior mixing performance.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
Rated displacement	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
Torque	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
Power	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Button

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

PV22 Variable Displacement Piston Pumps

Variable Displacement Piston Pump

PV22 Hydraulic Piston Pump

Product Application

6-12 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

About Us

Shandong Highland Hydraulic Seiko Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with more than 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.

Packing & Delivery

To protect hydrostatic pump, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.

What is the supply ability for the Hydraulic Piston Pumps?

The supply ability for the Hydraulic Piston Pumps is 200 Sets per month.

Company Feature

• In accordance with the standards of modern enterprise management system, our company has established a complete internal management system and organizational structure suitable for our characteristics. We also have a high-quality development research team composed of industry experts, which provides conditions for the development of different products.
• Founded in Highland Hydraulic has been persisting in product manufacture for years. Now we have rich industry experience and mature production technology.
• Our company's product sales network is spreading to the whole country. Besides, it is also radiating to Europe, Africa, America and other countries and regions.
• Highland Hydraulic has a professional customer service team to provide quality and considerate services for customers.
• Highland Hydraulic is located at the intersection of different highways with great geographic position and easy traffic. Based on that, the distribution of supply is convenient and it is the ideal place for the sustainable development of the enterprise.
Highland Hydraulic is a professional manufacturer of Hydraulic pump、Hydraulic motor、Hydraulic test benches. Your inquiry and cooperation are welcome.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
