Hydrostatic Motor Hydraulic Oil Wholesale - Highland Hydraulic
Company Advantages
· Every part of Highland Hydraulic hydrostatic motor is individually checked before assembly.
· An experienced quality control team inspects the quality of this product.
· Shandong Highland Hydraulic Seiko Co., Ltd offers complete and advanced knowledge to support customers' different requirements.

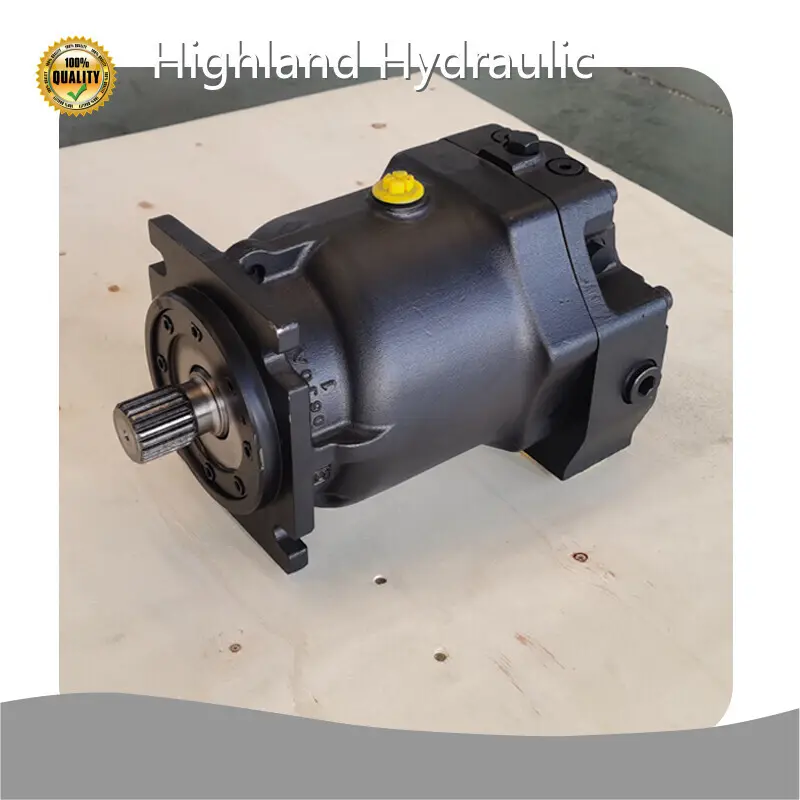

HIGHLAND HMF110 HYDRAULIC MOTOR
Fixed displacement hydraulic motor for closed loop operation
Products Advantages
HMF110 axial piston motor is widely used in heavy-duty fields such as engineering machinery, ship propulsion,
mining equipment, etc. It has the characteristics of strong reliability and long service life.
Product Application
HMF110 hydraulic piston motor is widely used in hydraulic devices of heavy machinery, tractors, agricultural machinery, and construction machinery.
PRODUCT SPECIFICATIONS
|
Rated displacement |
|
30 |
50 |
70 |
90 |
110 |
130 |
|
|
Maximum displacement |
ml/r |
30 |
50 |
70 |
90 |
110 |
130 |
|
|
Speed |
Maximum continuous operating speed (Full load condition) |
r/min |
3200 |
3200 |
3200 |
3000 |
2700 |
2700 |
|
Maximum operating speed (instantaneous) |
r/min |
3800 |
3500 |
3200 |
3200 |
2900 |
2900 |
|
|
Rated speed |
r/min |
2500 |
||||||
|
Minimum continuous operating speed |
r/min |
500 |
||||||
|
Pressure |
Rated working pressure |
Mpa |
35 |
|||||
|
Maximum working pressure (instantaneous) |
Mpa |
38 |
||||||
|
Continuous working pressure ( Δ P) |
Mpa |
30 |
||||||
|
Allowable shell pressure (absolute) |
Mpa |
Constant 0.25, Peak value0.5 |
||||||
|
Torque |
Continuous output torque (Under continuous work pressure) |
Nm |
143 |
248 |
334 |
430 |
526 |
621 |
|
Maximum output torque |
Nm |
167 |
278 |
390 |
502 |
613 |
725 |
|
|
Power |
Maximum power |
KW |
56 |
93 |
131 |
157 |
180 |
212 |
|
Temperature |
Allowable temperature of shell |
℃ |
-40 to 50 |
|||||
|
Maximum operating temperature of fuel tank |
℃ |
80 |
||||||
|
Weight |
HMF series hydraulic motor Hydraulic oil drainage |
kg |
22 |
23 |
33 |
34 |
36 |
38 |
KEY PARAMETERS
- Displacement (ml/r): 30, 50, 70, 90, 110, 130
- Rated pressure (Mpa): 35
- Max. pressure (Mpa): 38
Typical Applications
- Hydraulic Drive Forklifts
- Skid Steer Loaders
- Agricultural and Forestry Machinery
- Any closed-circuit drive machinery
Hmf110 related hydraulic components
HYDRAULIC PUMP & MOTOR MANUFACTURER
Shandong Highland Hydraulic Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with nearly 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.
Packing & Delivery
To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.
FAQ
Company Features
· With solid strength and economic foundation, Highland Hydraulic now leads the hydrostatic motor industry.
· Shandong Highland Hydraulic Seiko Co., Ltd owns the most comprehensive research strength.
· To create a sustainable society, we have developed and implemented a strategy to guide our production activities to greener and more environmental-friendly way.
Product Details
Compared with ordinary products, our hydrostatic motor has the specific differences as follows.
