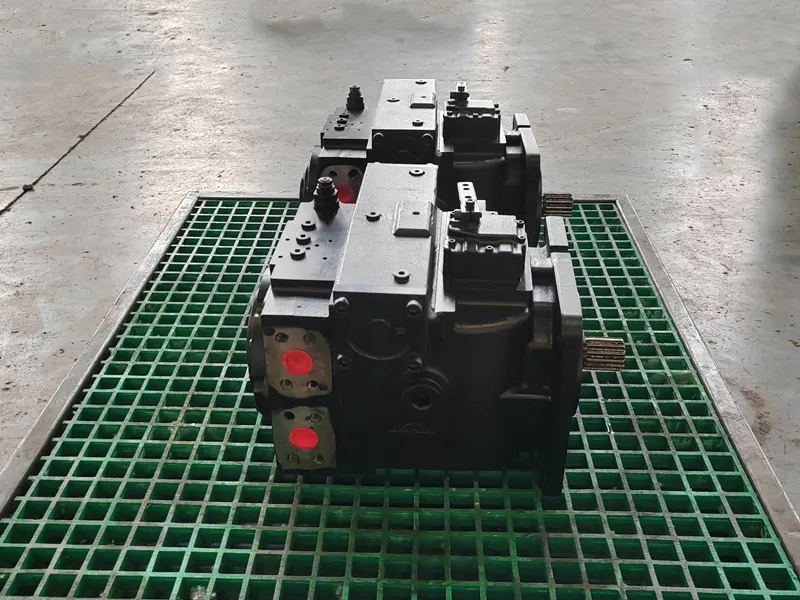

Hydrostatic Motor 3200r/min by Highland Hydraulic 1

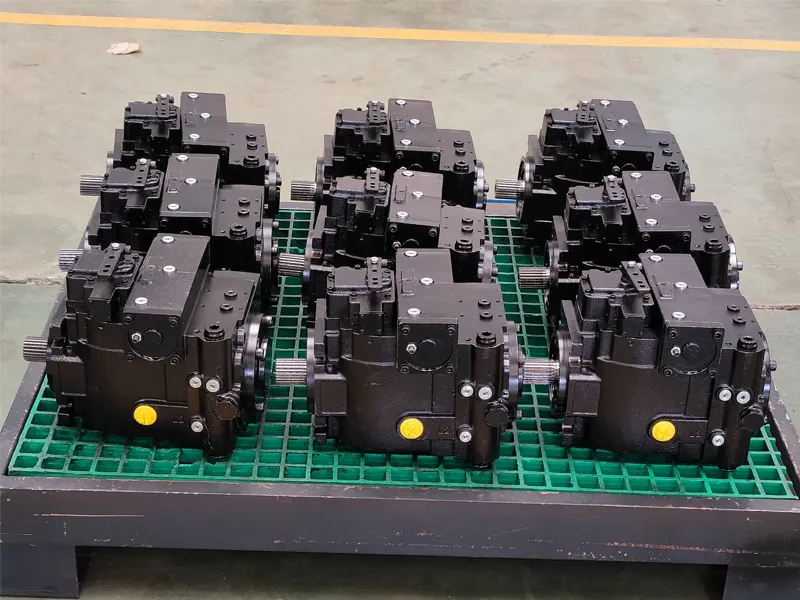

Hydrostatic Motor 3200r/min by Highland Hydraulic 2

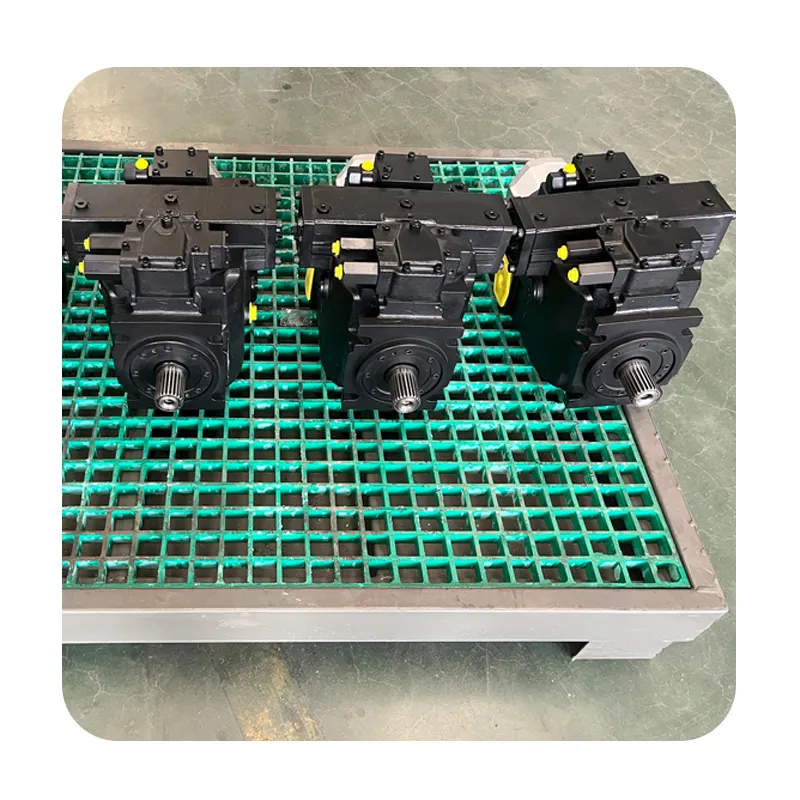

Hydrostatic Motor 3200r/min by Highland Hydraulic 3

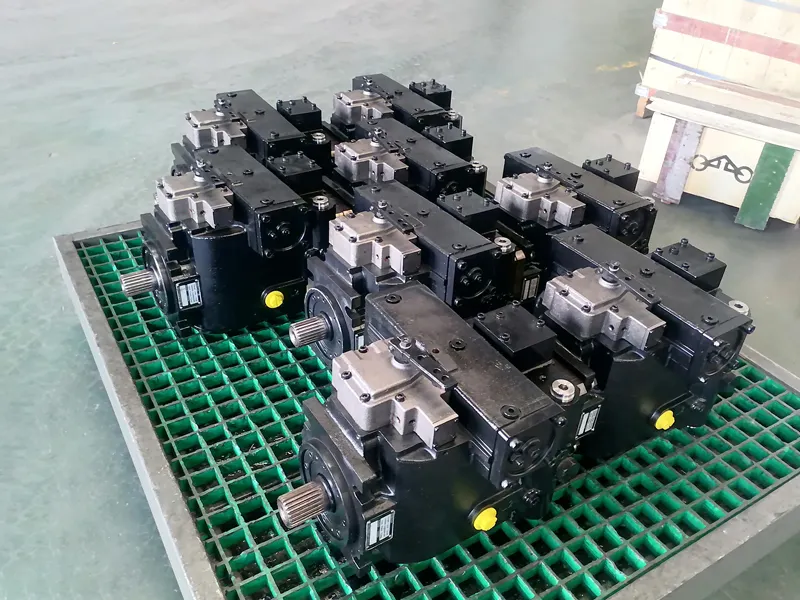

Hydrostatic Motor 3200r/min by Highland Hydraulic 4

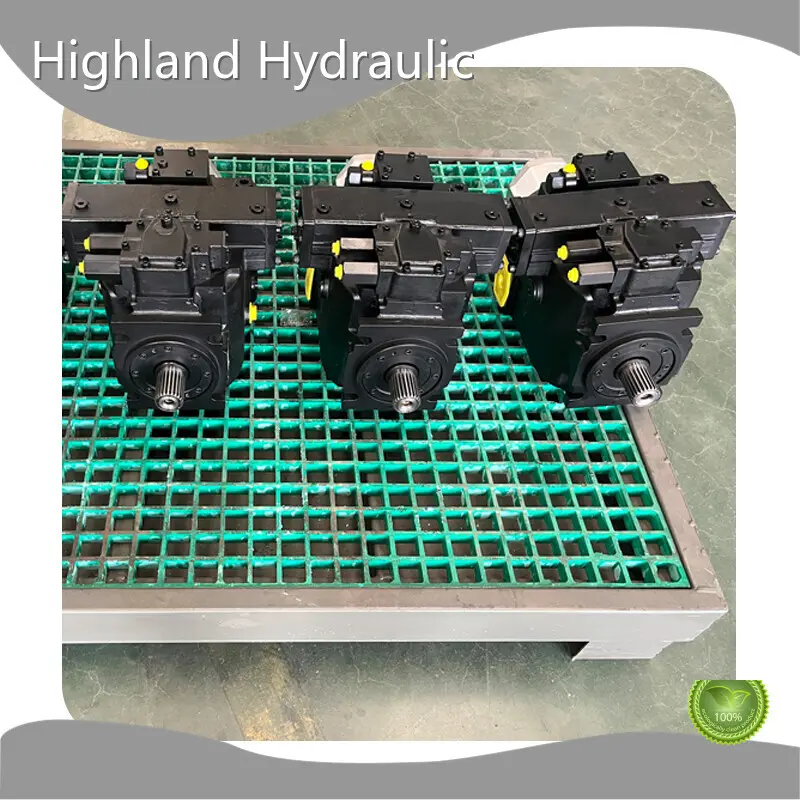

Hydrostatic Motor 3200r/min by Highland Hydraulic 5

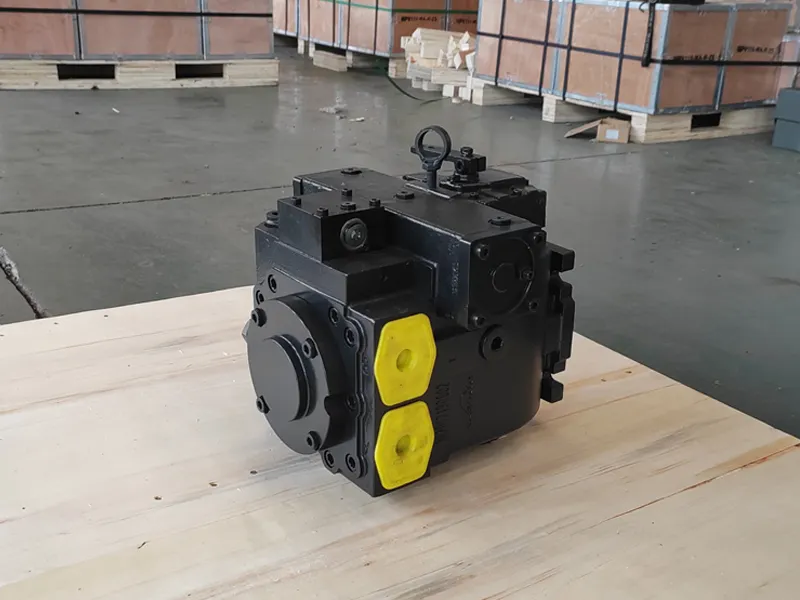

Hydrostatic Motor 3200r/min by Highland Hydraulic 6

Hydrostatic Motor 3200r/min by Highland Hydraulic

Packaging Details:

Plywood case

Inquiry

Hydraulic Pump Mode

LPV70

Brand

HIGHLAND

Speed

3200r/min

Displacement

70ml/r

Company Advantages

· hydrostatic motor follows the 'simple and reliable, and environmental protection' design concept.

· hydrostatic motor is fitted with the latest precision technology which attracts many customers.

· This product comes with first-class technology and first-class service.

Product Description

Designed for versatility and ease of maintenance, the LPV70 Axial Piston Pump ensures dependable hydraulic power tailored to specific operational demands. Its modular design facilitates simplified servicing and quick repairs, significantly reducing downtime. Engineered for durability and consistent efficiency in harsh working environments, the LPV70 is an optimal hydraulic solution for construction equipment, mining machinery, and industrial applications.

Product Specifications

Rated displacement			30	50	70	90	110	130	160	180	200
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130	160	180	200
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700	2400	2400	2400
	Rated speed	r/min	2500						2200
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4	776	875	972
Torque	Maximum output torque	Nm	227	353	480	606	749	885	1000	1098	1200
Power	Continuous Power	KW	41	72	98	128	137	162	191	224	279
Power	Maximum power	KW	57	87	105	138	159	188	292	307	318
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	LPV series hydraulic pump Hydraulic oil drainage	kg	44	45	62.5	63.5	71	96	98	140	144

Download FIle

PDF

Download FIle

LPV30（50）

PDF

LPV70（90）

PDF

LPV110

PDF

LPV130（160）

PDF

LPV180（200）

PDF

HIGHLAND

Products Advantages

LPV series closed axial piston motor offers high efficiency, compact design, and superior performance, making it an ideal choice for a wide range of hydraulic applications.

Hydrostatic Motor 3200r/min by Highland Hydraulic 15

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Hydrostatic Motor 3200r/min by Highland Hydraulic 16

Low price

We promise the lowest price for new products of the same variety in the world

Hydrostatic Motor 3200r/min by Highland Hydraulic 17

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Details

Its closed axial piston design, it provides reliable performance and long service life. Its compact size makes it ideal for installations where space is limited.

HMF30（50）-1

HMF30（50）-2

HMF70（90、110、130）-1

Product Features

Designed for adaptability, the LPV70 pump features versatile mounting options and compact dimensions, allowing seamless integration into a wide range of agricultural hydraulic systems, streamlining installation, and saving space.

Product Application

The PV series closed axial piston motor is perfect for applications requiring high efficiency and smooth operation, such as construction equipment and industrial machinery.

Cotton picker

Machine

harvester

Cane Grabbing Machine

FAQ

Tell us about your project requirements and we will figure out a solution that will meet your budget and design expectations.

What are the typical applications for the LPV70 Closed Axial Piston Pump?

The LPV70 Closed Axial Piston Pump is commonly used in industrial and mobile hydraulic systems, including construction equipment, agricultural machinery, and material handling equipment.

What makes the LPV70 Closed Axial Piston Pump compact?

The compact design of the LPV70 Closed Axial Piston Pump allows for easy installation in tight spaces and provides greater flexibility in equipment design and layout.

Can the LPV70 Closed Axial Piston Pump handle high pressure applications?

Yes, the LPV70 Closed Axial Piston Pump is designed to handle high pressure applications, making it suitable for demanding hydraulic systems.

What kind of hydraulic fluid is recommended for use with the PV23 Closed Axial Piston Pump?

The LPV70 Closed Axial Piston Pump is compatible with a variety of hydraulic fluids, but it is recommended to use fluids that meet the manufacturer's specifications for optimal performance.

Can the LPV70 Closed Axial Piston Pump be used in harsh environmental conditions?

Yes, the LPV70 Closed Axial Piston Pump is designed to withstand harsh environmental conditions, including extreme temperatures, high humidity, and exposure to dust and debris.

How can I ensure proper maintenance of the LPV70 Closed Axial Piston Pump?

Proper maintenance of the LPV70 Closed Axial Piston Pump includes regular inspection, checking for leaks, monitoring fluid levels, and following the manufacturer's recommended maintenance schedule.

Company Features

· Shandong Highland Hydraulic Seiko Co., Ltd leads the trend of hydrostatic motor market.

· We have a clear and defined manufacturing plant. Its highly efficient route and layout make everything we do is clear and defined, from the delivery of raw materials to final despatch.

· People are at the heart of everything we do. We care about our employees, communities and the environment around us and we want to make sure we have a positive impact on all three. Check it!

Product Details

Highland Hydraulic's hydrostatic motor has been greatly improved in the following details.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
