Hydraulic Valve Test Bench Hydraulic Oil Wholesale - Highland Hydraulic
Product details of the hydraulic valve test bench
Product Specification
Product Name: Hydraulic Test Equipment
Working Medium: Hydraulic Oil
Power: 75-315KW
Power Drive Mode: Electromotor
Product Overview
The innovative design enrichs the overall look of Highland Hydraulic hydraulic valve test bench. Compared to other products in the market, this product is competitive in various aspects of performance, practicality, durability, and service life. The product will soon become the standardized one in the field.
Product Description
The hydraulic valve test bench of Highland Hydraulic has the following advantages, compared with similar products in the market.
HIGHLNAD hydraulic TEST EQUIPMENT
Hydraulic test bench is independently developed, designed, and produced, and can be combined according to user needs
yst series hydraulic test benches
Products Advantages
Our hydraulic test bench provides accurate and reliable testing for hydraulic components, ensuring optimal performance and safety. It offers customizable pressure settings, fast testing times, and easy operation for increased productivity.

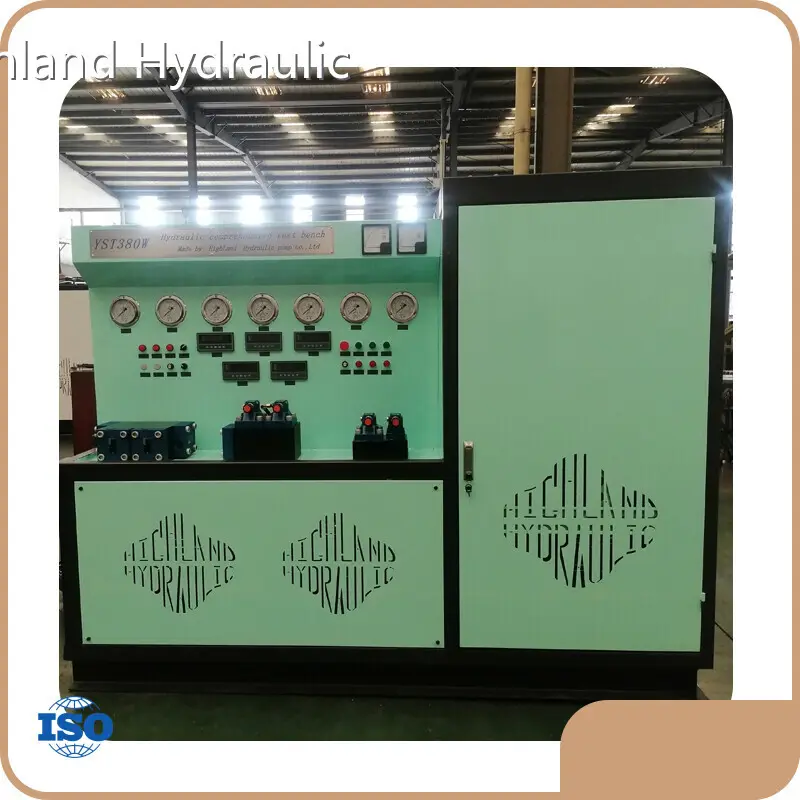

HIGHLAND HYDRAULIC TEST STAND
YST series is specially designed for manufacturers and maintenance companies toverify the quality of hydraulic pumps,
motors,and valves, as well as to diagnose system issues. The benches can be customized to meet your specific testing requirements.
standard test bench models include
- Hydraulic Pump Test Bench
- Hydraulic Motor Test Bench
- Hydraulic Cylinder Test Bench
- Valve Factory Test Bench
- Transmission & Torque Converter Test Bench
TYPICAL APPLICATIONS
- Hydraulic Pumps: Open and closed pumps, piston pumps, gear pumps, vane pumps, screw pumps
- High-Speed Hydraulic Motors: Through-shaft swashplate motors, angled-axis motors
- Low-Speed High-Torque Motors: Radial five-star motors, internal curve motors, cycloidal motors
- Hydraulic Cylinders
- Valves: Rexroth, Yuken valves
- Transmissions & Torque Converters
- Engines
FEATURES
- Energy-Saving Options: Includes test benches with electric or hydraulic energy recovery systems
- Power Range: Available in 75KW, 160KW, 250KW, and 400KW options
- High Load Pressure: Up to 42 MPa, with short-term capability of reaching 50 MPa; max flow exceeds 1000L
- Drive Options: Choose from variable frequency or servo motor drives, direct engine drive, or engine-hydraulic pump/motor conversion drive
FEATURES
- Drive Motor Types: Standard AC motors, variable frequency AC motors, and permanent magnet DC variable frequency motors, offering wide speed ranges and excellent performance
- Standard Dimensions: Available in sizes 3.8m x 2.1m x 2.2m or 3.8m x 4.1m x 2.2m
- Weight: 3 to 8 tons (excluding hydraulic oil)
Product Specifications
Our experts can help you find the perfect hydraulic testing equipment for your home.
| Pressure | 35mpa、42mpa | |
| Flow Rate | 380L/min 、450L/min、500L/min | |
| Brand | HIGHLAND | |
| Power | 75kw、90kw、110kw、160kw、200kw、250kw、315kw | |
| Test Element | Close pump test, Open pump, Low speed motor, Valve set, Cylinder | |
| Power Drive Mode | Electromotor, Diesel engine drive, Hydraulic mortor, Power recovery | |
| Speed Range | 1000r/min、0-1500r/min、0-2500r/min、0-3500r/min | |
| Display Mode | Locale(Withour Computer)、Computer (long-distance) | |
| Working Medium | Hydraulic oil | |
| Oil Tank Cubage | 1300L、2000L | |
Packing & Delivery
To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.
FAQ
Company Information
Shandong Highland Hydraulic Seiko Co., Ltd has been committed to producing high-quality hydraulic valve test bench. Our people are experts in product creation. They are used to making multidisciplinary methods. Fast, professional, competent and knowledgeable, they let us offer the best. We build up a strong company culture of society charity while maintaining profitable growth in business. We regularly hold or take part in all kinds of donation projects or charity sells.
We only produce high-quality products. Welcome customers to contact customer service staff for consultation!
