Product details of the hydraulic test bench
Product Specification
Power: 75-315KW
Working Medium: Hydraulic Oil
Product Information
There is a fact that the function of hydraulic test bench is well-designed to match the needs of the products. We specialize in researching and developing new technologies to bring the quality and performance of our products to the forefront of the industry. Shandong Highland Hydraulic Seiko Co., Ltd has achieved long-term development in hydraulic test bench industry in recent years.
HIGHLNAD hydraulic TEST EQUIPMENT
Hydraulic test bench is independently developed, designed, and produced, and can be combined according to user needs

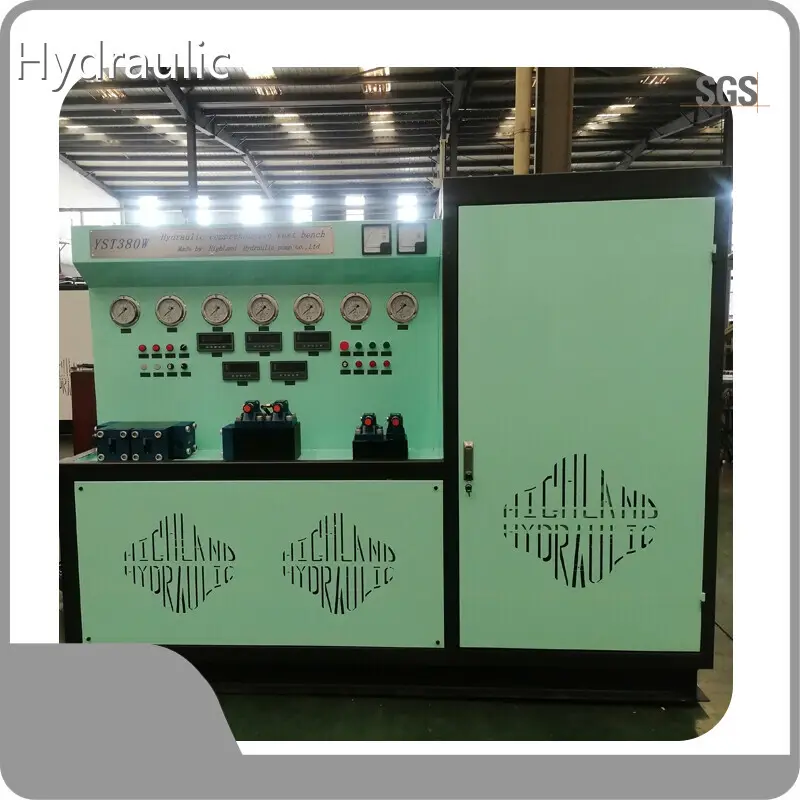

yst series hydraulic test benches
Products Advantages
Our hydraulic test bench provides accurate and reliable testing for hydraulic components, ensuring optimal performance and safety. It offers customizable pressure settings, fast testing times, and easy operation for increased productivity.

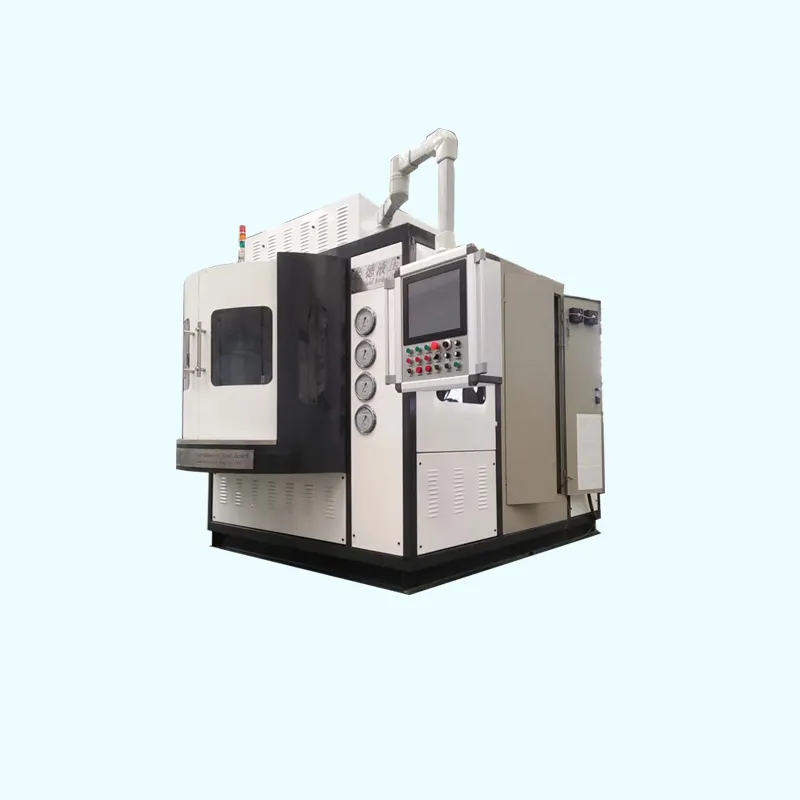

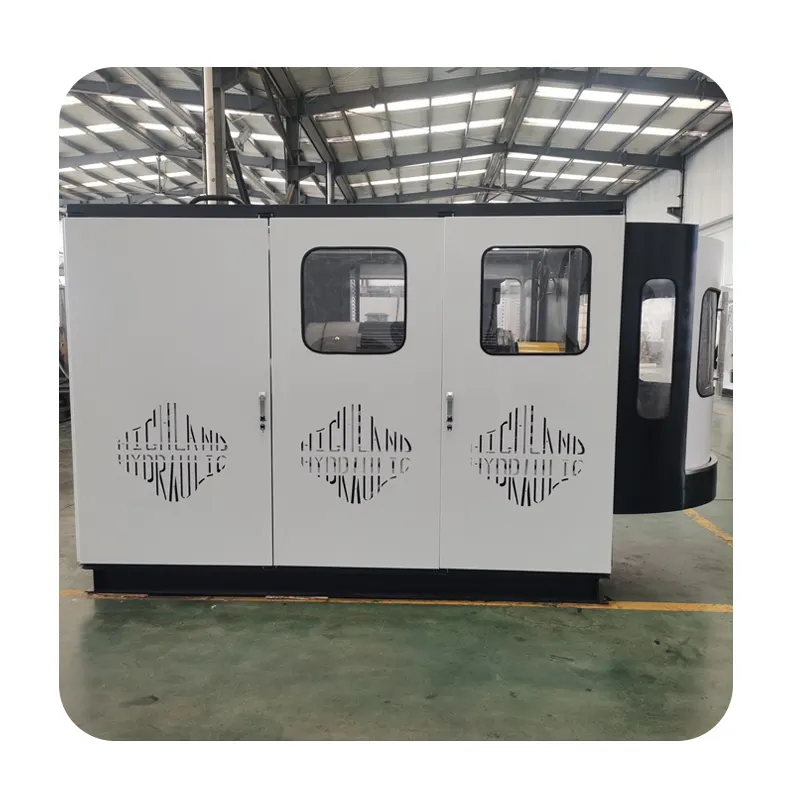

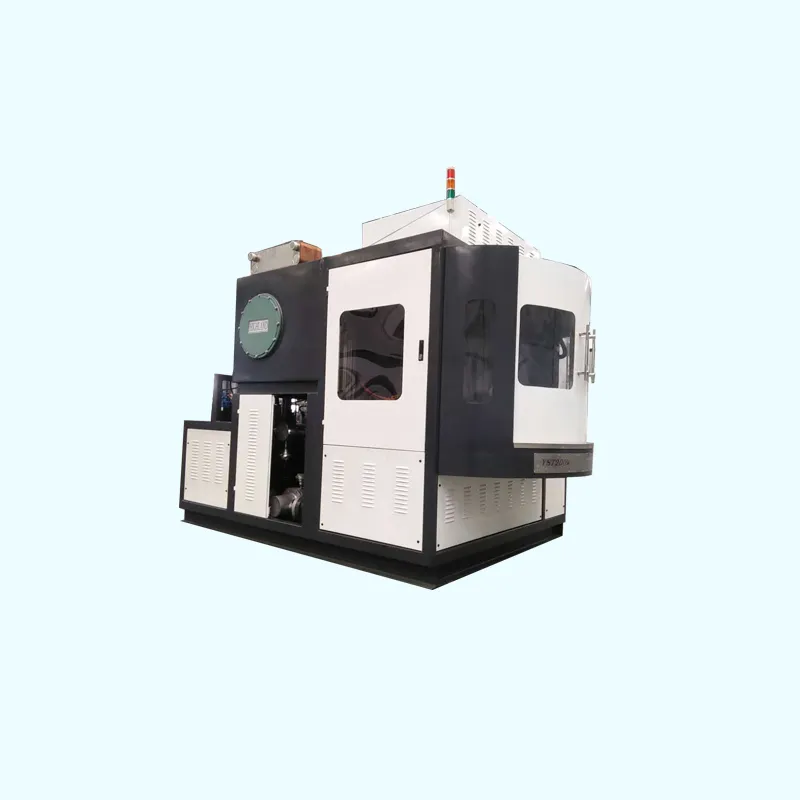

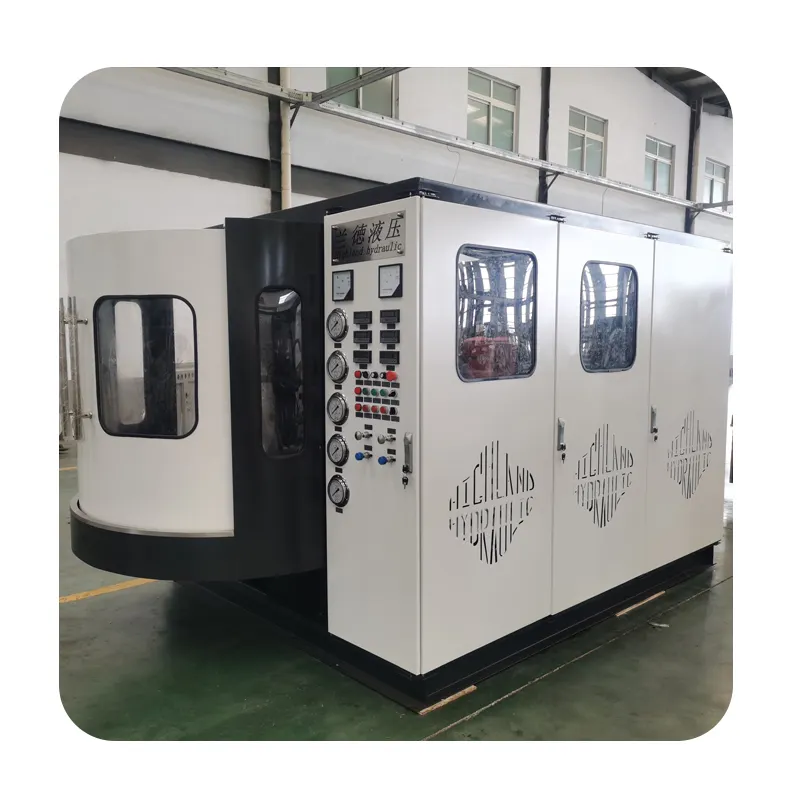

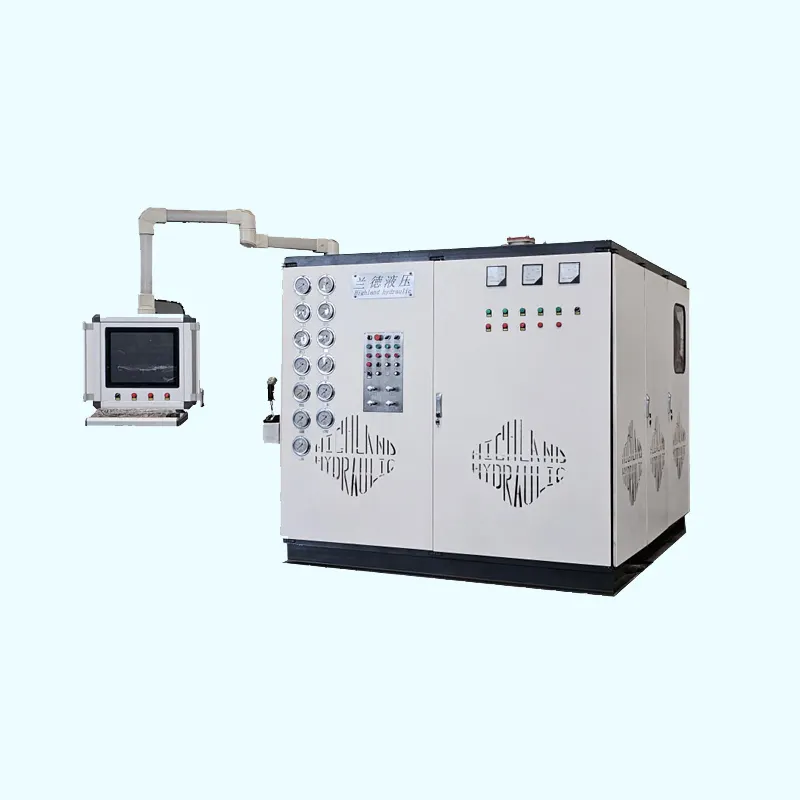

HIGHLAND HYDRAULIC TEST STAND
YST series is specially designed for manufacturers and maintenance companies toverify the quality of hydraulic pumps,
motors,and valves, as well as to diagnose system issues. The benches can be customized to meet your specific testing requirements.
standard test bench models include
- Hydraulic Pump Test Bench
- Hydraulic Motor Test Bench
- Hydraulic Cylinder Test Bench
- Valve Factory Test Bench
- Transmission & Torque Converter Test Bench
TYPICAL APPLICATIONS
- Hydraulic Pumps: Open and closed pumps, piston pumps, gear pumps, vane pumps, screw pumps
- High-Speed Hydraulic Motors: Through-shaft swashplate motors, angled-axis motors
- Low-Speed High-Torque Motors: Radial five-star motors, internal curve motors, cycloidal motors
- Hydraulic Cylinders
- Valves: Rexroth, Yuken valves
- Transmissions & Torque Converters
- Engines
FEATURES
- Energy-Saving Options: Includes test benches with electric or hydraulic energy recovery systems
- Power Range: Available in 75KW, 160KW, 250KW, and 400KW options
- High Load Pressure: Up to 42 MPa, with short-term capability of reaching 50 MPa; max flow exceeds 1000L
- Drive Options: Choose from variable frequency or servo motor drives, direct engine drive, or engine-hydraulic pump/motor conversion drive
FEATURES
- Drive Motor Types: Standard AC motors, variable frequency AC motors, and permanent magnet DC variable frequency motors, offering wide speed ranges and excellent performance
- Standard Dimensions: Available in sizes 3.8m x 2.1m x 2.2m or 3.8m x 4.1m x 2.2m
- Weight: 3 to 8 tons (excluding hydraulic oil)
Product Specifications
Our experts can help you find the perfect hydraulic testing equipment for your home.
| Pressure | 35mpa、42mpa | |
| Flow Rate | 380L/min 、450L/min、500L/min | |
| Brand | HIGHLAND | |
| Power | 75kw、90kw、110kw、160kw、200kw、250kw、315kw | |
| Test Element | Close pump test, Open pump, Low speed motor, Valve set, Cylinder | |
| Power Drive Mode | Electromotor, Diesel engine drive, Hydraulic mortor, Power recovery | |
| Speed Range | 1000r/min、0-1500r/min、0-2500r/min、0-3500r/min | |
| Display Mode | Locale(Withour Computer)、Computer (long-distance) | |
| Working Medium | Hydraulic oil | |
| Oil Tank Cubage | 1300L、2000L | |
Packing & Delivery
To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.
FAQ
Company Advantage
• Highland Hydraulic has a relatively complete marketing system which guarantees the nationwide sales network.
• Highland Hydraulic strives to create a fair environment for competition and actively builds the learning platform. This enables us to cultivate a group of elites teams with passion, profession, and efficiency.
• After years of hard work, our company has won the trust and support of customers.
• Highland Hydraulic will deeply understand the needs of users and offer great services to them.
Highland Hydraulic only selects some Hydraulic pump、Hydraulic motor、Hydraulic test benches for your reference. If you want to know more product information, please leave your contact information. We will get back to you with product details as soon as possible.
