Product details of the hydraulic pump swash plate

Product Specification

Type: Axial piston pump

Brand: HIGHLAND

Mode: PV20|PV22|PV23|PV110

Working Medium: Hydraulic Oil

Product Overview

The production of Highland Hydraulic hydraulic pump swash plate strictly complies with ISO standard manufacturing processes. The product is now extensively used in the market and leading the industry trend. Different kinds of high-quality supply chains are Shandong Highland Hydraulic Seiko Co., Ltd's solid defense.

Product Introduction

Compared with other hydraulic pump swash plate, the hydraulic pump swash plate produced by Highland Hydraulic has the following advantages and features.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Engineered for marine environments, this hydraulic pump offers high performance and durability. Its closed-circuit design ensures high efficiency and precise fluid control. Hydraulic pump is made of corrosion-resistant materials, ensuring long-term operation in harsh conditions.

Product Features

• Closed-circuit hydraulic pump is built to meet the rigorous demands of marine applications.
• Certified under ISO9001 standards, it guarantees quality, reliability, and efficiency.
• Its compact and robust construction ensures resistance to harsh marine environments, including corrosion and extreme temperatures.
• Hydraulic pump integrates advanced hydraulic technology for smooth operation, reduced noise levels, and enhanced thermal stability.

Product INTRODUCTION

Designed for demanding marine applications, ISO9001-certified closed-circuit hydraulic pump ensures exceptional performance, efficiency, and durability. Its high-quality construction and precision engineering provide reliable fluid control in ship propulsion, steering systems, and other marine hydraulic operations.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Button

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

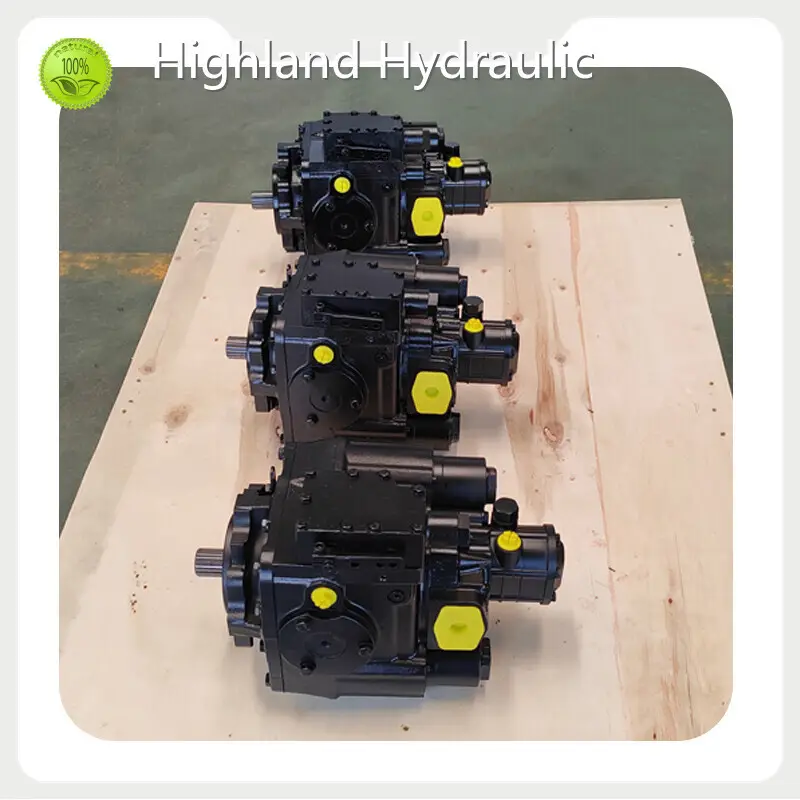

Closed Circuit Hydraulic Pump

Closed Loop Hydraulic Pump

Marine Hydraulic Piston Pump

Product Application

6-12 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

About Us

Shandong Highland Hydraulic Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with nearly 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.

Packing & Delivery

To protect hydrostatic pump, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.
