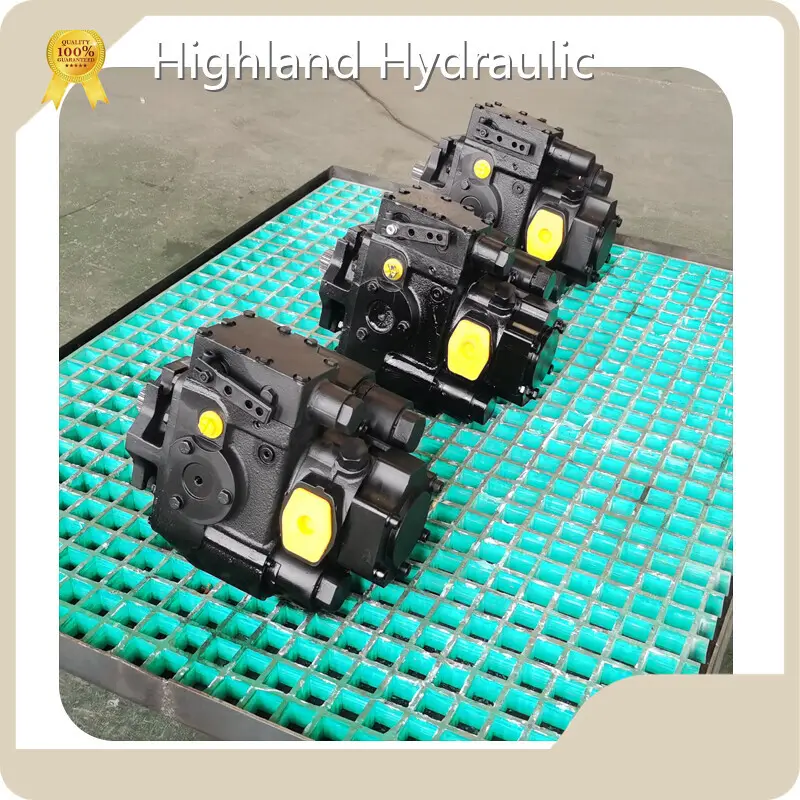

Hydraulic Pump Swash Plate High Efficiency by Highland Hydraulic
Product details of the hydraulic pump swash plate
Product Specification
Characteristic: High efficiency,Good stability,Simple layout
Type: Axial piston pump
Material: Cast Iron
Product Introduction
Such feature of hydraulic pump swash plate brings out Highland Hydraulic's own unique flavor. This product is not only powerful, but also durable and has a longer service life than other competing products. Highland Hydraulic also provides installation service for customers.
Reliable Quality Variable Swash Plate Pump
For Material Handling Equipment
our advantage
Product Description
High-performance Variable Swash Plate Hydrostatic Pump is designed to meet the needs of material handling systems. With precise flow control, it adapts to varying operational conditions, ensuring reliability and energy efficiency. Its robust construction makes it ideal for demanding environments, offering reduced maintenance and downtime.
Product Features
- Variable Swash Plate Pump is designed to offer exceptional versatility and reliability in material handling equipment.
- Featuring advanced technology, this pump provides smooth and efficient flow control, reducing energy consumption while ensuring high operational reliability.
- Hydraulic pump's variable displacement capability enables optimal performance under varying load conditions, making it ideal for a range of applications such as construction, mining, and industrial machinery.
- Its robust construction ensures durability, even in harsh environments, reducing downtime and maintenance costs.
Product INTRODUCTION
Variable Swash Plate Pump is a key component in material handling equipment, providing optimal performance through variable displacement. Engineered for durability and efficiency, it ensures smooth operation across different conditions, resulting in lower energy consumption and improved system functionality.
Product specification
|
Rated displacement |
|
30 |
50 |
70 |
90 |
110 |
130 |
|
|
Maximum displacement |
ml/r |
30 |
50 |
70 |
90 |
110 |
130 |
|
|
Speed |
Maximum continuous operating speed (Full load condition) |
r/min |
3500 |
3500 |
3200 |
3000 |
2900 |
2700 |
|
Rated speed |
r/min |
2500 |
||||||
|
Minimum continuous operating speed |
r/min |
500 |
||||||
|
Pressure |
Rated working pressure |
Mpa |
35 |
|||||
|
Maximum working pressure (instantaneous) |
Mpa |
42 |
||||||
|
Continuous working pressure ( Δ P) |
Mpa |
30 |
||||||
|
Allowable shell pressure (absolute) |
Mpa |
Constant0.25，Peak value0.5 |
||||||
|
Torque |
Continuous output torque (Under continuous work pressure) |
Nm |
162.3 |
252.3 |
342.6 |
432.9 |
535.3 |
632.4 |
|
Maximum output torque |
Nm |
227 |
353 |
480 |
606 |
749 |
885 |
|
|
power |
Continuous Power |
KW |
41 |
72 |
98 |
128 |
137 |
162 |
|
Maximum power |
KW |
57 |
87 |
105 |
138 |
159 |
188 |
|
|
Temperature |
Allowable temperature of shell |
℃ |
80 |
|||||
|
Maximum operating temperature of fuel tank |
℃ |
70 |
||||||
|
Angle |
Maximum inclination angle of the inclined plate |
° |
± 18 ° |
|||||
|
weight |
HPV series hydraulic pump Hydraulic oil drainage |
kg |
45 |
46 |
63 |
64 |
87 |
87.5 |
detail displaY
Product Application
Packing & Delivery
To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.
