Hydraulic Piston Pump Hydraulic Oil Wholesale - Highland Hydraulic

Product details of the hydraulic piston pump

Product Specification

Hydraulic Pump Mode: PV23

Material: Cast Iron

Working Medium: Hydraulic Oil

Type: Axial piston pump

Product Information

To catch up with the fashion trends in market, hydraulic piston pump is designed in a very fashionable way. The product has the advantages of strong functionality, high performance. Shandong Highland Hydraulic Seiko Co., Ltd conducts real-time monitoring and feedback on the quality of the entire manufacturing process.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

SPV23 Hydraulic Piston Pump is engineered for high-performance cement mixer applications. Ensuring efficient and precise mixing operations, built for durability, it withstands high-pressure demands and continuous operation in tough construction environments. Its advanced hydraulic technology minimizes energy consumption while maximizing output, making it a reliable choice for cement mixers in large-scale projects.

Product Features

• SPV23 Hydraulic Piston Pump is specifically designed for cement mixers, providing powerful and efficient performance.
• High-pressure capacity and durable construction make it ideal for demanding construction applications.
• With advanced engineering and precision manufacturing, the SPV23 pump offers extended service life, minimizing downtime and maintenance costs.
• Its compact and robust design allows for easy installation, making it a preferred choice for cement mixing equipment.

Product INTRODUCTION

SPV23 Hydraulic Piston Pump is a robust and efficient solution for cement mixers, designed to handle extreme working conditions. Its high-pressure capabilities ensure mixer high efficiency performance. Hydraulic pump’s durable materials and precise engineering provide long-lasting reliability with minimal maintenance. Suitable for heavy-duty applications, it improves overall efficiency and operational stability in construction projects.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Read More

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

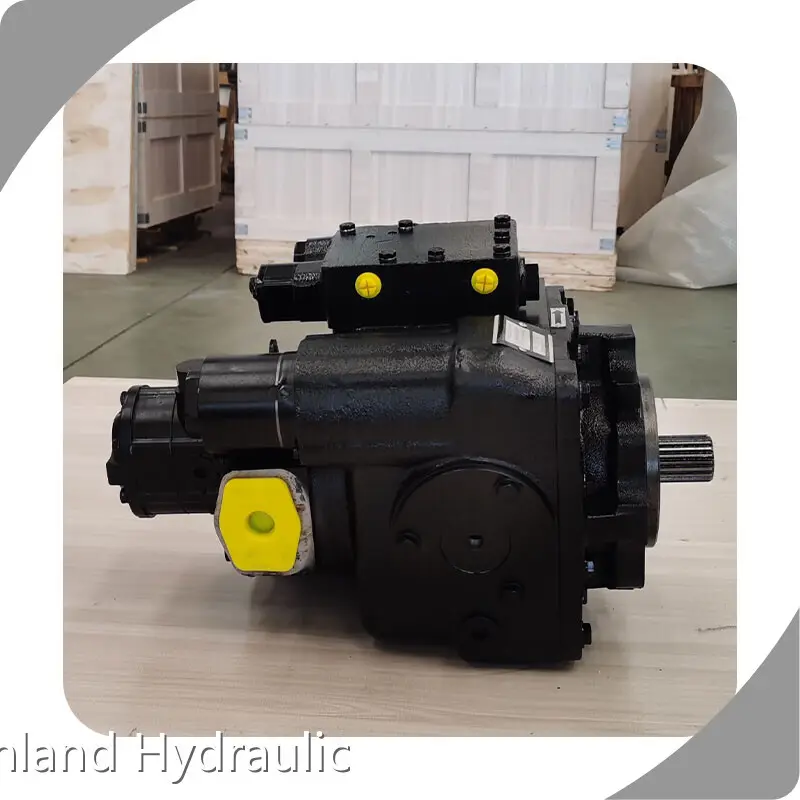

Mixer Hydraulic Piston Pump SPV23

Hydraulic Piston Pump PV23

Cement Mixer PV23 Hydraulic Pump

Product Application

6-12 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

About Us

Shandong Highland Hydraulic Seiko Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with more than 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.

Packing & Delivery

To protect hydrostatic pump, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

Company Feature

• To guarantee the high quality production, our company has established a skilled team with modern enterprise quality. During the production, our team members are focusing on their own duties.
• Our products are trusted by customers. Thus, they occupy a large market share in China and are exported to Europe, America, Southeast Asia and other countries and regions.
• Highland Hydraulic greatly improves comprehensive strength thanks to years of rapid development. Now we have strong technical capability and exquisite production technique.
• Highland Hydraulic's location has traffic convenience with multiple traffic lines joining up. This contributes to the transportation and ensures the timely supply of products.
Hello, thank you for your interest in this site! Highland Hydraulic provides high-quality Hydraulic pump、Hydraulic motor、Hydraulic test benches at favorable price. If you have any needs, please contact us. We will get back to you as soon as possible.
