Closed loop hydraulic pump/hydraulic motor manufacturer & hydraulic solutions provider - Highland Hydraulic

Hydraulic Piston Pump HIGHLAND by Highland Hydraulic 1

Hydraulic Piston Pump HIGHLAND by Highland Hydraulic 2

Hydraulic Piston Pump HIGHLAND by Highland Hydraulic 3

Hydraulic Piston Pump HIGHLAND by Highland Hydraulic 4

Hydraulic Piston Pump HIGHLAND by Highland Hydraulic 5

Hydraulic Piston Pump HIGHLAND by Highland Hydraulic 6

Hydraulic Piston Pump HIGHLAND by Highland Hydraulic

Packaging Details:

Plywood case

Inquiry

more products

Hydrostatic Pump

Hydrostatic Motor

Hydraulic Test Bench

Portable Hydraulic Tester

Send your inquiry

Type

Axial piston pump

Brand

HIGHLAND

Operation Mode

Closed Circuit Hydraulic System

Working Medium

Hydraulic Oil

Product details of the hydraulic piston pump

Product Specification

Type: Axial piston pump

Operation Mode: Closed Circuit Hydraulic System

Brand: HIGHLAND

Working Medium: Hydraulic Oil

Quick Overview

Highland Hydraulic hydraulic piston pump looks great with professional design and delicate shape. The product provides excellent safety and quality which have been approved by the international certifications. Highland Hydraulic always does the utmost to providing the best quality hydraulic piston pump and thoughtful service.

Product Introduction

Compared with general products, the hydraulic piston pump we produce have the following advantages.

Best Selling Hydraulic Piston Pump PV22 For Road Roller

Hydraulic piston pump PV22 is designed for harvesting machines. Offering high efficiency, durability, and precise control.

Its compact, robust design ensures reliable performance in demanding agricultural conditions.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

PV22 hydraulic piston pump delivers superior performance specifically engineered for cement mixer trucks, offering exceptional efficiency, stable pressure output, and reliable hydraulic flow in tough construction environments.

Product Features

With factory-direct competitive pricing, the PV22 Hydraulic Piston Pump provides cost-effective reliability, ideal for heavy-duty concrete mixing applications.
PV22 incorporates precision-engineered components for minimal noise and vibration, improving driver comfort and reducing operational fatigue.
Engineered for maximum productivity, PV22 Hydraulic Pump maintains consistent hydraulic pressure and smooth control, significantly enhancing mixer truck performance and jobsite efficiency.

Product INTRODUCTION

Hydraulic piston pump PV22 is a robust, reliable solution designed specifically for cement mixers, delivering stable pressure control and precise fluid flow for superior mixing performance.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
Rated displacement	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
Torque	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
Power	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Button

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

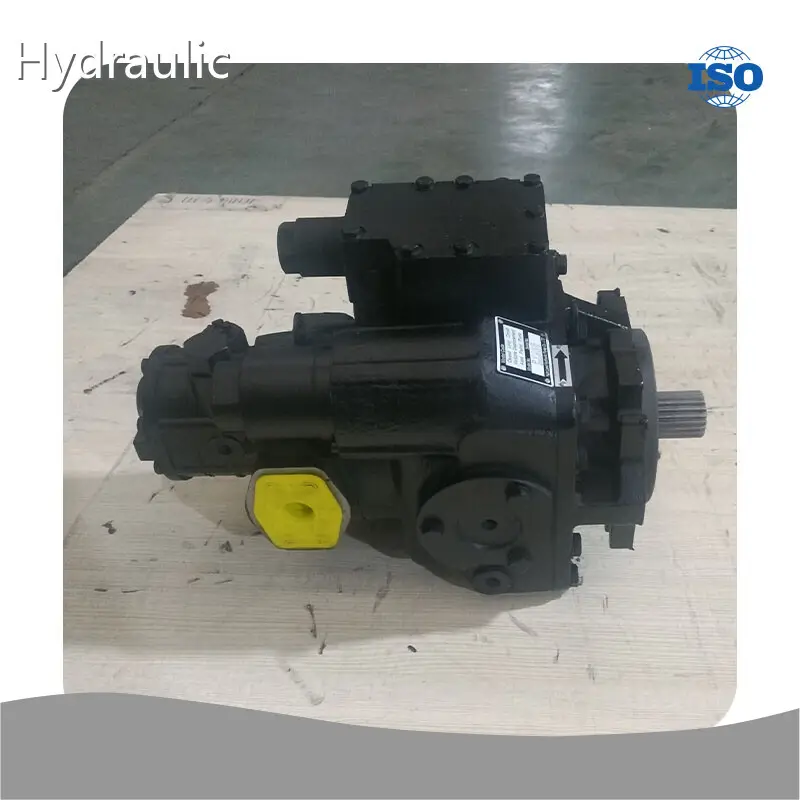

PV22 Variable Displacement Piston Pumps

Variable Displacement Piston Pump

PV22 Hydraulic Piston Pump

Product Application

6-12 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

About Us

Shandong Highland Hydraulic Seiko Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with more than 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.

Packing & Delivery

To protect hydrostatic pump, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.

What is the supply ability for the Hydraulic Piston Pumps?

The supply ability for the Hydraulic Piston Pumps is 200 Sets per month.

Company Information

Situated in de zhou, Shandong Highland Hydraulic Seiko Co., Ltd is a company. We focus on the production and sales of Hydraulic pump、Hydraulic motor、Hydraulic test benches. In order to make customer satisfied, Highland Hydraulic constantly improves the after-sales service system. We strive to provide excellent services. Look forward to inquiries from customers in various industries

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
