Product details of the hydraulic piston pump

Product Specification

Characteristic: High efficiency

Brand: HIGHLAND

Material: Cast Iron

Type: Axial piston pump

Quick Detail

The production process of Highland Hydraulic hydraulic piston pump follows strictly the industry standards. . The product is completely examined by the quality testing department. The hydraulic piston pump produced by our company is widely recognized by customers and widely used in field. The product has received many praises with its broad application prospects.

Product Information

The details of hydraulic piston pump are shown for you at below.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

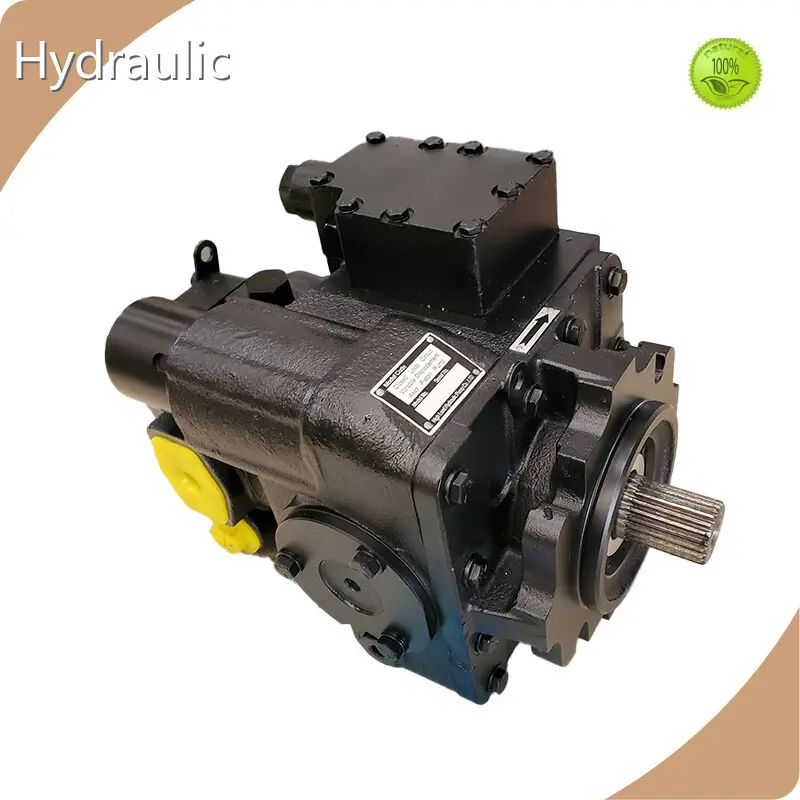

PV22 Hydrostatic Pump is built for high-pressure, continuous-duty operation in cement mixers. It delivers precise fluid control, ensuring optimal hydraulic performance. Made from durable materials, it offers excellent resistance to wear and tear, reducing maintenance costs and extending equipment lifespan.

Product Features

• PV22 Hydraulic Piston Pump is a high-performance component specifically engineered for cement mixer applications.
• It features advanced hydraulic technology, providing superior efficiency, stable operation, and excellent pressure control.
• Built with durable materials, it withstands harsh working conditions, ensuring long service life and minimal maintenance.
• Its factory-direct pricing ensures cost-effectiveness without compromising quality, making it a reliable solution for heavy-duty industrial use.
• Designed for seamless integration, the PV22 pump enhances the overall productivity and reliability of cement mixers in construction projects.

Product INTRODUCTION

Designed for cement mixer applications, PV22 Hydraulic Piston Pump provides high efficiency, precise control, and durability. With a rugged design and advanced hydraulic capabilities, it ensures smooth operation and reliability, making it an essential component for heavy-duty mixing equipment.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Button

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

Hydraulic Pump PV22

Hydraulic Piston Pump PV22

Cement Mixer Hydraulic Pump

Product Application

6-12 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine
