Packaging Details:

Plywood case

Inquiry

Application

Walking machinery

Characteristic

High efficiency

Type

Axial piston pump

Operation Mode

Closed Circuit Hydraulic System

Company Advantages

· The whole production of Highland Hydraulic hydraulic hydrostatic pump is completed by a team of experienced professionals who know clearly how to make lean production.

· The design of hydraulic hydrostatic pump will surely accommodate your unique temperament and taste.

· Shandong Highland Hydraulic Seiko Co., Ltd has various talents in management, technology, sales, and production.

hEAVY DUTY CONCRETE MIXER SPV23 HYDRAULIC PISTON PUMP

SPV23 Hydraulic Piston Pump is a high-performance solution for concrete mixers, offering durability, efficiency,

and reliable operation. It ensures smooth mixing performance in demanding construction environments.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

SPV23 Hydraulic Piston Pump is engineered for high-performance concrete mixing applications. Ensuring efficient and precise mixing operations, built for durability, it withstands high-pressure demands and continuous operation in tough construction environments. Its advanced hydraulic technology minimizes energy consumption while maximizing output, making it a reliable choice for concrete mixers in large-scale projects.

Product Features

SPV23 Hydraulic Piston Pump is specifically designed for concrete mixers, providing powerful and efficient hydraulic performance.
High-pressure capacity and durable construction make it ideal for demanding construction applications.
With advanced engineering and precision manufacturing, the SPV23 pump offers extended service life, minimizing downtime and maintenance costs.
Its compact and robust design allows for easy installation, making it a preferred choice for concrete mixing equipment.

Product INTRODUCTION

SPV23 Hydraulic Piston Pump is a robust and efficient solution for concrete mixers, designed to handle extreme working conditions. Its high-pressure capabilities ensure mixer high efficiency performance. Hydraulic pump’s durable materials and precise engineering provide long-lasting reliability with minimal maintenance. Suitable for heavy-duty applications, it improves overall efficiency and operational stability in construction projects.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
Rated displacement	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
Torque	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
Power	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

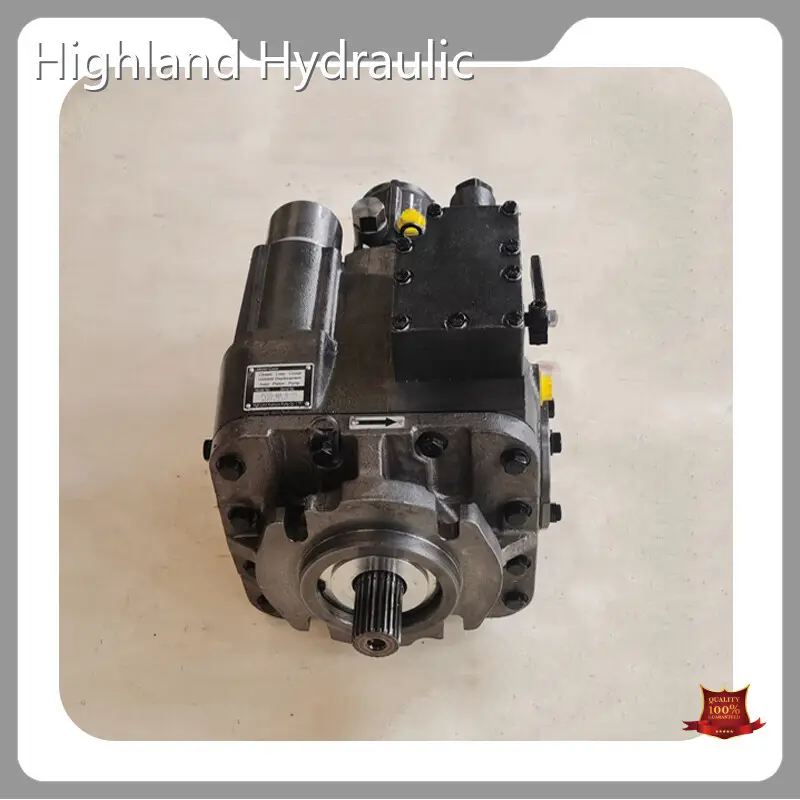

SPV23 Piston Pump

SPV23 Hydraulic Piston Pumps

Concrete Mixer Hydraulic Piston Pump

Mixer Hydraulic Piston Pump SPV23

Product Application

6-12 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

About Us

Shandong Highland Hydraulic Seiko Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with more than 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.

Packing & Delivery

To protect hydrostatic pump, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.

What is the supply ability for the Hydraulic Piston Pumps?

The supply ability for the Hydraulic Piston Pumps is 200 Sets per month.

Company Features

· So far Highland Hydraulic has developed into a shining star in the hydraulic hydrostatic pump industry.

· For years, we have received many honorable prizes in the industry. For instance, we have been awarded as "China Famous Exporter", which means that we are strong enough to serve overseas customers. Our manufacturing plant adopts a production control system. Its objective is to produce the required hydraulic hydrostatic pump in time and in the best and cheapest method possible.

· Sticking to the path of hydraulic hydrostatic pump is the best choice for Highland Hydraulic. Call now!

Product Details

Highland Hydraulic adheres to the principle of 'details determine success or failure' and pays great attention to the details of hydraulic hydrostatic pump.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
