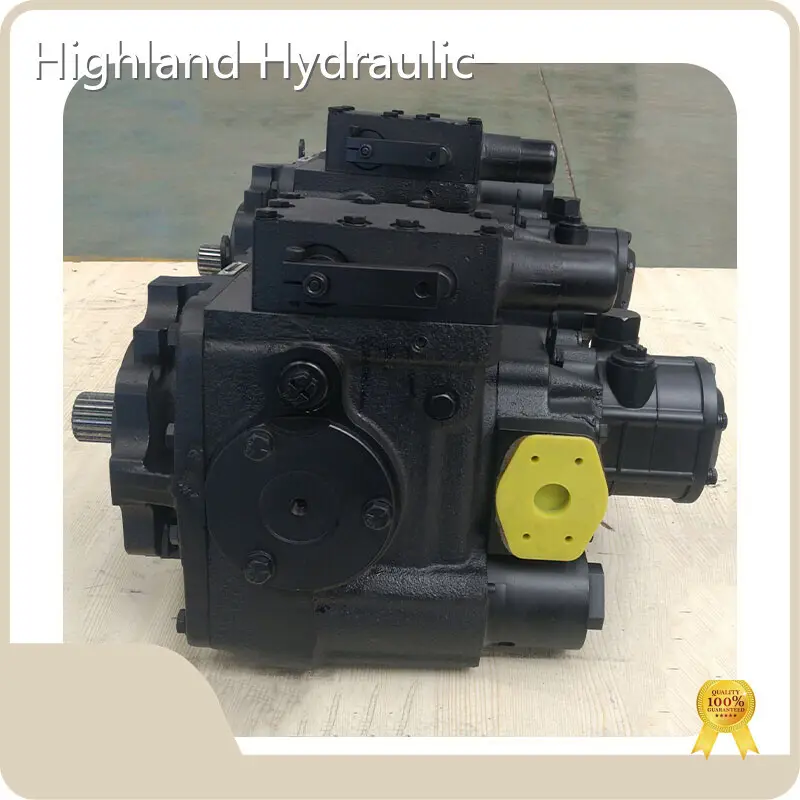

Hydraulic Hydrostatic Pump CE ISO9001 by Highland Hydraulic 1

Hydraulic Hydrostatic Pump CE ISO9001 by Highland Hydraulic 2

Hydraulic Hydrostatic Pump CE ISO9001 by Highland Hydraulic 3

Hydraulic Hydrostatic Pump CE ISO9001 by Highland Hydraulic 4

Hydraulic Hydrostatic Pump CE ISO9001 by Highland Hydraulic 5

Hydraulic Hydrostatic Pump CE ISO9001 by Highland Hydraulic 6

Hydraulic Hydrostatic Pump CE ISO9001 by Highland Hydraulic 7

Hydraulic Hydrostatic Pump CE ISO9001 by Highland Hydraulic

Certificate:

CE ISO9001

Inquiry

more products

Hydrostatic Pump

Hydrostatic Motor

Hydraulic Test Bench

Portable Hydraulic Tester

Send your inquiry

Product Name

closed circuit hydraulic pump

Speed

3500r/min

Operation Mode

Closed Circuit Hydraulic System

Working Medium

Hydraulic Oil

Company Advantages

· The appearance of Highland Hydraulic hydraulic hydrostatic pump looks very attractive.

· The reliability of this product guarantees a consistent performance throughout the lifetime and ultimately ensures the total cost of ownership is as low as possible.

· This product has considerable practical and commercial value.

PV23 Concrete Truck Mixer Hydraulic Pump Manufacturer

HIGHLAND Hydraulic piston pump is a high-performance solution for construction equipment,

offering durability, efficiency, and precision. Designed for heavy-duty applications,

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

With simplified installation and easy maintenance features, PV23 piston pump reduces downtime, supporting uninterrupted operation and consistent hydraulic performance.

Variable Displacement Hydraulic Piston Pump

Product Features

Concrete mixer hydraulic pump is a high-performance axial piston component specifically developed for demanding mixer truck applications, delivering exceptional pressure stability and reliable fluid transfer.
Designed using precise manufacturing techniques, it achieves optimal durability, ensuring reduced wear and minimal downtime during intensive concrete mixing operations.
Widely adopted in concrete mixer trucks, it significantly enhances mixing efficiency, operational reliability, and overall equipment performance.

Product INTRODUCTION

PV23 hydraulic pump features advanced engineering and durable construction, ensuring optimal efficiency and exceptional reliability even under heavy-duty, continuous-operation conditions.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
Rated displacement	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
Torque	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
Power	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Button

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

Product Details

Its closed axial piston design, it provides reliable performance and long service life. Its compact size makes it ideal for installations where space is limited.

PV20Mixer Hydraulic Pumps

PV22 Axial Piston Pumps

PV23Mixer Hydraulic Pumps

Product Application

Grape harvester

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Combine harvester

Agricultural machinery

Combine harvester

Special equipment

About Us

Shandong Highland Hydraulic Seiko Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with more than 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.

Packing & Delivery

To protect hydrostatic pump, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.

What is the supply ability for the Hydraulic Piston Pumps?

The supply ability for the Hydraulic Piston Pumps is 200 Sets per month.

Company Features

· Shandong Highland Hydraulic Seiko Co., Ltd is committed to the development of high-quality professional hydraulic hydrostatic pump manufacturers!

· Highland Hydraulic has absorbed in the delicate technology to manufacture hydraulic hydrostatic pump. It is urgent for Highland Hydraulic to develop the innovation of manufacturing hydraulic hydrostatic pump technology.

· In the future, we will implement business management, strengthen core competencies, and enhance equipment, technology, management and R&D capabilities to improve operational performance. Welcome to visit our factory!

Product Details

Highland Hydraulic pays great attention to the details of hydraulic hydrostatic pump. The following will show you one by one.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
