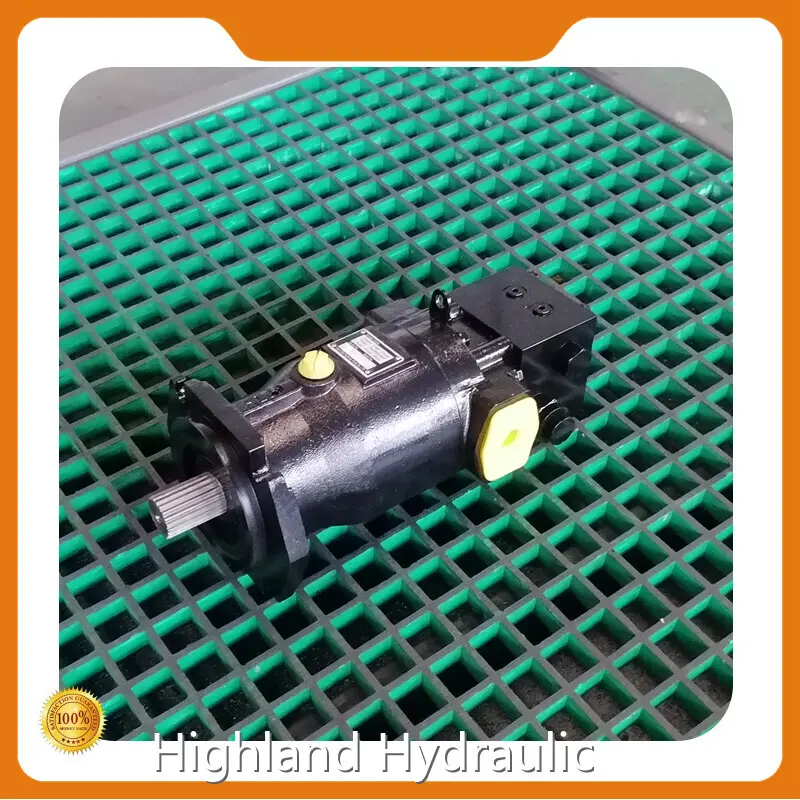

Hydraulic Axial Piston Motor Axial Piston Motor by Highland Hydraulic 1

Hydraulic Axial Piston Motor Axial Piston Motor by Highland Hydraulic 2

Hydraulic Axial Piston Motor Axial Piston Motor by Highland Hydraulic 3

Hydraulic Axial Piston Motor Axial Piston Motor by Highland Hydraulic 4

Hydraulic Axial Piston Motor Axial Piston Motor by Highland Hydraulic 5

Hydraulic Axial Piston Motor Axial Piston Motor by Highland Hydraulic 6

Hydraulic Axial Piston Motor Axial Piston Motor by Highland Hydraulic 7

Hydraulic Axial Piston Motor Axial Piston Motor by Highland Hydraulic 8

Hydraulic Axial Piston Motor Axial Piston Motor by Highland Hydraulic

Packaging Details:

Plywood case

Inquiry

more products

Hydrostatic Pump

Hydrostatic Motor

Hydraulic Test Bench

Portable Hydraulic Tester

Send your inquiry

Function

Execution components of hydraulic system

Type

Axial piston motor

Working Medium

Hydraulic Oil

Mode

MF20|MF22|MF23|MF110

Product details of the hydraulic axial piston motor

Product Specification

Type: Axial piston motor

Mode: MF20|MF22|MF23|MF110

Working Medium: Hydraulic Oil

Function: Execution components of hydraulic system

Product Information

The production of Highland Hydraulic hydraulic axial piston motor is based on the industry's standards. Quality and reliability are the basic characteristics of the product. Shandong Highland Hydraulic Seiko Co., Ltd can provide COA as quality assurance for our customers' reference.

High performance Mf23 hydraulic motor

in industrial applications

MF23 hydraulic motor delivers high performance, durability, and efficiency for industrial hydraulic systems.

Its compact design, low maintenance, and versatile applications make it ideal for demanding environments.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Widely Application

Agricultural equipment, and other heavy machinery, providing precise control and long-lasting performance.

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

MF23 hydraulic motor is a highly efficient and durable component designed for high-performance hydraulic systems. Known for its smooth operation and reliable power transmission, it ensures consistent performance under heavy-duty conditions. Hydraulic motor is ideal for industrial applications, offering low maintenance, high torque, and energy efficiency. Its design enhances overall system reliability and productivity, making it a trusted solution for demanding hydraulic needs.

HIGHLAND Fixed Displacement Hydraulic Motor MF23

Agricultural Machinery Hydraulic Motor MF20

Product Features

MF23 hydraulic motor is engineered to deliver superior performance in industrial hydraulic transmission applications.
Its compact design, efficient power output, and robust construction ensure reliable operation in heavy-duty environments.
Designed for optimal efficiency, MF23 hydraulic motor minimizes energy consumption while maintaining high torque and speed.
It operates effectively in a wide range of hydraulic systems, offering excellent durability and low maintenance.

Product INTRODUCTION

MF23 hydraulic motor is a high-performance solution designed for industrial hydraulic transmission. With advanced technology and a robust build, it offers reliable power delivery and smooth operation, making it suitable for a variety of applications, including construction and agricultural machinery. Its durable design and low maintenance requirements ensure long service life and optimal performance in demanding environments.

HIGHLAND Fixed Displacement Hydraulic Motor MF110

MF series motor Product Specifications

Rated displacement			20	22	23	110
Rated displacement	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	3000	3000
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	143	334	430	621
Torque	Maximum output torque	Nm	167	390	502	725
Power	Maximum power	KW	56	131	157	212
Temperature	Allowable temperature of shell	℃	-40 to 50
Temperature	Maximum operating temperature of fuel tank	℃	80
Weight	MF series hydraulic motor Hydraulic oil drainage	kg	34	42	49	49

MF20

PDF

MF22

PDF

MF23

PDF

MF110

PDF

detail displaY

Hydraulic Motor

MF23 Hydraulic Motor

Hydraulic Motor Manufacturer

Industrial Hydraulic Motor

Product Application

Concrete Mixer Truck

Cotton Picker

Engineering Ship

Cane Grabber Machine

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.
