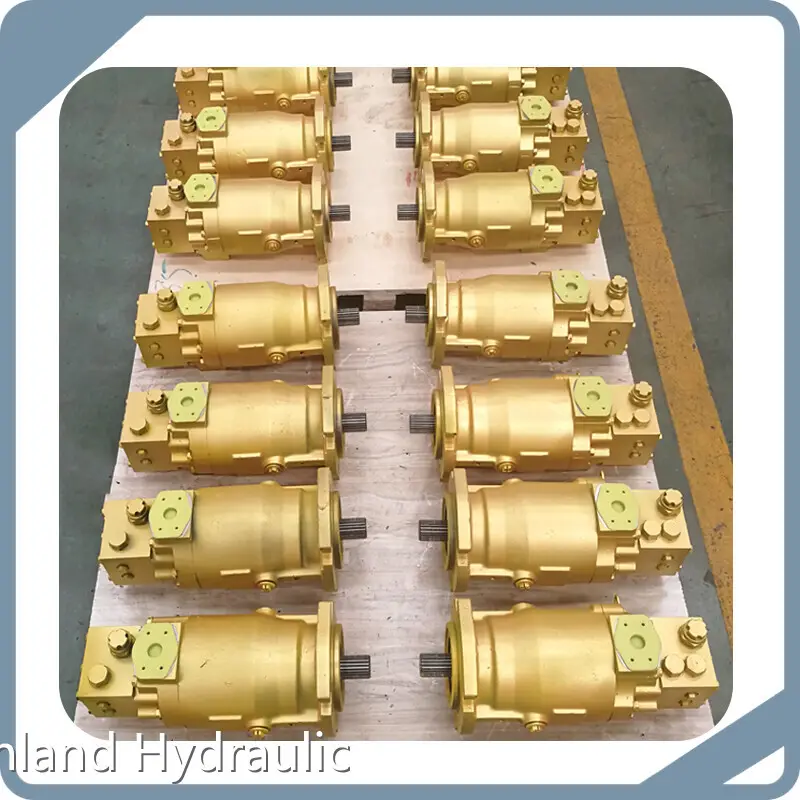

Fixed Displacement Hydraulic Motor 53*34*43cm by Highland Hydraulic 1

Fixed Displacement Hydraulic Motor 53*34*43cm by Highland Hydraulic 2

Fixed Displacement Hydraulic Motor 53*34*43cm by Highland Hydraulic 3

Fixed Displacement Hydraulic Motor 53*34*43cm by Highland Hydraulic 4

Fixed Displacement Hydraulic Motor 53*34*43cm by Highland Hydraulic 5

Fixed Displacement Hydraulic Motor 533443cm by Highland Hydraulic

Packaging Details:

Plywood case

Inquiry

Application

Mixer Truck

Dimension(L*W*H)

53*34*43cm

Speed

3000r/min

Operation Mode

Closed Circuit Hydraulic System

Product details of the fixed displacement hydraulic motor

Product Specification

Operation Mode: Closed Circuit Hydraulic System

Speed: 3000r/min

Application: Mixer Truck

Dimension(L*W*H): 53*34*43cm

Product Description

Highland Hydraulic fixed displacement hydraulic motor is made of internationally sourced high quality raw materials. Long operation life absolutely manifests its superior performance. The product meets customer's expectation and now is rather popular in the industry and has a broad market prospect.

HIGHLAND MF SERIES

Closed Circuit Axial Piston Motor Fixed displacement hydraulic motor for closed loop operation

Products Advantages

MF series closed circuit axial piston motor is built to deliver a reliable, high-performance solution for your closed-circuit systems.

Fixed Displacement Hydraulic Motor 53*34*43cm by Highland Hydraulic 7

Product Design

Delivers up to 3800 r/min to meet demanding applications.

Fixed Displacement Hydraulic Motor 53*34*43cm by Highland Hydraulic 8

Low price

We promise the lowest price for new products of the same variety in the world

Fixed Displacement Hydraulic Motor 53*34*43cm by Highland Hydraulic 9

Simplified External Design

Integrated rear cover with protection and wash valves, reducing external setup.

Universal Mounting Compatibility

International standards for installing flanges, shafts, and ports

Product Application

MF series closed axial piston motor is perfect for heavy-duty industrial applications, such as construction machinery and mining equipment. Its high efficiency and reliable performance make it the ideal choice for demanding working environments.

Asphalt side feeder machine

harvester

rice harvester

Hydraulic walking rice harvester

Product Description

- Axial piston motors adopting fixed displacement inclined disc structures are particularly suited to closed-loop hydrostatic transmission systems, providing consistent and dependable performance under rigorous conditions.

- The speed at the motor output shaft accurately matches the input hydraulic flow rate, delivering predictable and controllable performance.

- Torque output varies linearly with the pressure differential across the motor’s hydraulic circuit, allowing for optimal performance and reliability.

MAIN FEATURES

Through axis plunger pump
Hydrostatic transmission device
Manual servo and hydraulic variable control mode

Product Specifications

Rated displacement	MF Series Hydraulic motor model		20	22	23	110
Rated displacement	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	3000	3000
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	143	334	430	621
Torque	Maximum output torque	Nm	167	390	502	725
Power	Maximum power	KW	56	131	157	212
Temperature	Allowable temperature of shell	℃	-40 to 50
Temperature	Maximum operating temperature of fuel tank	℃	80
Weight	MF series hydraulic motor Hydraulic oil drainage	kg	34	42	49	49

MF20

PDF

MF22

PDF

MF23

PDF

MF110

PDF
