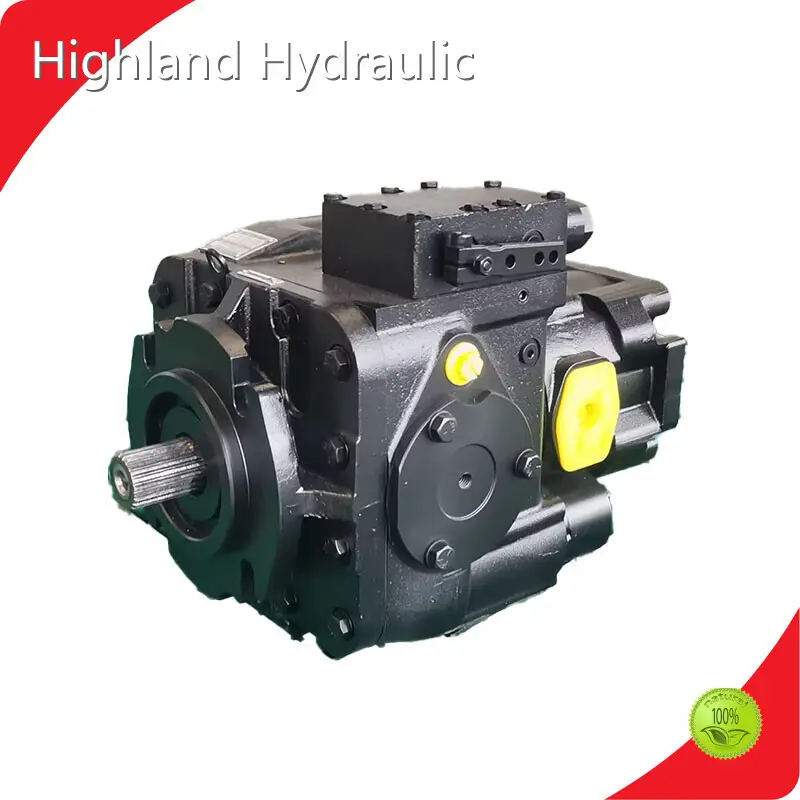

Closed Circuit Hydraulic Pump 35mpa by Highland Hydraulic

Product details of the closed circuit hydraulic pump

Product Specification

Speed: 2900r/min

Pressure: 35mpa

Brand: HIGHLAND

Product Information

Premium raw materials: the raw materials of Highland Hydraulic closed circuit hydraulic pump are well selected and strictly analyzed by our quality control member. They compare with the data through high-intensity testing experiments and then select the best materials. The product has the advantages of long and stable performance and long service life. In order to meet the requirements of clients, Highland Hydraulic has been satisfying them with high quality closed circuit hydraulic pump.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

HPV110 hydraulic variable displacement piston pump delivers precise control and efficiency for hydraulic systems. Its adjustable displacement optimizes energy use, reducing wear and maintenance. Engineered for durability, it ensures reliable operation in demanding applications such as construction, agriculture, and industrial machinery.

Product Features

• HPV110 hydraulic variable displacement piston pump is a high-performance solution designed to meet the demanding needs of industrial and mobile hydraulic systems.
• It offers adjustable displacement, allowing for precise flow control and improved energy efficiency.
• Built with high-quality materials, it ensures durability, reduced wear, and minimal maintenance.
• It is widely used in construction machinery, agricultural equipment, and industrial hydraulic systems.

Product INTRODUCTION

Designed for high-performance hydraulic systems, the HPV110 variable displacement piston pump offers efficient and precise control. Its adjustable displacement optimizes flow and energy use, enhancing overall system efficiency. Built with durable materials, it withstands harsh environments, making it ideal for construction, agriculture, and industrial applications.

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

Read More

HPV30(50)

PDF

HPV70(90)

PDF

HPV110(130)

PDF

detail displaY

HPV110 Piston Pump

Hydraulic Piston Pump

Variable Displacement Piston Pump

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of the HPV110 variable piston pump, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.
