Best Piston Hydraulic Motor Suppliers

Packaging Details:

Plywood case

Delivery Time:

15 work days

Certificate:

CE ISO9001

Inquiry

more products

Hydrostatic Pump

Hydrostatic Motor

Hydraulic Test Bench

Portable Hydraulic Tester

Send your inquiry

Brand

HIGHLAND

Speed

3200r/min

PRODUCT STRENGTH

Products Advantages

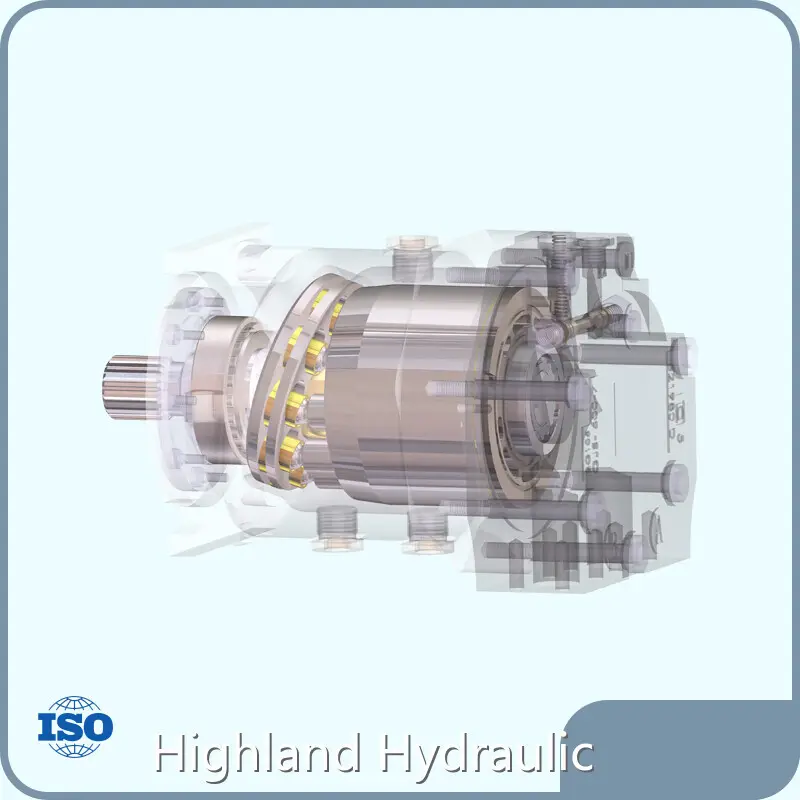

The LMF series closed axial piston motor offers high efficiency, smooth operation, compact design, and exceptional durability, making it the ideal choice for demanding industrial applications.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Best Piston Hydraulic Motor Suppliers 10

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Application

The LMF series closed axial piston motor is perfect for heavy-duty applications such as construction machinery, mining equipment, and industrial drives. Its high efficiency and durability make it an ideal choice for demanding working conditions.

6--8 cubic meter concrete mixer truck

Cotton picker

Mine used loader

Harvester

Milling Machine 3

road roller

Cane Grabber Machine

Company Advantages

· All piston hydraulic motor are produced by high quality material.

· The highest possible quality and consistency of this product are guaranteed through the continuous monitoring of all processes, the strict quality management system, a final quality check, etc.

· Our customers think highly of this product which is of great feature.

Company Features

· Shandong Highland Hydraulic Seiko Co., Ltd is constantly putting efforts on the design and manufacture and becomes one of the most famous designers and manufacturers of piston hydraulic motor.

· Highland Hydraulic has enough confidence to provide customers with superior piston hydraulic motor.

· Superior and stable quality is what Shandong Highland Hydraulic Seiko Co., Ltd wants to bring to customers. Call now!

Application of the Product

Our piston hydraulic motor is available in a wide range of applications.

With a focus on customers' potential needs, Highland Hydraulic provides customers with one-stop solutions.

Product Specifications

Rated displacement			30	50	70	90	110	130	160	200
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130	160	200
Speed	Maximum continuous operating speed (Full load condition)	r/min	3200	3200	3200	3000	2700	2700	2400	2400
	Maximum operating speed (instantaneous)	r/min	3800	3500	3200	3200	2900	2900	2600	2500
	Rated speed	r/min	2500						2200
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	38
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	143	248	334	430	526	621	765	956
Torque	Maximum output torque	Nm	167	278	390	502	613	725	892	1115
Power	Maximum power	KW	56	93	131	157	180	212	224	280
Temperature	Allowable temperature of shell	℃	-40 to 50
Temperature	Maximum operating temperature of fuel tank	℃	80
Weight	LMF series hydraulic motor Hydraulic oil drainage	kg	22	23	33	34	36	38	65	66

Download FIle

PDF

Download FIle

LMF30（50）

PDF

LMF70（90）

PDF

LMF110（130）

PDF

LMF160(200)

PDF

Product Description

The LMF series closed axial piston motor offers high efficiency and reliability for demanding industrial applications. With its compact design and smooth operation, it delivers superior performance and long-lasting durability.

Product Features

* Product design: simple and easy to disassemble, high strength and high pressure resistance, easy to install in series, full range

* Protection valve integrated design: flush valve embedded in the back cover, one-piece design, space-saving.

* Motor mounting interface design in line with international standards, easy to install and operate.

* Commitment to the world's lowest price for new products of the same species

* Can be customized according to customer's demand.

Product Details

Its closed axial piston design, it provides reliable performance and long service life. Its compact size makes it ideal for installations where space is limited.

LMF160（200）-2

LMF160（200）-1

LMF70(90、110、130）-3

Packing & Delivery

To protect the goods, we pack the goods at least three layers. The first layer is film, the second is carton or woven bag, the third is carton or plywood case. Glass: plywood box, Other components: covered by bubble firm bag,packing in carton.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
