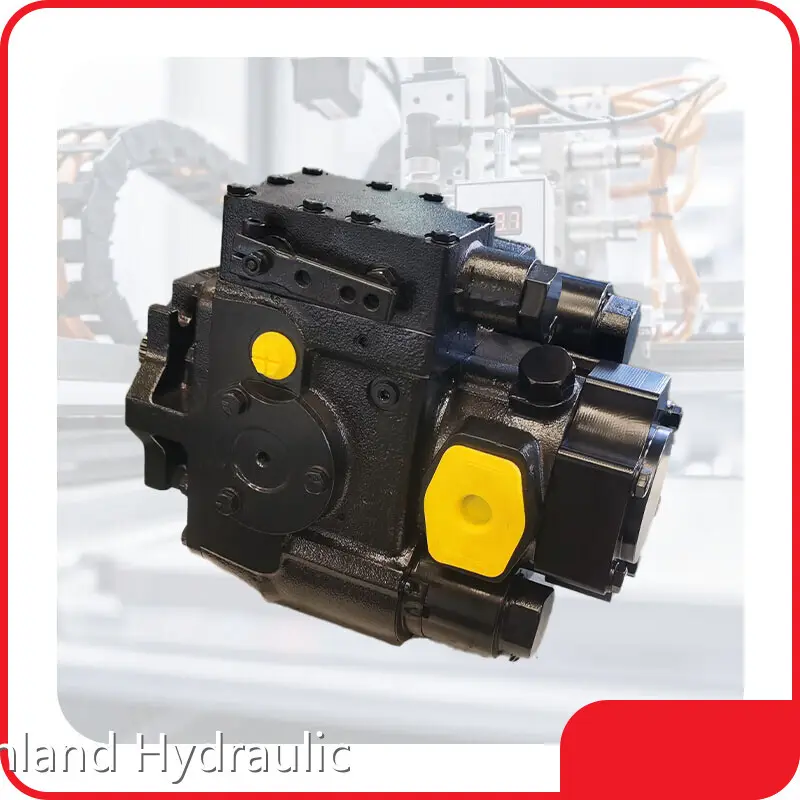

Axial Variable Displacement Pump HPV90 - - Highland Hydraulic

Company Advantages

· Highland Hydraulic axial variable displacement pump is designed based on market demands and customer requirements.

· Our quality experts test this product for high performance.

· Shandong Highland Hydraulic Seiko Co., Ltd offers well-established after sales service for axial variable displacement pump.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland high efficiency axial flow pump delivers smooth, reliable hydraulic performance for agricultural machinery. It supports consistent pressure with lower energy consumption, helping maximize productivity in tractors, harvesters, and irrigation systems.

Product Features

• Highland high-efficiency hydraulic axial flow pumps provide powerful, reliable hydraulic performance for a wide range of farming machinery.

• From tractors and harvesters to sprayers and irrigation systems, axial piston pumps deliver consistent flow and pressure with minimal energy waste.

• Hydraulic axial flow pump ensure smooth operation, reduce system noise, and extend equipment lifespan.

Product INTRODUCTION

Optimized for today’s agricultural machinery, our axial flow pumps provide high-efficiency performance with consistent flow, reduced energy loss, and dependable durability. Ideal for a wide range of field operations, from tillage to irrigation.

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

Read More

HPV30(50)

PDF

HPV70(90)

PDF

HPV110(130)

PDF

detail displaY

Axial Flow Pumps

Hydraulic Axial Piston Pumps

Agricultural Axial Flow Pumps

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of variable piston pump and hydraulic motor, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.
