Axial Piston Type Hydraulic Pump PV22 Wholesale - Highland Hydraulic

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

PV22 hydraulic piston pump delivers superior performance specifically engineered for cement mixer trucks, offering exceptional efficiency, stable pressure output, and reliable hydraulic flow in tough construction environments.

Product Features

• With factory-direct competitive pricing, the PV22 Hydraulic Piston Pump provides cost-effective reliability, ideal for heavy-duty concrete mixing applications.
• PV22 incorporates precision-engineered components for minimal noise and vibration, improving driver comfort and reducing operational fatigue.
• Engineered for maximum productivity, PV22 Hydraulic Pump maintains consistent hydraulic pressure and smooth control, significantly enhancing mixer truck performance and jobsite efficiency.

Product INTRODUCTION

Hydraulic piston pump PV22 is a robust, reliable solution designed specifically for cement mixers, delivering stable pressure control and precise fluid flow for superior mixing performance.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Button

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

PV22 Variable Displacement Piston Pumps

Variable Displacement Piston Pump

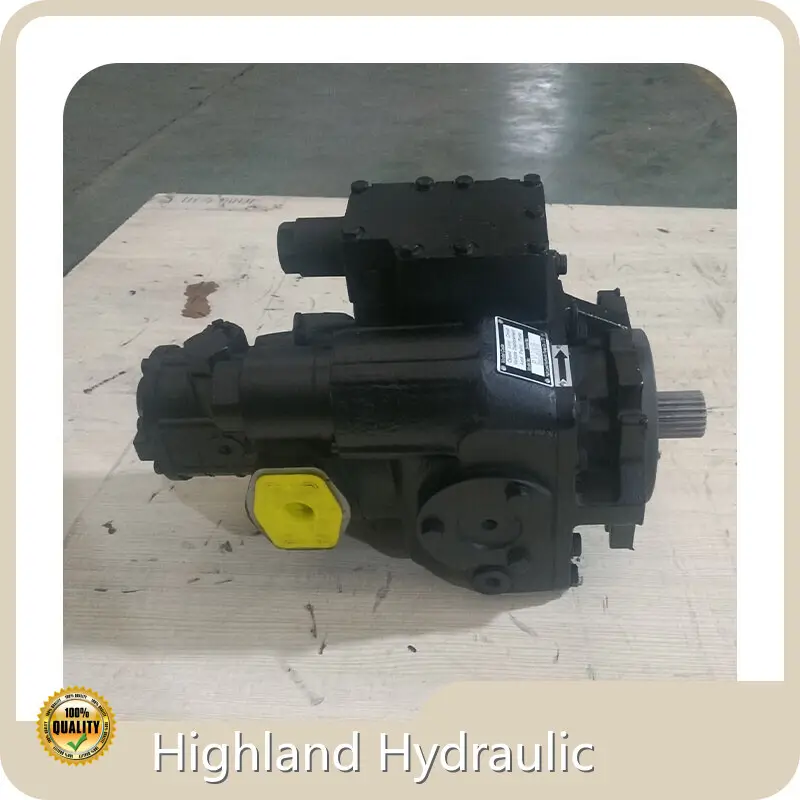

PV22 Hydraulic Piston Pump

Product Application

6-12 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

About Us

Shandong Highland Hydraulic Seiko Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with more than 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.

Packing & Delivery

To protect hydrostatic pump, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

Company Advantages

· The production of Highland Hydraulic axial piston type hydraulic pump is supervised by experienced and skilled staff.

· Because axial piston type hydraulic pump is really economical in price, it will have a bright future.

· The service of Highland Hydraulic has been highly recognized by customers.

Company Features

· Shandong Highland Hydraulic Seiko Co., Ltd is an enterprise integrating product development, market development, manufacturing, and sales of axial piston type hydraulic pump.

· Shandong Highland Hydraulic Seiko Co., Ltd has many years of experience in providing axial piston type hydraulic pump services.

· We intend to provide our customers with the best products and service possible, through continuous improvement. We ensure that our products and services consistently meet customer’s requirements.

Application of the Product

The axial piston type hydraulic pump produced by Highland Hydraulic has a wide range of applications.

We will communicate with our customers to understand their situations and provide them with effective solutions.
