Payment Terms:

T/T, Western Union

Inquiry

more products

Hydrostatic Pump

Hydrostatic Motor

Hydraulic Test Bench

Portable Hydraulic Tester

Send your inquiry

Characteristic

High efficiency,Good stability,Simple layout

Brand

HIGHLAND

Operation Mode

Closed Circuit Hydraulic System

Working Medium

Hydraulic Oil

Product details of the axial piston type hydraulic pump

Product Specification

Operation Mode: Closed Circuit Hydraulic System

Characteristic: High efficiency,Good stability,Simple layout

Working Medium: Hydraulic Oil

Brand: HIGHLAND

Product Information

Highland Hydraulic axial piston type hydraulic pump adopts modernized production methods. The product outperforms its competitors in all respects, such as performance, durability, and so on. Highland Hydraulic dealers stand on the first line of contact with customers.

Superior Quality High Pressure Axial Piston Pump

With Advanced Technology

High-pressure axial piston pump is designed for maximum efficiency, durability, and precise fluid control. With advanced technology, it ensures stable operation and reliability in industrial, construction, and hydraulic applications.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Axial piston pump integrates advanced hydraulic technology to deliver superior pressure control and efficiency. Designed for maximum durability, it features a high-strength casing and wear-resistant components. With an optimized internal structure, it reduces friction and heat generation, ensuring stable performance in demanding environments. Its high-pressure capabilities make it ideal for precision-driven applications.

Product Features

High-pressure axial piston pump is engineered for superior efficiency and longevity.
With cutting-edge technology, it optimizes fluid flow, minimizes energy consumption, and enhances operational stability.
Its robust construction ensures durability under extreme conditions, making it suitable for heavy-duty applications.
Featuring precision engineering and innovative design, it offers smooth operation, reduced noise levels, and excellent thermal stability.

Product INTRODUCTION

Highland axial piston pump offers high efficiency, superior durability, and precise fluid control. It is designed for industrial, construction, and hydraulic applications that require stable, high-pressure operation. Its robust construction ensures long-term performance and reliability.

Product specification

Rated displacement			30	50	70	90	110	130
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
Torque	Maximum output torque	Nm	227	353	480	606	749	885
power	Continuous Power	KW	41	72	98	128	137	162
power	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70（90）

PDF

HPV110(130)

PDF

detail displaY

High Pressure Axial Piston Pump

HPV70 Hydrostatic Piston Pump

High Pressure Axial Piston Pump

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

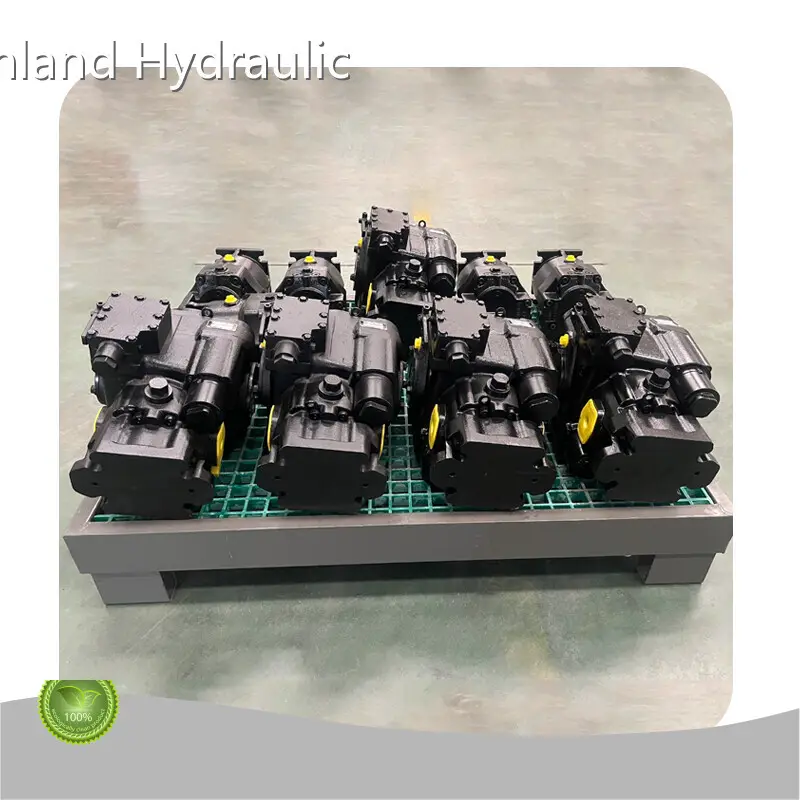

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.

Company Feature

• Our company was founded in and our business scope has been expanding continuously. However, our product quality will always stay the same. And we are ready to provide more quality products for consumers wholeheartedly.
• Our products are sold well at home and abroad.
• Highland Hydraulic's goal is to sincerely provide consumers with quality products as well as professional and thoughtful services.
