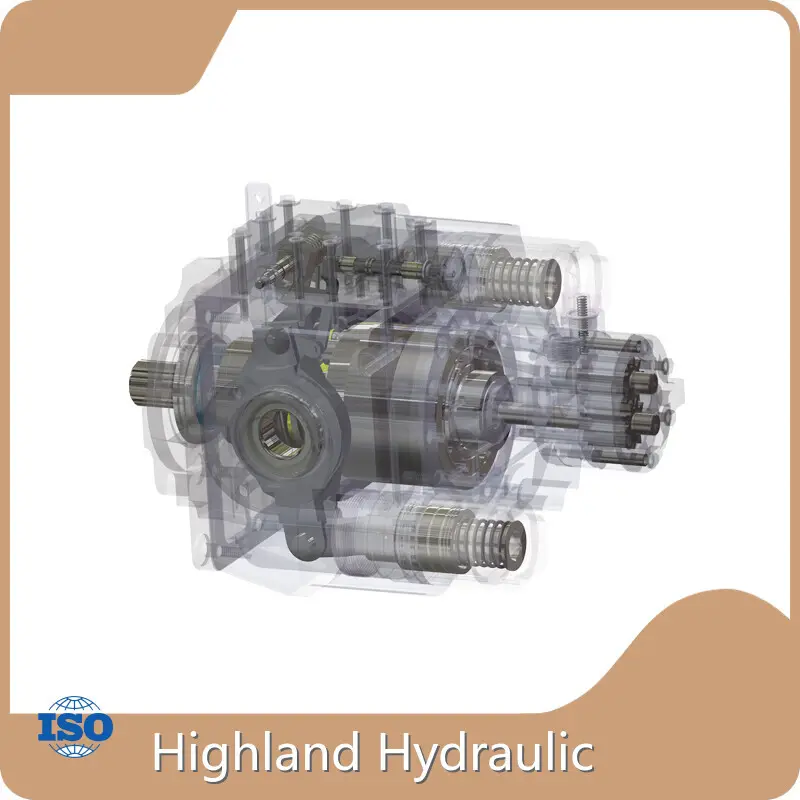

Axial Piston Type Hydraulic Pump High Efficiency by Highland Hydraulic

Company Advantages

· Developed by dexterous professionals utilizing the best materials, Highland Hydraulic axial piston type hydraulic pump is fine in workmanship and attractive in design.

· The product marks the best quality standards in the industry.

· Shandong Highland Hydraulic Seiko Co., Ltd has been committed to the exploration and development of axial piston type hydraulic pump.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Hydrostatic piston pump is designed to meet the rigorous demands of modern construction equipment. The high-strength materials and precision-engineered components provide excellent wear resistance, reducing downtime and maintenance costs. Its efficient design helps optimize energy consumption, making it a cost-effective solution for heavy machinery applications.

Product Features

• Hydrostatic piston pump is a high-efficiency component tailored for construction machinery, offering outstanding pressure stability and fluid transmission.
• Manufactured using advanced engineering techniques, it ensures superior durability, smooth operation, and minimal maintenance.
• Hydraulic pump is widely used in excavators, loaders, and other heavy-duty construction equipment, making it a crucial component for high-performance applications.

Product INTRODUCTION

Highland hydraulic piston pump is an essential component for construction equipment, offering robust performance and efficiency. Built with advanced technology, it enhances operational reliability, reduces wear, and ensures smooth hydraulic power transmission. Designed for heavy-duty applications, it guarantees long-term functionality and minimal downtime.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Read More

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

Hydrostatic Piston Pump

Hydraulic Piston Pump PV22

Construction Equipment Hydraulic Pump

Product Application

6-12 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

About Us

Shandong Highland Hydraulic Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with nearly 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.

Packing & Delivery

To protect hydrostatic pump, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

Company Features

· Shandong Highland Hydraulic Seiko Co., Ltd has evolved into one of the most competitive manufacturers in China. We have earned years of experience in the development and production of axial piston type hydraulic pump.

· Shandong Highland Hydraulic Seiko Co., Ltd has strong technical strength and modern production technology and equipment. Shandong Highland Hydraulic Seiko Co., Ltd has first-class organization and management.

· We firmly believe that we will be your most worthy axial piston type hydraulic pump business partner! Call now!

Product Details

The axial piston type hydraulic pump produced by our company have superior quality, and the specific details of products are presented in the following section.

Product Comparison

Compared with similar products, the axial piston type hydraulic pump produced by Highland Hydraulic has the following advantages.

Enterprise Advantages

Our company has absorbed a group of experienced experts. And they provide a strong foundation for the production of quality products.

Highland Hydraulic abides by the service principle of 'customers from afar should be treated as distinguished guests'. We continuously improve the service model to provide quality services for customers.

Highland Hydraulic always insists on building the brand with quality and developing the business with innovation. We comply with the enterprise spirit to be rigorous, efficient and enterprising. While attaching importance to brand building, we stick to sustainable development. Our commitment is to provide quality products and caring services wholeheartedly.

During the development for years, Highland Hydraulic, founded in has always been focusing on the improvement of product quality and economic efficiency. Now we gain great growth and achievements.

Highland Hydraulic has a good reputation and high-quality products. The products are not only sold domestically but also exported to various regions abroad.
