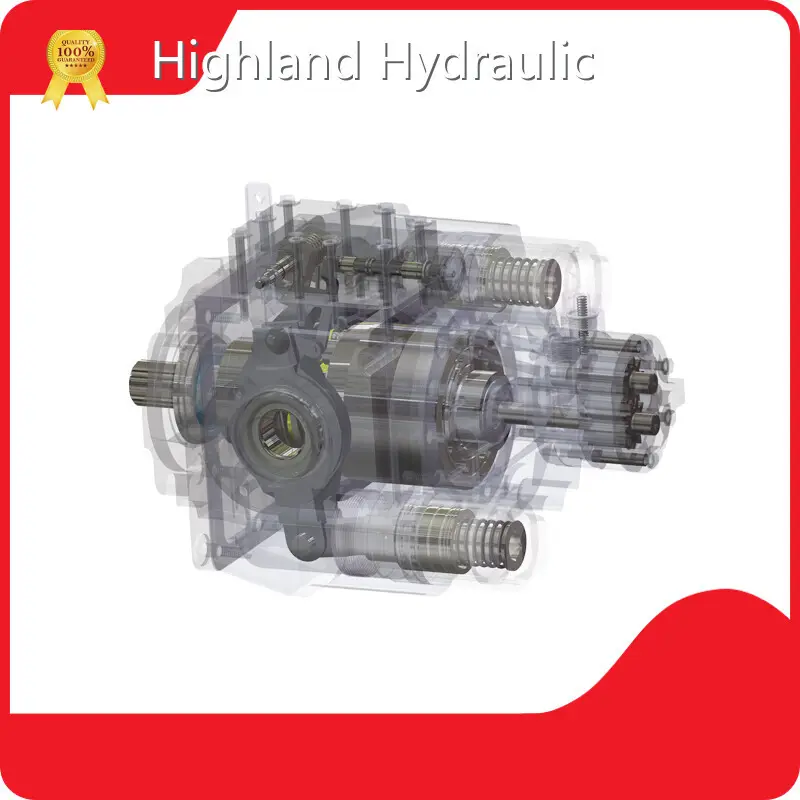

Product details of the axial piston pump

Product Specification

Characteristic: High efficiency

Mode: PV20|PV22|PV23|PV110

Working Medium: Hydraulic Oil

Operation Mode: Closed Circuit Hydraulic System

Product Information

Body frame optimum design and advanced technology application can be seen from our axial piston pump. With its unique style and sophisticated technology, the performance axial piston pump has been magnified. Thanks to our popular axial piston pump, Highland Hydraulic has developed many western partners.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Hydrostatic piston pump is designed to meet the rigorous demands of modern construction equipment. The high-strength materials and precision-engineered components provide excellent wear resistance, reducing downtime and maintenance costs. Its efficient design helps optimize energy consumption, making it a cost-effective solution for heavy machinery applications.

Product Features

• Hydrostatic piston pump is a high-efficiency component tailored for construction machinery, offering outstanding pressure stability and fluid transmission.
• Manufactured using advanced engineering techniques, it ensures superior durability, smooth operation, and minimal maintenance.
• Hydraulic pump is widely used in excavators, loaders, and other heavy-duty construction equipment, making it a crucial component for high-performance applications.

Product INTRODUCTION

Highland hydraulic piston pump is an essential component for construction equipment, offering robust performance and efficiency. Built with advanced technology, it enhances operational reliability, reduces wear, and ensures smooth hydraulic power transmission. Designed for heavy-duty applications, it guarantees long-term functionality and minimal downtime.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Read More

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

Hydrostatic Piston Pump

Hydraulic Piston Pump PV22

Construction Equipment Hydraulic Pump

Product Application

6-12 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine
