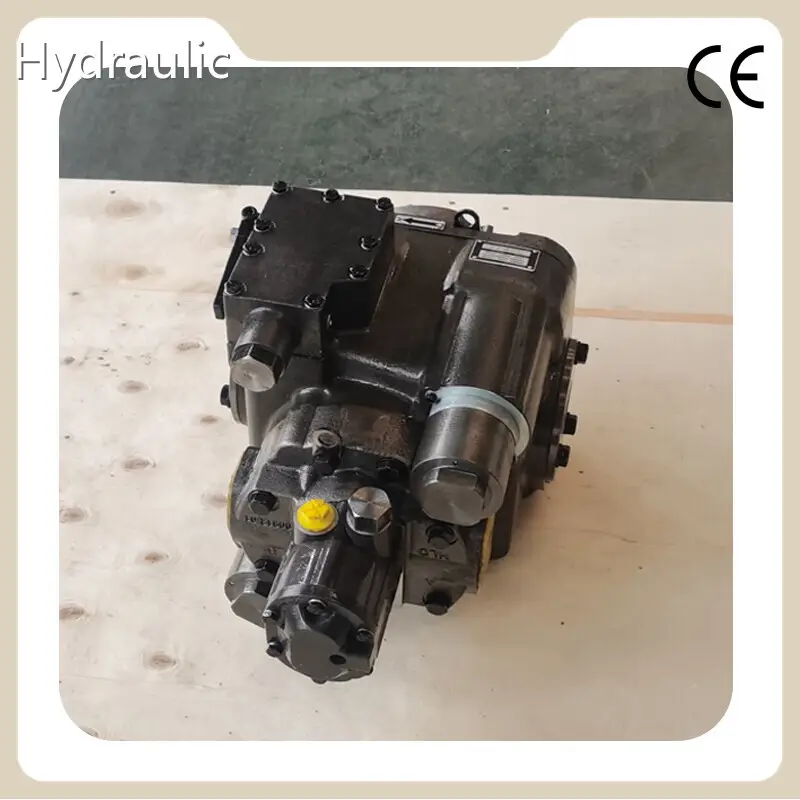

Axial Piston Pump Plywood Case by Highland Hydraulic

Product details of the axial piston pump

Product Specification

Working Medium: Hydraulic Oil

Operation Mode: Closed Circuit Hydraulic System

Type: Axial piston pump

Hydraulic Pump Mode: PV23

Quick Detail

Highland Hydraulic axial piston pump is designed and produced by our engineers with the utilizations of best quality materials and sophisticated tools. The implementation of the quality control system ensures the product to be defect-free. Powerful Highland Hydraulic strictly ensure the implement of quality assurance.

Product Information

After being improved greatly, Highland Hydraulic's axial piston pump is more advantageous in the following aspects.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Built for high-pressure performance, Highland hydraulic power unit features a precision piston pump that delivers consistent flow and exceptional power. Ideal for heavy-duty applications, it ensures stable, efficient operation even under extreme workloads, maximizing output and reliability.

Product Features

• High Pressure Hydraulic Power Unit Hydraulic Piston Pump is engineered to provide consistent, high-performance output in even the most challenging environments.

• With its advanced piston pump design, hydraulic power unit delivers high pressure and exceptionalefficiency, making it perfect for applications that demand strength and stability.

• Hydraulic Piston Pump is suitable for a wide range of uses—from industrial manufacturing and construction machinery to mobile hydraulic systems and agricultural equipment.

Product INTRODUCTION

Designed for long-term durability and multi-purpose functionality, Highland hydraulic power unit hydraulic pump is perfect for diverse applications. From construction to manufacturing, its rugged build and advanced piston pump offer dependable performance in any setting, ensuring lasting operation with minimal wear.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Read More

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

Hydraulic Power Unit

Hydraulic Piston Pump

High Pressure Piston Pump

Product Application

6-12 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

About Us

Shandong Highland Hydraulic Seiko Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with nearly 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.

Packing & Delivery

To protect hydrostatic pump, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

Company Introduction

With the location in de zhou, Shandong Highland Hydraulic Seiko Co., Ltd is a diversified company mainly engaged in Hydraulic pump、Hydraulic motor、Hydraulic test benches management. Highland Hydraulic focuses on the internal management and opens up the market. We actively explore innovative thinking and fully introduce modern management mode. We continuously achieve development in the competition based on strong technical capability, high-quality products, and comprehensive and thoughtful services. Our products are of excellent quality and favorable price, winning a wide recognition. If you want to know more about the products, please contact us!
