Product details of the axial piston pump manufacturers

Product Specification

Application: Walking machinery

Operation Mode: Closed Circuit Hydraulic System

Displacement: 90ml/r

Speed: 3200r/min

Product Introduction

Highland Hydraulic axial piston pump manufacturers is manufactured by the precision machining equipment. The product has to be tested before coming into the market to ensure it meets all national and international regulations, giving you an assurance in its safety and overall performance. Excellent customer service is formed in Shandong Highland Hydraulic Seiko Co., Ltd.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

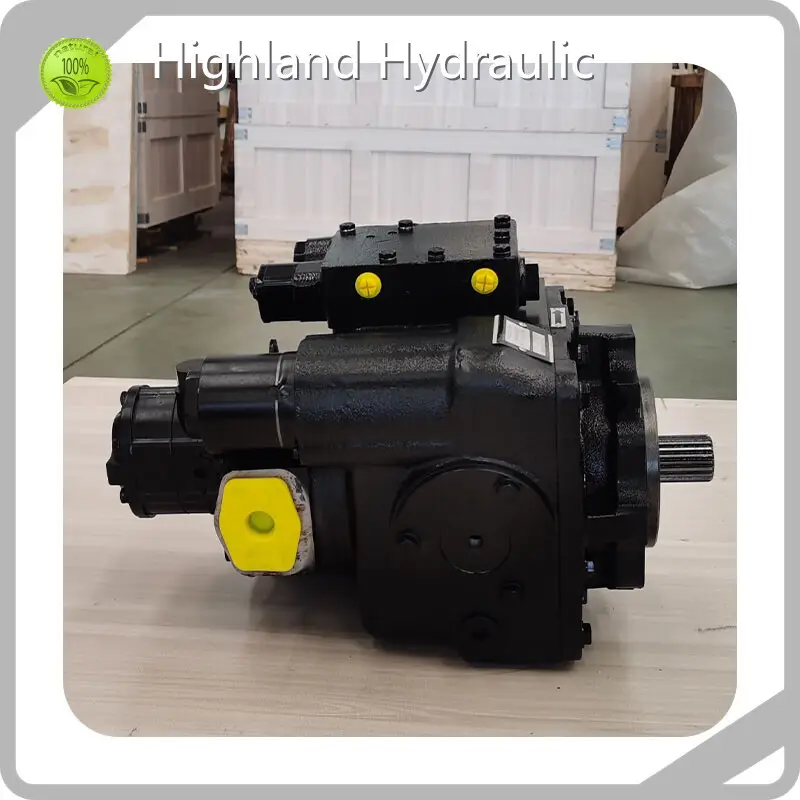

PV23 Axial Piston Pump is the ideal choice for concrete mixer trucks where space limitations exist. Its robust and compact design provides unmatched hydraulic efficiency, easy installation, and minimal maintenance requirements, making it the go-to hydraulic solution for tough jobs.

Product Features

• 1. PV23 Hydraulic Piston Pump delivers outstanding performance tailored specifically for cement mixer trucks, offering superior flow consistency and pressure stability.
• 2. Utilizing advanced piston technology, PV23 achieves high volumetric efficiency and reduced energy consumption, enhancing overall operational economy.
• 3. Built from high-strength, corrosion-resistant materials, PV23 Hydraulic Pump ensures exceptional durability even in extreme working conditions, prolonging equipment lifespan.
• 4. PV23 pump's compact and modular design allows effortless integration into mixer systems, simplifying installation and maintenance routines.
• 5. With factory-direct competitive pricing, the PV23 Hydraulic Piston Pump provides cost-effective reliability, ideal for heavy-duty concrete mixing applications.
• 6. Engineered for maximum productivity, PV23 Hydraulic Pumpmaintains consistent hydraulic pressure and smooth control, significantly e

Product INTRODUCTION

PV23 Axial Piston Pump is crafted to deliver outstanding performance and reliability in challenging mixer truck environments. Engineered with a modular and robust design, it seamlessly integrates with other hydraulic system elements, enabling easy installation, flexible configuration, and simplified servicing

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Button

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

Hydraulic Pump PV22

Hydraulic Piston Pump PV22

Cement Mixer Hydraulic Pump

Product Application

6-12 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

About Us

Shandong Highland Hydraulic Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with nearly 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.

Packing & Delivery

To protect hydrostatic pump, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.
