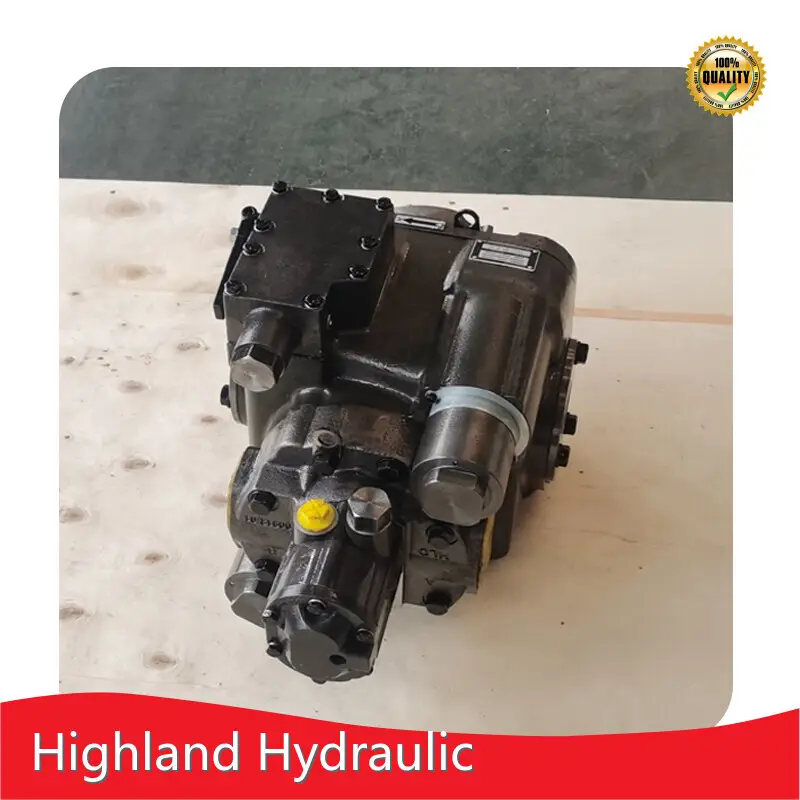

Axial Piston Pump Manufacturers Axial Piston Pump - - Highland Hydraulic 1

Axial Piston Pump Manufacturers Axial Piston Pump - - Highland Hydraulic 2

Axial Piston Pump Manufacturers Axial Piston Pump - - Highland Hydraulic 3

Axial Piston Pump Manufacturers Axial Piston Pump - - Highland Hydraulic 4

Axial Piston Pump Manufacturers Axial Piston Pump - - Highland Hydraulic 5

Axial Piston Pump Manufacturers Axial Piston Pump - - Highland Hydraulic 6

Axial Piston Pump Manufacturers Axial Piston Pump - - Highland Hydraulic 7

Axial Piston Pump Manufacturers Axial Piston Pump - - Highland Hydraulic

Payment Terms:

T/T, Western Union

Inquiry

Characteristic

High efficiency

Type

Axial piston pump

Brand

HIGHLAND

Material

Cast Iron

Product details of the axial piston pump manufacturers

Product Specification

Characteristic: High efficiency

Brand: HIGHLAND

Material: Cast Iron

Type: Axial piston pump

Product Introduction

Our axial piston pump manufacturers is warmly welcomed at home abroad by its fabulous design. The overall performance of the product has been significantly improved after years of efforts in R&D. With strong competitive advantages, Shandong Highland Hydraulic Seiko Co., Ltd's products are welcomed by overseas customers.

High Pressure Hydraulic Power Unit Hydraulic Piston Pump

A powerful, durable, and versatile high-pressure hydraulic unit hydraulic piston pump,

ideal for demanding applications across various industries.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Built for high-pressure performance, Highland hydraulic power unit features a precision piston pump that delivers consistent flow and exceptional power. Ideal for heavy-duty applications, it ensures stable, efficient operation even under extreme workloads, maximizing output and reliability.

Product Features

High Pressure Hydraulic Power Unit Hydraulic Piston Pump is engineered to provide consistent, high-performance output in even the most challenging environments.
With its advanced piston pump design, hydraulic power unit delivers high pressure and exceptionalefficiency, making it perfect for applications that demand strength and stability.
Hydraulic Piston Pump is suitable for a wide range of uses—from industrial manufacturing and construction machinery to mobile hydraulic systems and agricultural equipment.

Product INTRODUCTION

Designed for long-term durability and multi-purpose functionality, Highland hydraulic power unit hydraulic pump is perfect for diverse applications. From construction to manufacturing, its rugged build and advanced piston pump offer dependable performance in any setting, ensuring lasting operation with minimal wear.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
Rated displacement	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
Torque	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
Power	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

Hydraulic Power Unit

Hydraulic Piston Pump

High Pressure Piston Pump

Product Application

6-12 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

About Us

Shandong Highland Hydraulic Seiko Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with nearly 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.

Packing & Delivery

To protect hydrostatic pump, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.

What is the supply ability for the Hydraulic Piston Pumps?

The supply ability for the Hydraulic Piston Pumps is 200 Sets per month.

Company Advantage

• Our company was founded in After the continuous development for years, we have broken through various difficulties, accumulated rich experience and achieved excellent results. Now, we take a high position in the industry.
• Highland Hydraulic's location enjoys a comprehensive traffic network, which is good for the distribution of products.
• Highland Hydraulic not only produces high-quality products but also provide professional after-sales services.
Highland Hydraulic sincerely invites customers from all walks of life to cooperate with us.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
