Product details of the axial piston pump fixed displacement
Product Specification
Characteristic: Good stability
Dimension(L*W*H): 53*34*43cm
Type: Axial piston pump
Pressure: 35mpa
Product Description
axial piston pump fixed displacement takes the high-end line, mainly sold to overseas markets. It turns out to be effective that our QC team has been always focusing on its quality. Shandong Highland Hydraulic Seiko Co., Ltd uses scientific manufacturing processes in axial piston pump fixed displacement production process.
MPV hDRAULIC PUMP
product description
- Highland Hydraulic Pump Co., Ltd. is dedicated to axial piston variable displacement pumps, and its products are easy to operate.
- Most of the component technology for MPV hydraulic pump products comes from SAUER SUNDSTRAND static hydraulic drive PV22 variable piston pump and MF22 motor products from the United States. The connection size and performance parameters are completely interchangeable, and the rated pressure can reach 42MPa.
WHY CHOOSE US?
Product Characteristics
Easy Maintenance and Safety: Our high-pressure relief valve is built into the pump’s rear cover, giving you easy access for maintenance and added pressure cut-off protection for system safety.
Product SPECIFICATIONS
|
Rated displacement |
|
30 |
50 |
|
|
Maximum displacement |
ml/r |
30 |
50 |
|
|
Speed |
Maximum continuous operating speed (Full load condition) |
r/min |
3500 |
3500 |
|
Rated speed |
r/min |
2500 |
||
|
Minimum continuous operating speed |
r/min |
500 |
||
|
Pressure |
Rated working pressure |
Mpa |
35 |
|
|
Maximum working pressure (instantaneous) |
Mpa |
42 |
||
|
Continuous working pressure ( Δ P) |
Mpa |
30 |
||
|
Allowable shell pressure (absolute) |
Mpa |
Constant0.25，Peak value0.5 |
||
|
Torque |
Continuous output torque (Under continuous work pressure) |
Nm |
162.3 |
252.3 |
|
Maximum output torque |
Nm |
227 |
353 |
|
|
Power |
Continuous Power |
KW |
41 |
72 |
|
Maximum power |
KW |
57 |
87 |
|
|
Temperature |
Allowable temperature of shell |
℃ |
80 |
|
|
Maximum operating temperature of fuel tank |
℃ |
70 |
||
|
Angle |
Maximum inclination angle of the inclined plate |
° |
± 18 ° |
|
|
Weight |
MPV series hydraulic pump Hydraulic oil drainage |
kg |
45 |
46 |

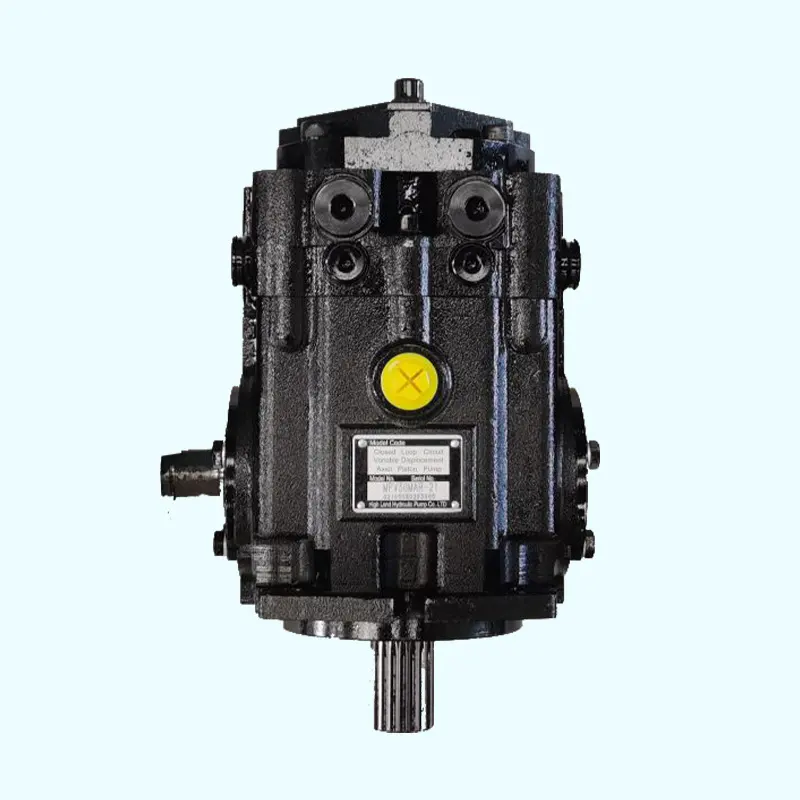

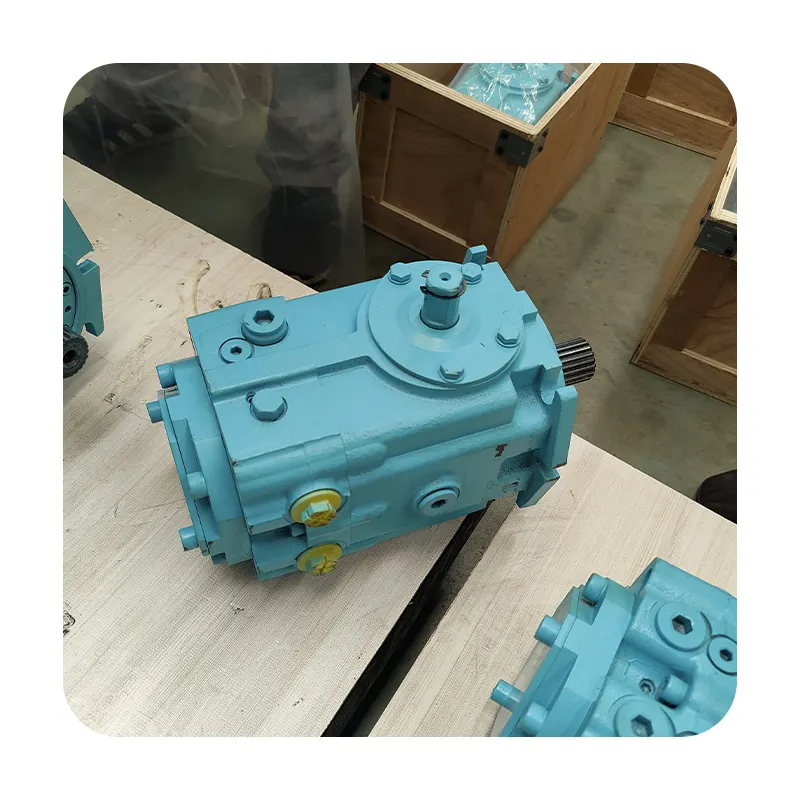

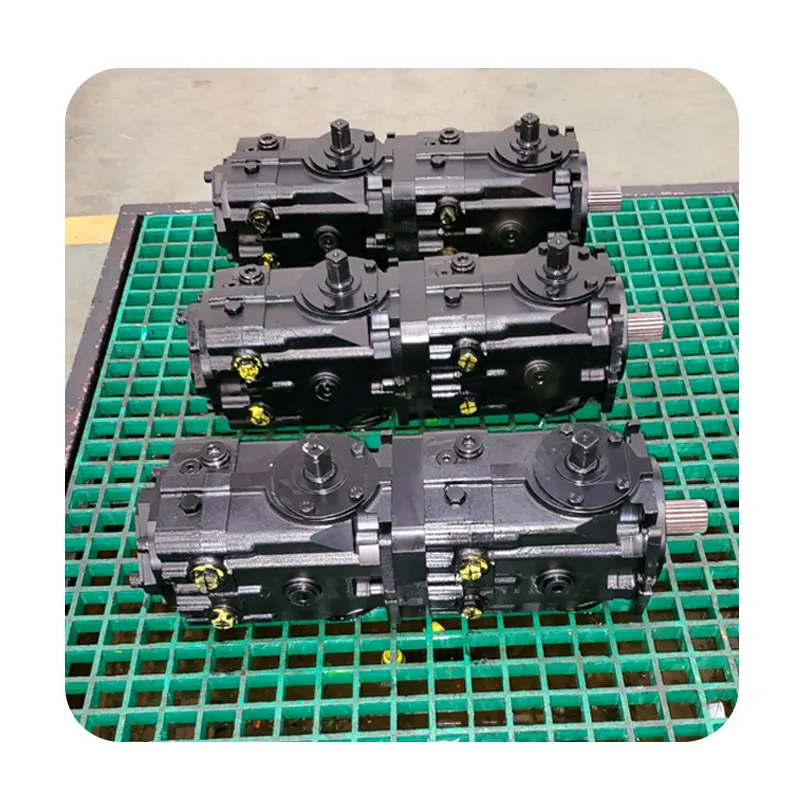

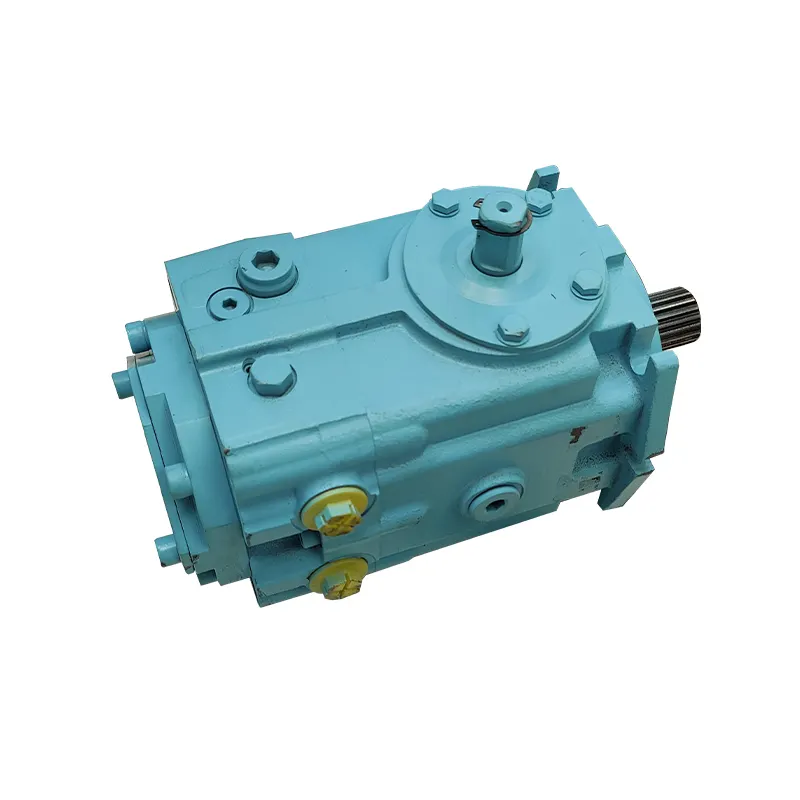

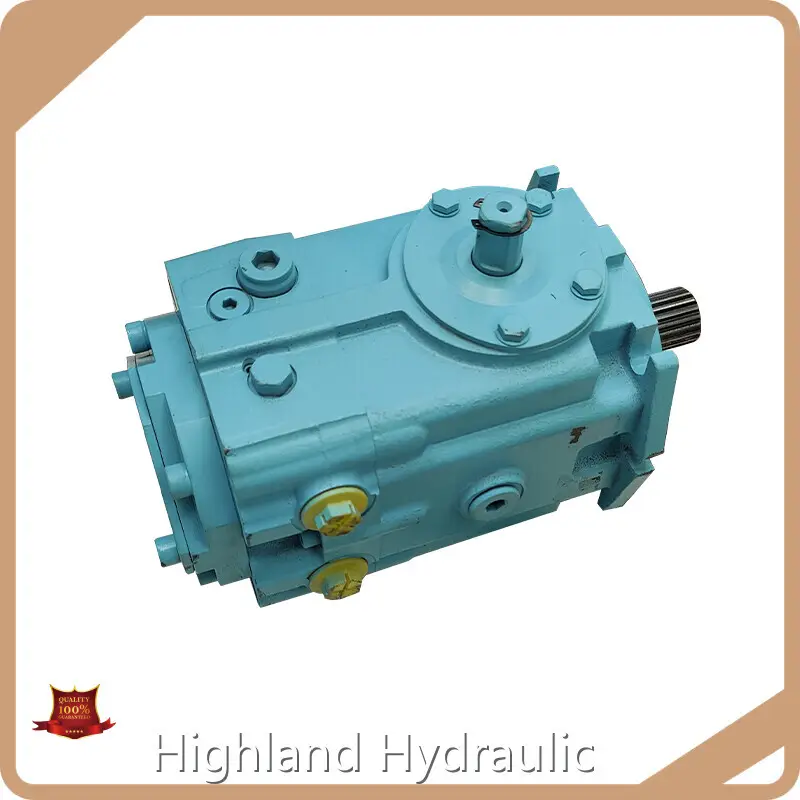

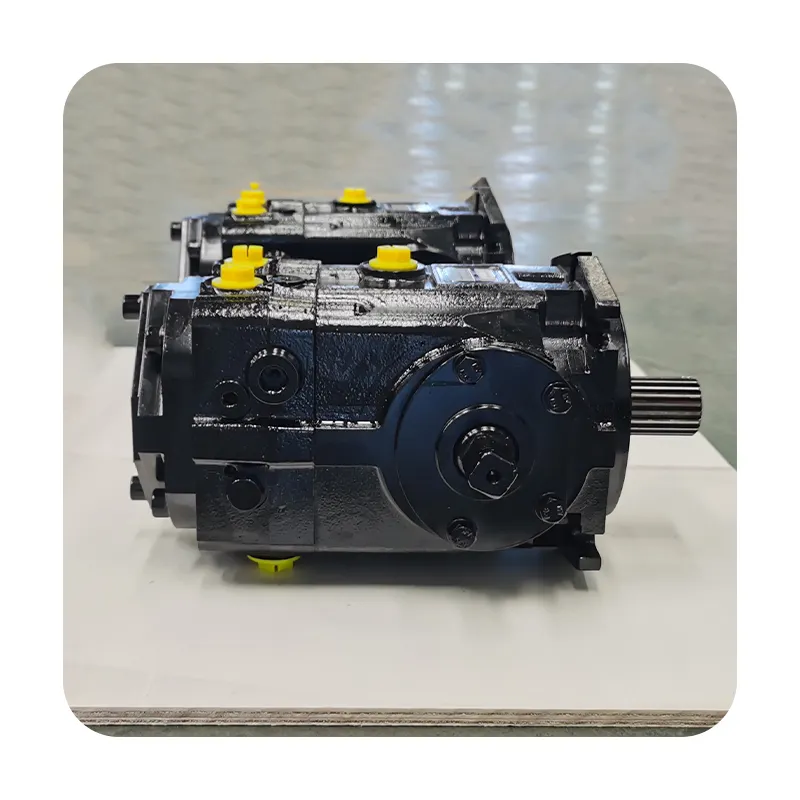

PRODUCT DISPLAY
Product Design: Simple and easy to disassemble, high strength and high pressure resistance, easy to install in series, with a wide range of varieties
mPV pUMP INTRODUCTION
CONTROL MODE
- Manual servo
- electric proportional servo
- hydraulic servo,
- modular replacement of control valves
HYDRAULIC PUMP
FEATURES
- Easy Maintenance and Safety: Our high-pressure relief valve is built into the pump’s rear cover, giving you easy access for maintenance and added pressure cut-off protection for system safety.
- Customizable Design: We can customize the MPV pump’s rear cover to support specific control functions in your hydraulic systems, so you get exactly what you need.
- Contamination-Resistant: Designed to perform in harsh conditions, the MPV pump’s strong internal structure keeps it running smoothly, even in challenging environments.
- Built to Last: Made from high-quality materials and engineered for durability, the MPV pump’s components are tough, wear-resistant, and built for a long service life.
- Simple Structure for Easy Service: With a straightforward design, the MPV pump is easy to assemble, disassemble, and maintain, keeping service time and costs low.
Product Application
MPV Series is versatile across many applications
Construction Equipment: Perfect for concrete mixers, rollers, pavers, loaders, and dozers.
Agriculture and Landscaping: Reliable for harvesters, mowers, and forage machines.
Mining Operations: Built for hydrostatic-driven dump trucks, tunnel loaders, and port conveyors.
Designed for any closed-circuit system that needs smooth, adjustable speed control.
HYDRAULIC PUMP
Key Parameters
- Displacement (ml/r): 30, 50, 70, 90, 110, 130, 160, 180, 200
- Rated pressure (Mpa): 35
- Max. pressure (Mpa): 42
HYDRAULIC PUMP
Installation interface
- The design of each installation interface of the pump complies with international standards and is easy to operate according to installation
- Non standard customization can be made according to customer needs
About Highland Hydraulic
Shandong Highland Hydraulic Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with nearly 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.
Packing & Delivery
To protect hydrostatic pump, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.
FAQ
The target market of our brand has been continuously developed over the years. For more information, please reach our team, we are more than happy to help.
Company Advantage
• Highland Hydraulic enjoys good natural conditions, geographic location and social environment with abundant resources and traffic convenience.
• Our company has experienced and competent management team and various technical teams. Besides, we have a variety of advanced operating equipment. All this provides conditions for our product production and overall development.
• We have established a professional service team to provide customers with speedy, professional and comprehensive services. Furthermore, we help customers with the grasp of a better understanding and use of products.
We are committed to guaranteeing the product quality and after-sales service. Welcome to contact us for cooperation!
