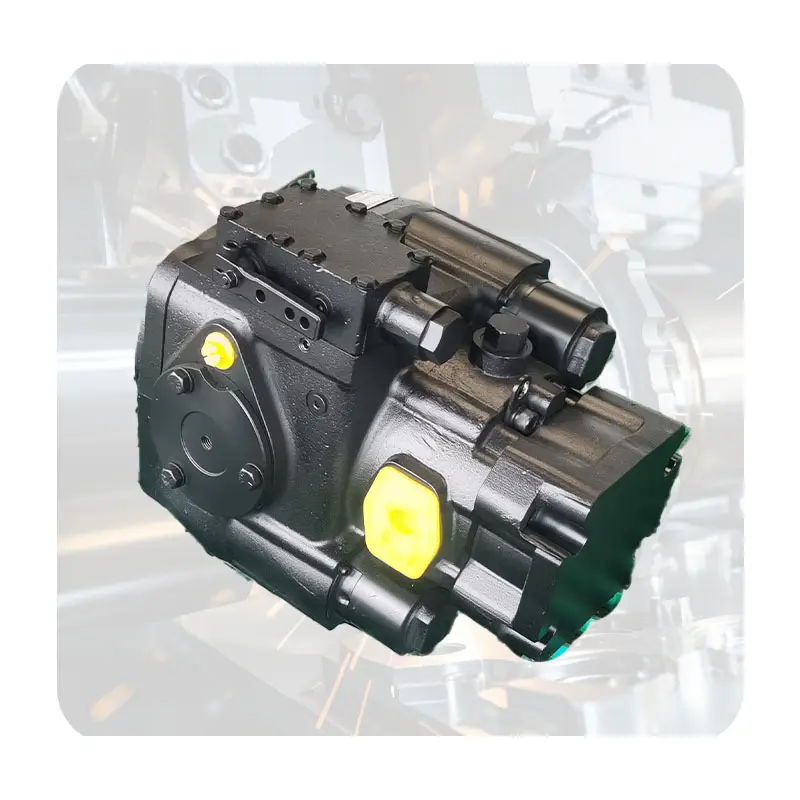

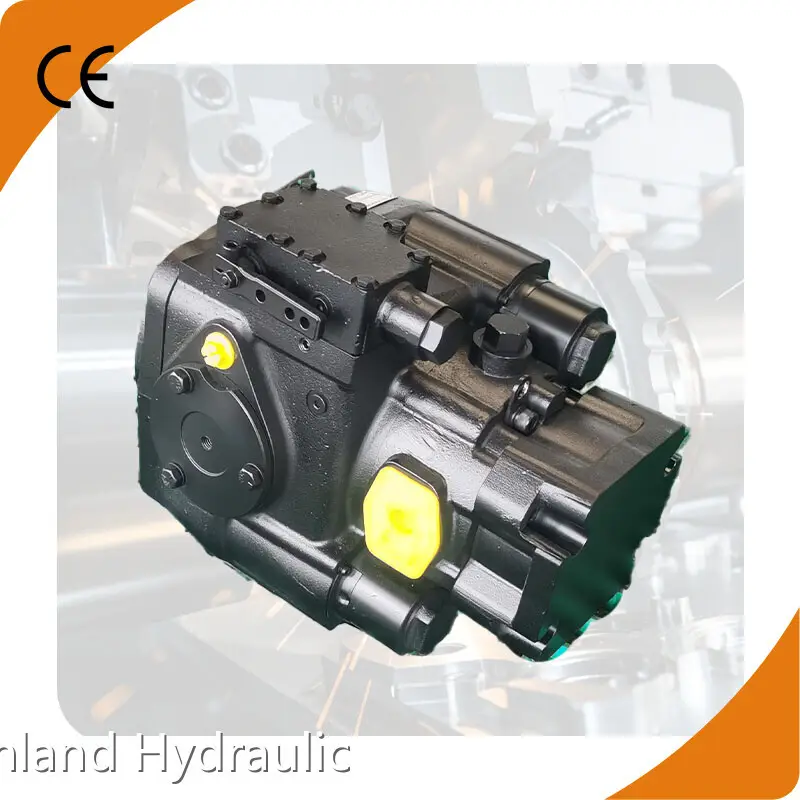

Axial Piston Pump Fixed Displacement Plywood Case by Highland Hydraulic

Company Advantages

· After many times of iterations, sole weight of axial piston pump fixed displacement'body frame is effectively decreased.

· Implementing quality management on the product helps reduce customers' costs.

· The product has received much attention since its launch and is considered to be more successful in the future market.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Hydrostatic pump features variable displacement capabilities, allowing precise flow control for efficient power management. With multiple control modes, it adapts to different system requirements, ensuring optimal performance. Its robust construction enhances durability, while advanced technology reduces noise and improves efficiency. Suitable for industrial and mobile applications, it offers smooth and reliable operation.

Product Features

• Hydraulic Variable Displacement Piston Pump is engineered for superior performance, allowing adjustable flow rates and pressure settings to meet diverse hydraulic system requirements.
• With multiple control modes, including pressure, load-sensing, and electronic control, it enhances efficiency and flexibility.
• Its high-quality construction ensures durability, reduced energy consumption, and smooth operation.
• Variable displacement hydraulic pump is widely used in construction machinery, industrial automation, and hydraulic power systems.

Product INTRODUCTION

Designed for demanding hydraulic applications, this variable displacement piston pump provides exceptional efficiency, adaptability, and control. It features multiple control modes, ensuring precise operation and energy savings. With a strong, durable design, it is ideal for industrial machinery, construction equipment, and hydraulic power systems.

Product specification

Rated displacement			30	50	70	90	110	130
	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
	Maximum output torque	Nm	227	353	480	606	749	885
power	Continuous Power	KW	41	72	98	128	137	162
	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70（90）

PDF

HPV110(130)

PDF

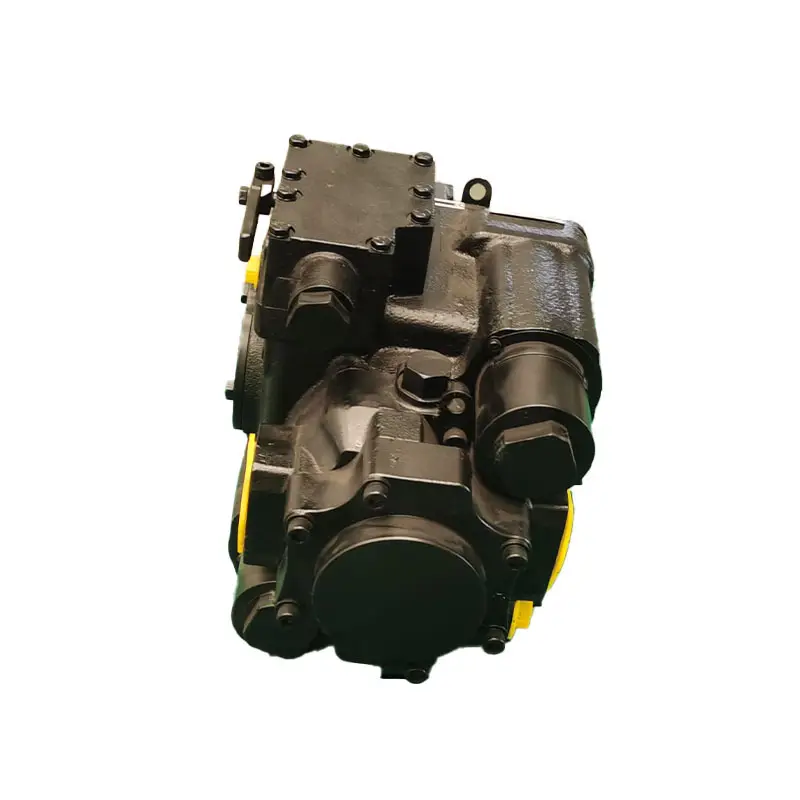

detail displaY

Hydraulic Piston Pump

Variable Displacement Piston Pump

Variable Displacement Hydraulic Pump

Hydraulic Variable Displacement Pump

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

Company Features

· Shandong Highland Hydraulic Seiko Co., Ltd is a Chinese manufacturer focused on supplying quality axial piston pump fixed displacement. Years of development have witnessed our growth in this industry.

· Highland Hydraulic spares no effort into the production of axial piston pump fixed displacement. By mastering advanced technology, Highland Hydraulic is able to produce axial piston pump fixed displacement with superior performance.

· Customer satisfaction is what we pursue. In order to provide them suitable and targeted products and services, we often conduct market surveys to get an insight into customers' needs and concerns.

Application of the Product

The axial piston pump fixed displacement produced by Highland Hydraulic is widely used in the industry.

Highland Hydraulic has many years of industrial experience and great production capability. We are able to provide customers with quality and efficient one-stop solutions according to different needs of customers.

Product Comparison

The axial piston pump fixed displacement of Highland Hydraulic has the following advantages, compared with similar products in the market.

Enterprise Advantages

Our company has extensively taken excellent talents in, and we established a highly educated management team of high quality and efficiency. Based on the modern management concept, our management staff are committed to leading our company to develop faster and better.

Based on the principle of 'customer first', our company is committed to providing quality and perfect service for customers.

Highland Hydraulic's tenet is 'integrity, pragmatism, innovation, high efficiency'. The quality policy is to survive with credibility and develop with quality'. Based on the market and sincerity-based management, we look forward to working with customers and creating a win-win situation.

Ever since the establishment in Highland Hydraulic has always been insisting on the original dream and belief. During the development, we are actively seeking for improvement and overcoming all kinds of hardships. In this way, we have formed our own modern development path.

Our products are sold well in many provinces, cities and autonomous regions in China. Moreover, we operate export business in Southeast Asia, the Middle East, Africa and other countries and regions.
