Axial Piston Pump Fixed Displacement Cast Iron by Highland Hydraulic

Product details of the axial piston pump fixed displacement

Product Specification

Material: Cast Iron

Working Medium: Hydraulic Oil

Operation Mode: Closed Circuit Hydraulic System

Hydraulic Pump Mode: HPV70

Product Description

This Highland Hydraulic axial piston pump fixed displacement is sturdily constructed to provide optimum efficiency to the user. The product is proven to function timelessly on a basis of its reasonable design and fine craftsmanship. It can be used for a long time without breakdown. Owing to our prompt delivery of these quality products we have enjoyed a good fame.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

HPV70 axial piston pump sets the standard for reliable, continuous hydraulic performance. Its optimized structure ensures high efficiency, precise control, and durability, making it an excellent choice for industrial and mobile hydraulic systems that require consistent operation and minimal downtime.

Product Features

• HPV70 axial piston pump delivers exceptional performance and reliability.
• Utilizing advanced hydraulics, it achieves precise fluid control, high efficiency, and consistent power output.
• Precision-engineered components ensure smooth, quiet, and stable performance under prolonged operation.

Product INTRODUCTION

HPV70 series is optimized for superior operational efficiency, featuring precision-machined components that reduce internal friction and energy loss. This efficiency translates to lower operating costs and improved productivity in heavy-duty applications.

Product specification

Rated displacement			30	50	70	90	110	130
	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
	Maximum output torque	Nm	227	353	480	606	749	885
power	Continuous Power	KW	41	72	98	128	137	162
	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70（90）

PDF

HPV110(130)

PDF

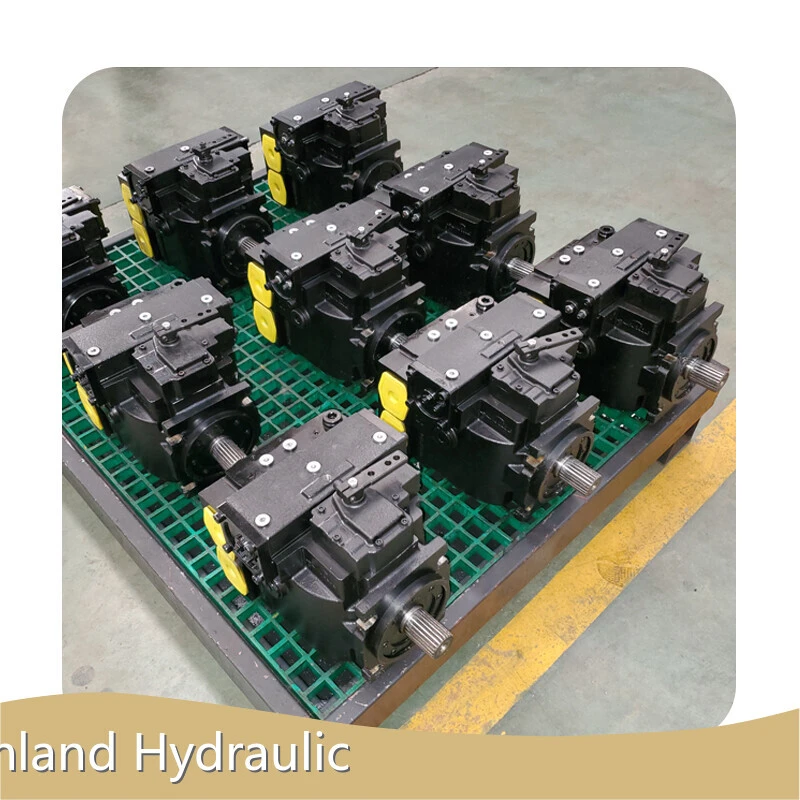

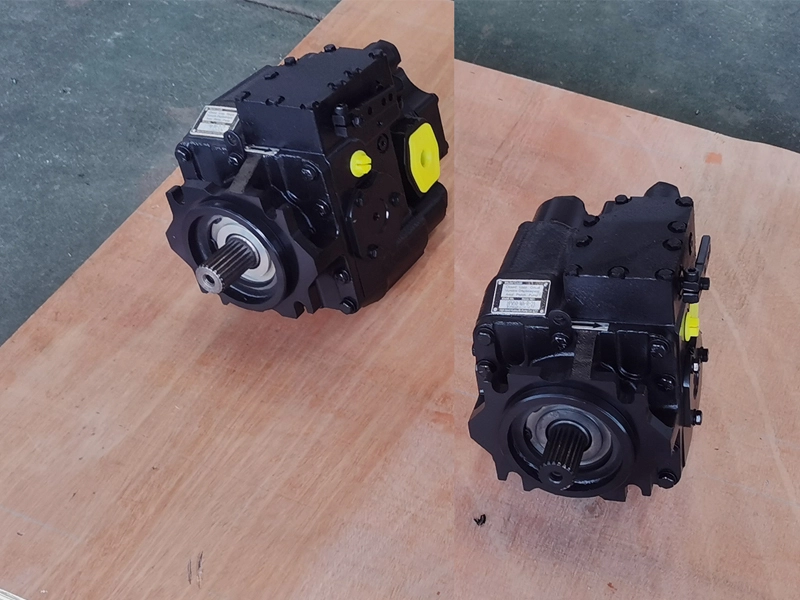

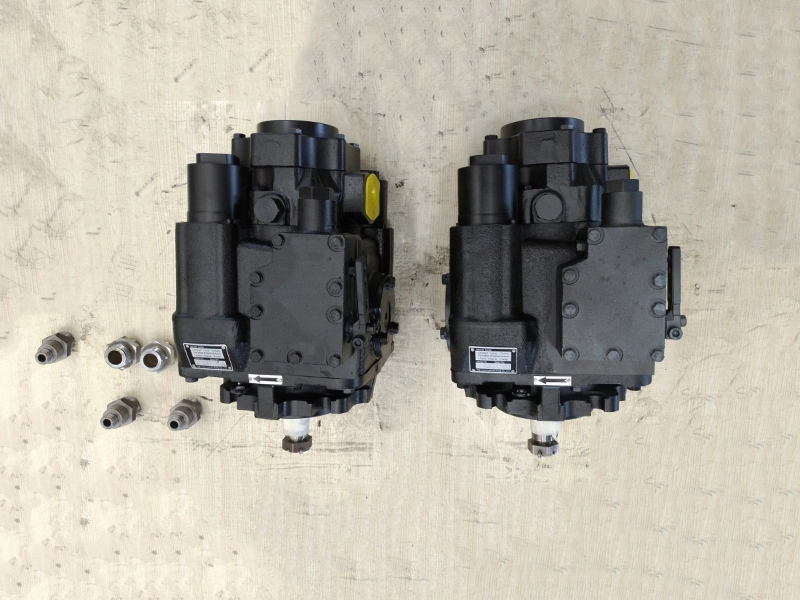

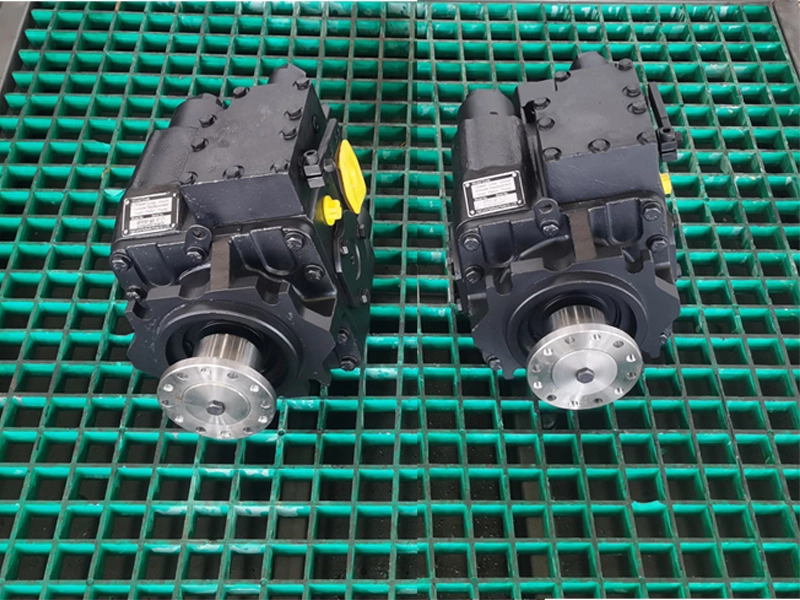

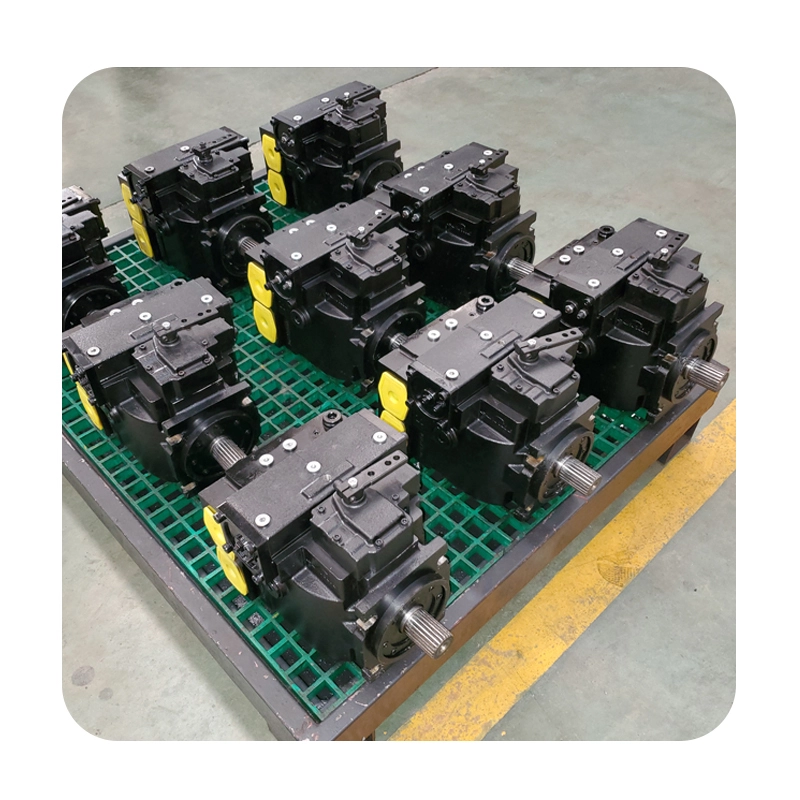

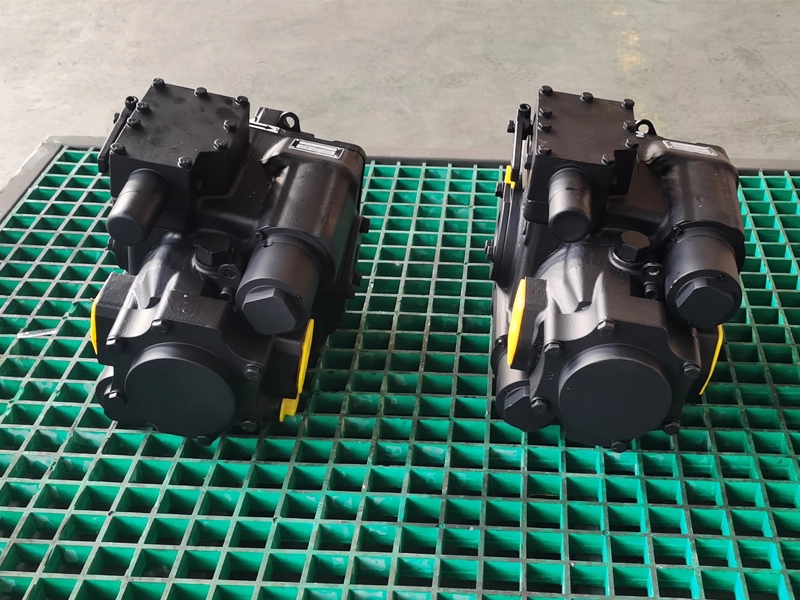

detail displaY

High Pressure Axial Piston Pump

HPV70 Hydrostatic Piston Pump

High Pressure Axial Piston Pump

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.
