Axial Piston Pump Fixed Displacement Axial Piston Pump by Highland Hydraulic

Product details of the axial piston pump fixed displacement

Product Specification

Function: Power components of hydraulic system

Type: Axial piston pump

Brand: HIGHLAND

Working Medium: Hydraulic Oil

Product Introduction

Highland Hydraulic axial piston pump fixed displacement is fabricated from optimum raw material supplied from top-grade vendors. It has exemplary quality as it is produced with testing equipment and production technology. . Through the nationwide sales network, the product is widely recommended among customers with its huge benefits.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

High-performance Variable Swash Plate Hydrostatic Pump is designed to meet the needs of material handling systems. With precise flow control, it adapts to varying operational conditions, ensuring reliability and energy efficiency. Its robust construction makes it ideal for demanding environments, offering reduced maintenance and downtime.

Product Features

• Variable Swash Plate Pump is designed to offer exceptional versatility and reliability in material handling equipment.
• Featuring advanced technology, this pump provides smooth and efficient flow control, reducing energy consumption while ensuring high operational reliability.
• Hydraulic pump's variable displacement capability enables optimal performance under varying load conditions, making it ideal for a range of applications such as construction, mining, and industrial machinery.
• Its robust construction ensures durability, even in harsh environments, reducing downtime and maintenance costs.

Product INTRODUCTION

Variable Swash Plate Pump is a key component in material handling equipment, providing optimal performance through variable displacement. Engineered for durability and efficiency, it ensures smooth operation across different conditions, resulting in lower energy consumption and improved system functionality.

Product specification

Rated displacement			30	50	70	90	110	130
	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
	Maximum output torque	Nm	227	353	480	606	749	885
power	Continuous Power	KW	41	72	98	128	137	162
	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70（90）

PDF

HPV110(130)

PDF

detail displaY

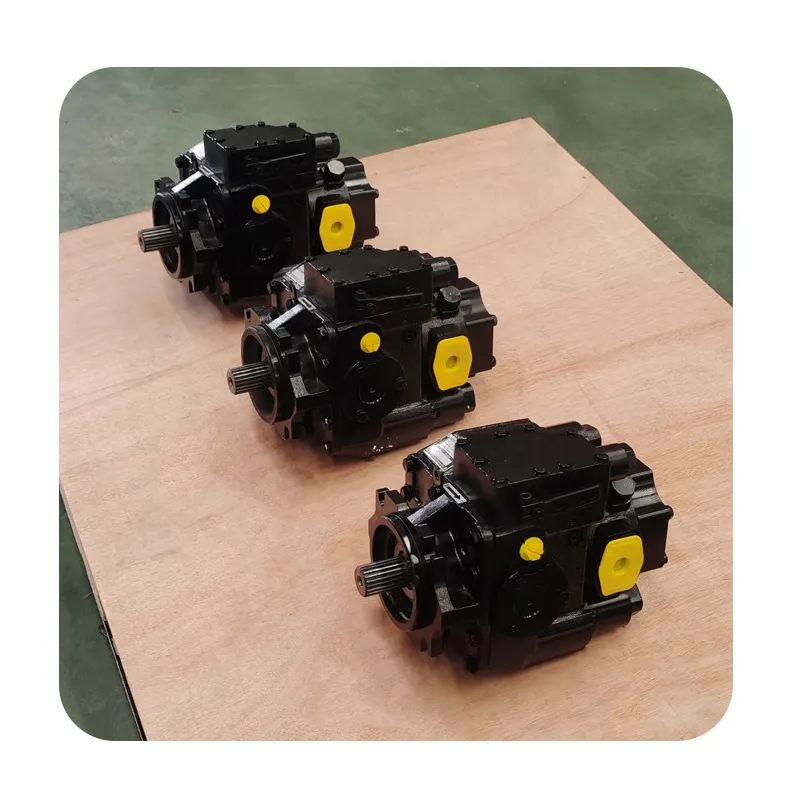

Swash Plate Piston Pump

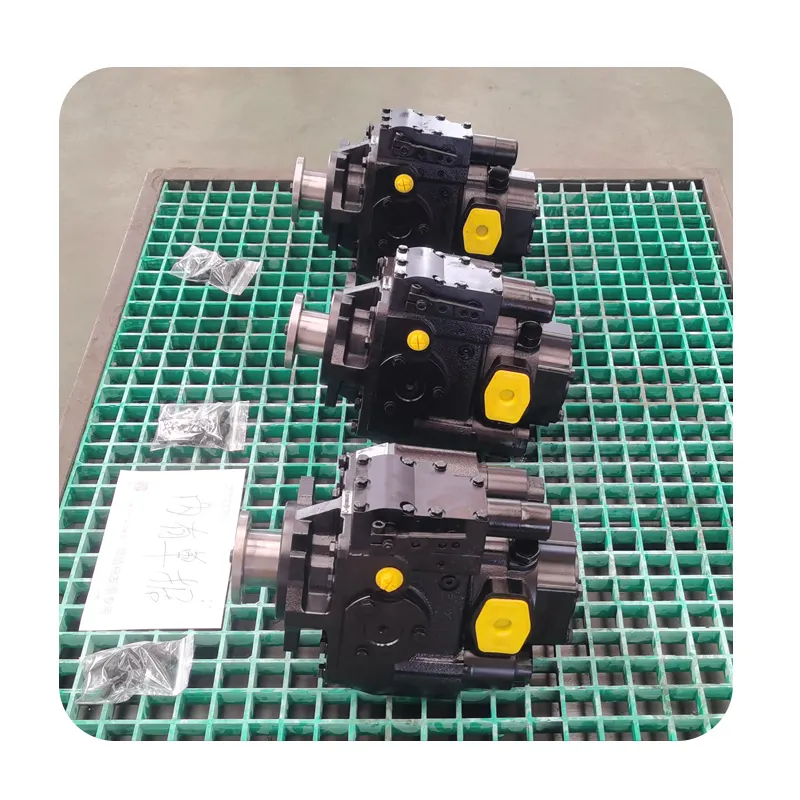

Variable Swash Plate Hydraulic Pump

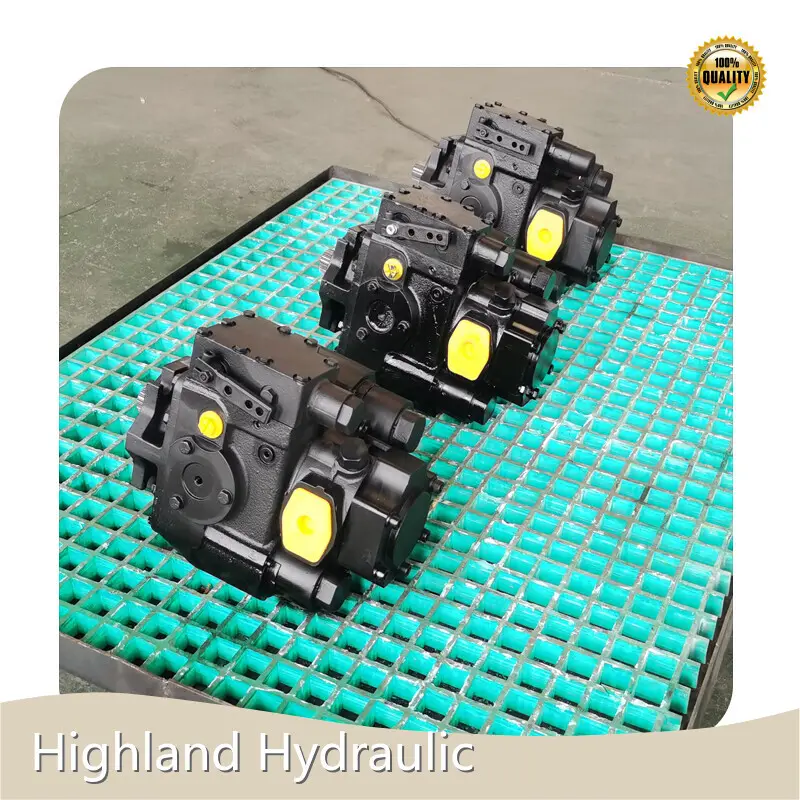

Variable Swash Plate Piston Pump

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

Company Feature

• Our company's products are widely praised by domestic and foreign customers. We have a full coverage in the domestic market and the products are also exported to many countries and regions in Central Asia, Southeast Asia and others.
• Since founded in Highland Hydraulic has gone through a difficult time of years. Now, we have strong technology strength, good economic returns, and high social reputation. All this makes our company the important representative of the industry and one of the important contributors to China's economic power in the new era.
• Highland Hydraulic is committed to providing quality and efficient services for customers.
• Highland Hydraulic has an elite team with high cohesiveness and technical skills, which provides favorable conditions for the development.
Highland Hydraulic sincerely looks forward to your inquiry and cooperation!
