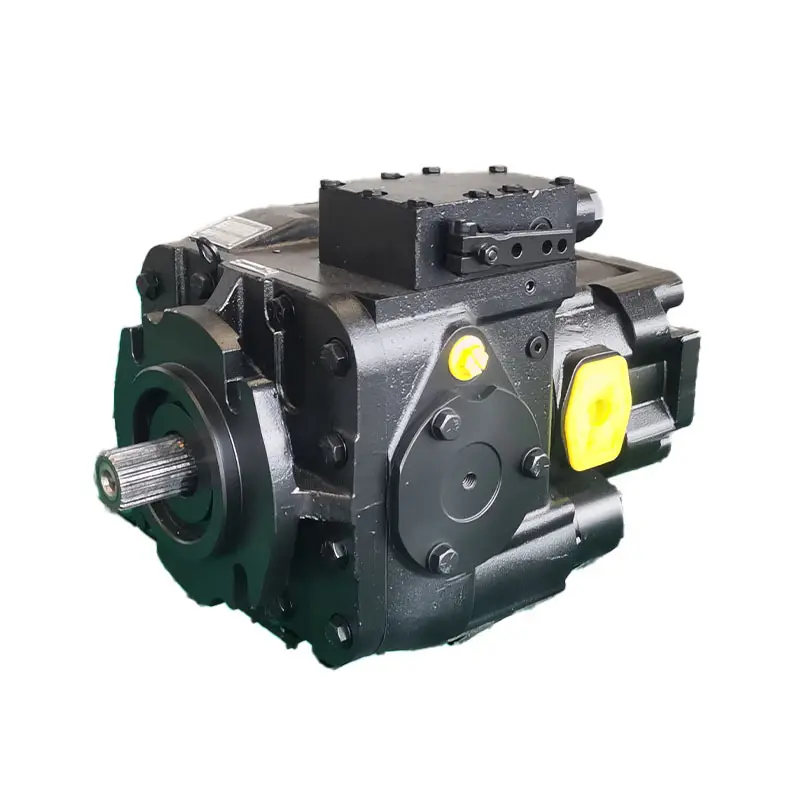

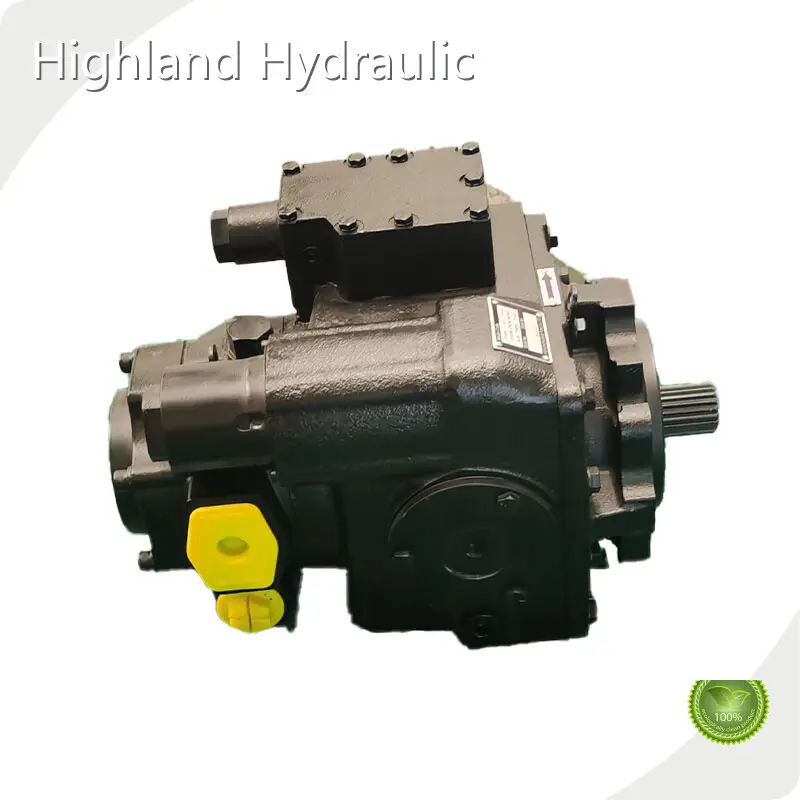

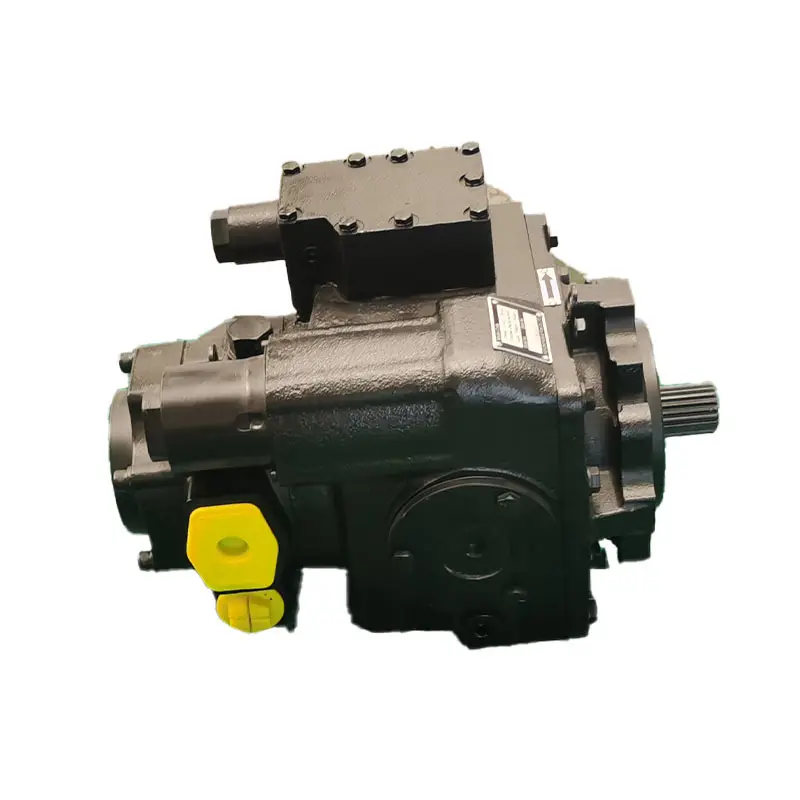

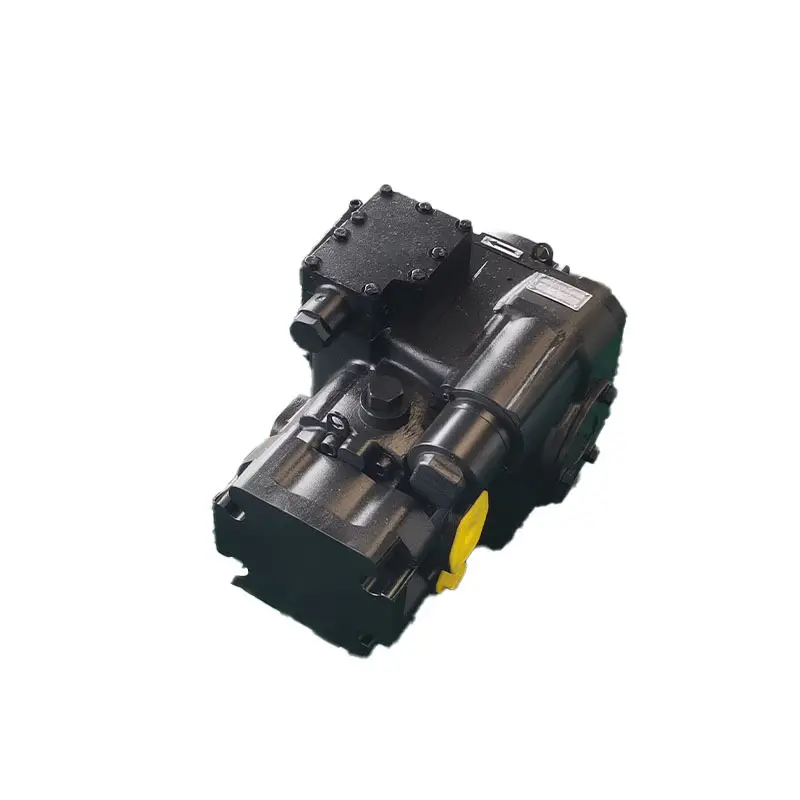

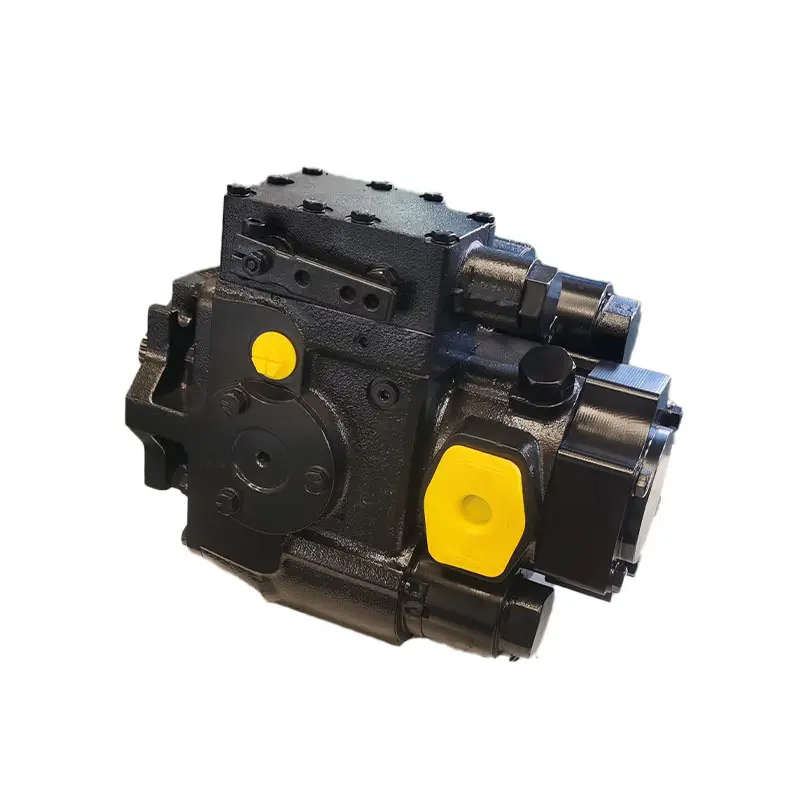

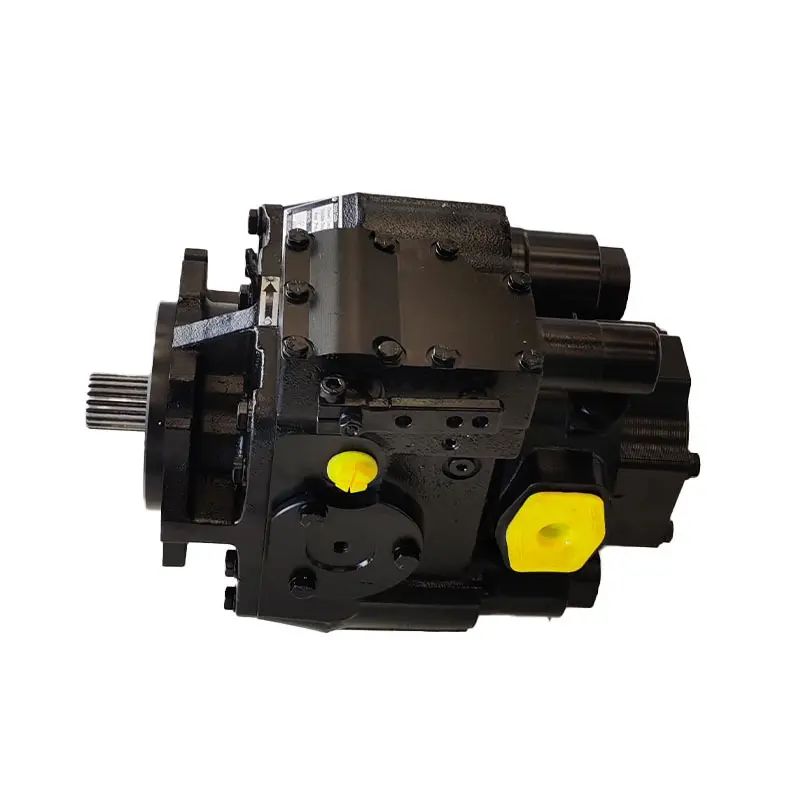

Axial Piston Pump Fixed Displacement 50ml/r - - Highland Hydraulic

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Hydraulic piston pump is specifically designed for sugarcane harvesters, ensuring smooth and efficient operation in the harvesting process. The closed circuit system provides optimal power and control for various functions within the harvester. It’s durable, efficient, and built to handle the tough conditions of the field, helping increase productivity and reduce downtime.

Product Features

• Sugarcane Harvester Closed Circuit System Hydraulic Piston Pump is engineered to enhance the functionality of modern sugarcane harvesters.
• With a robust design, our piston pump ensures smooth and efficient hydraulic operation, providing the necessary power to control various systems within the harvester.
• It is built to withstand the harsh environments of sugarcane fields, offering high durability and minimal maintenance.

Product INTRODUCTION

Designed for sugarcane harvesters, hydraulic piston pump offers a closed circuit system for smooth, high-efficiency performance. Built to withstand demanding field conditions, it ensures reliable power for multiple functions within the harvester. The robust design enhances the overall performance of the harvesting machine, improving productivity while reducing maintenance.

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

Read More

Download FIle

PDF

Download FIle

HPV30(50)

PDF

HPV70(90)

PDF

HPV110(130)

PDF

detail displaY

Closed Circuit System

Harvester Hydraulic Piston Pump

Closed Circuit Hydraulic Pump

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

Company Advantages

· Highland Hydraulic axial piston pump fixed displacement is made of the finest materials that has passed the international tests.

· The highest possible quality and consistency of this product are guaranteed through the continuous monitoring of all processes, the strict quality management system, a final quality check, etc.

· Reasonable prices from Shandong Highland Hydraulic Seiko Co., Ltd will add to your advantage in competition.

Company Features

· Shandong Highland Hydraulic Seiko Co., Ltd becomes well-known globally by its high quality axial piston pump fixed displacement.

· We have our own product development team. They are able to cope with speedy changes on various industrial standards and certification bodies and develop products to new standards.

· We will do all the best to make Highland Hydraulic to be the most famous brand. Inquire online!

Application of the Product

axial piston pump fixed displacement developed and produced by our company can be widely used in various industries and professional fields.

Highland Hydraulic has rich experience in the industry and we are sensitive about customers' needs. Therefore, we can provide comprehensive one-stop solutions based on customers' actual situations.
