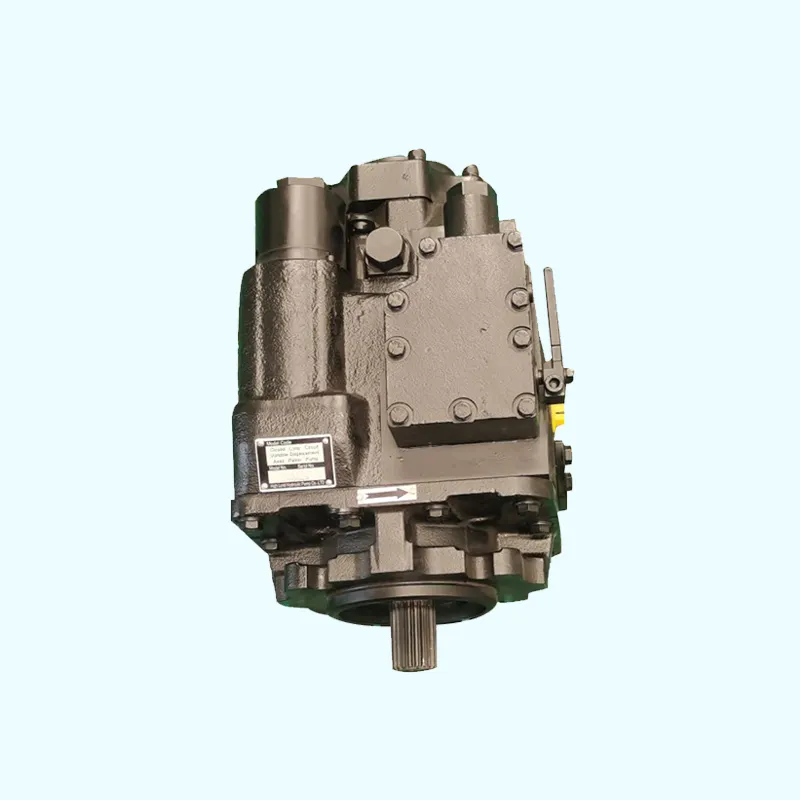

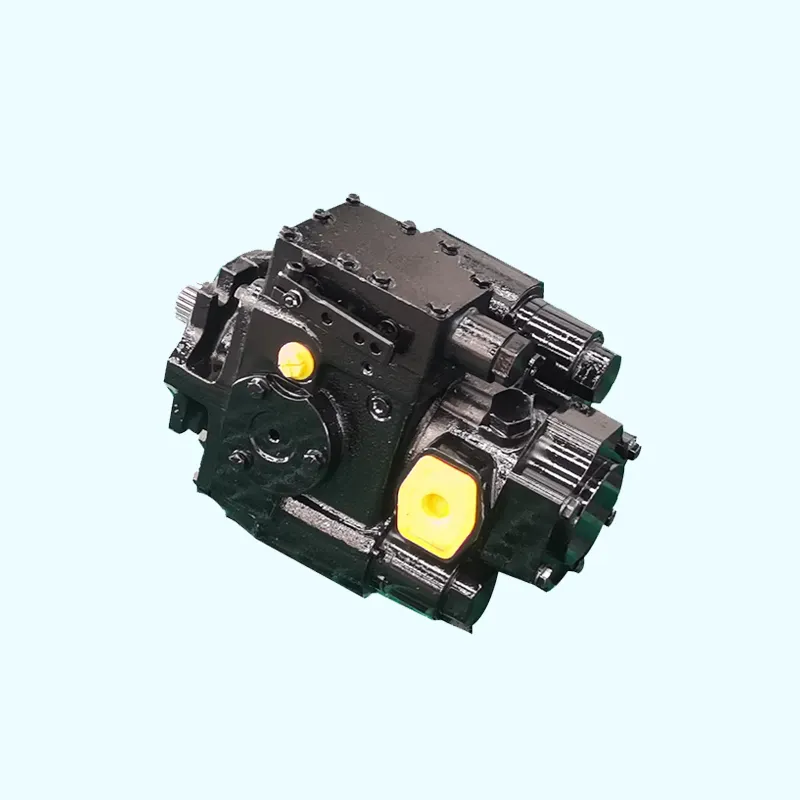

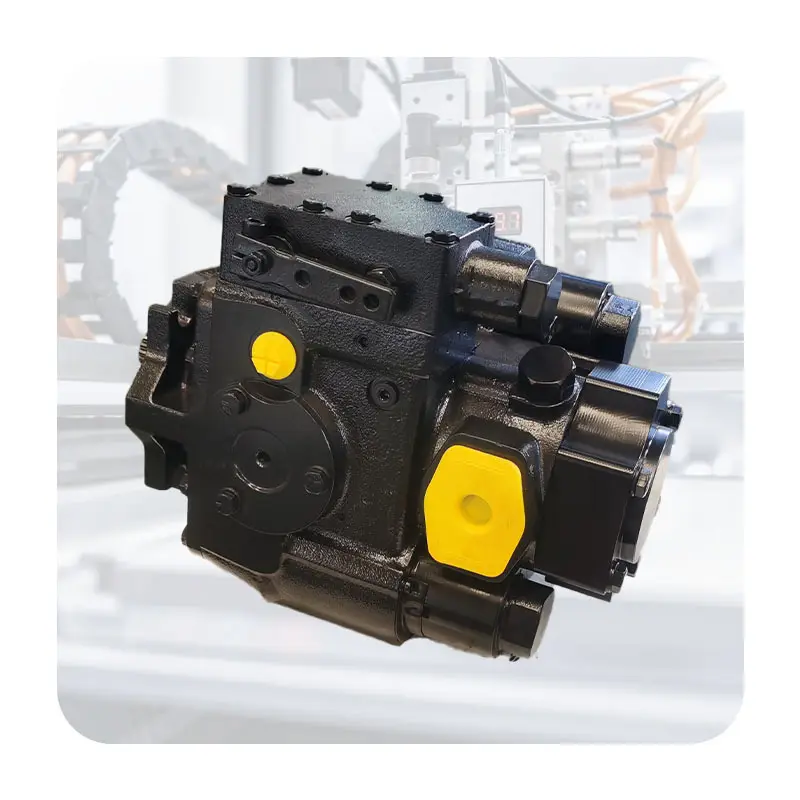

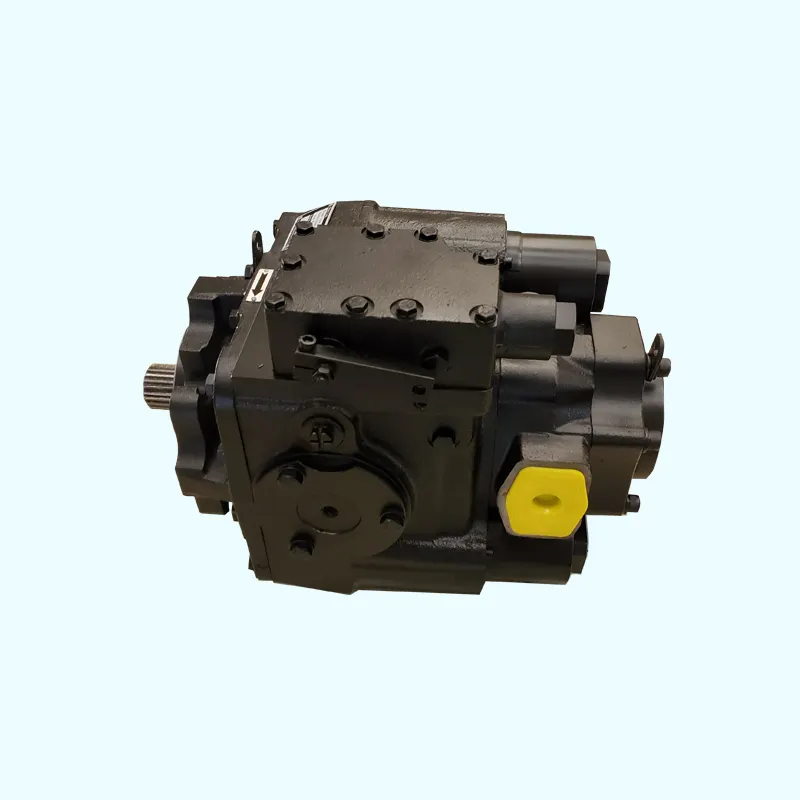

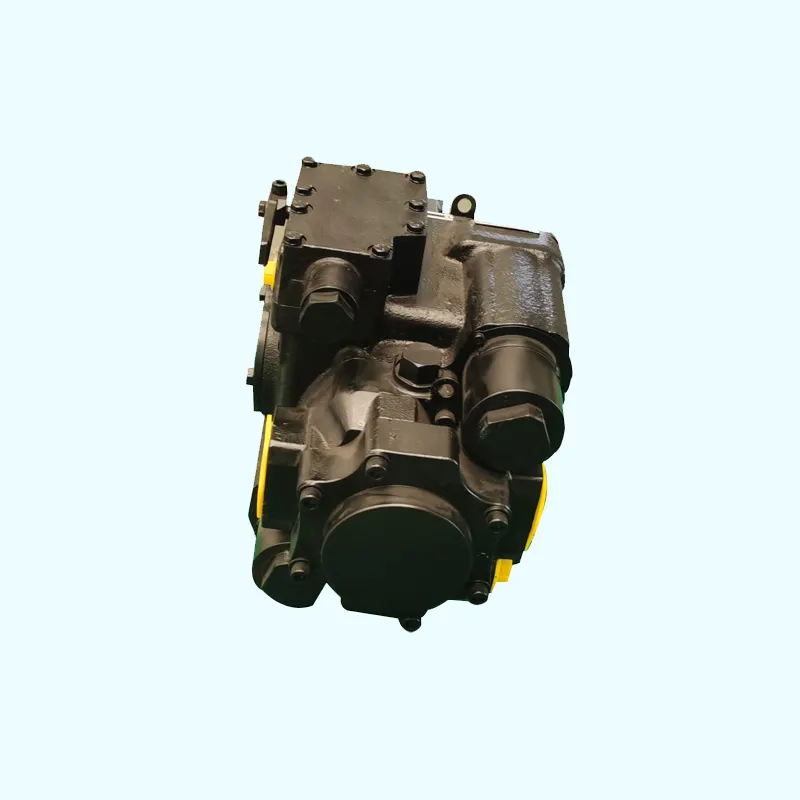

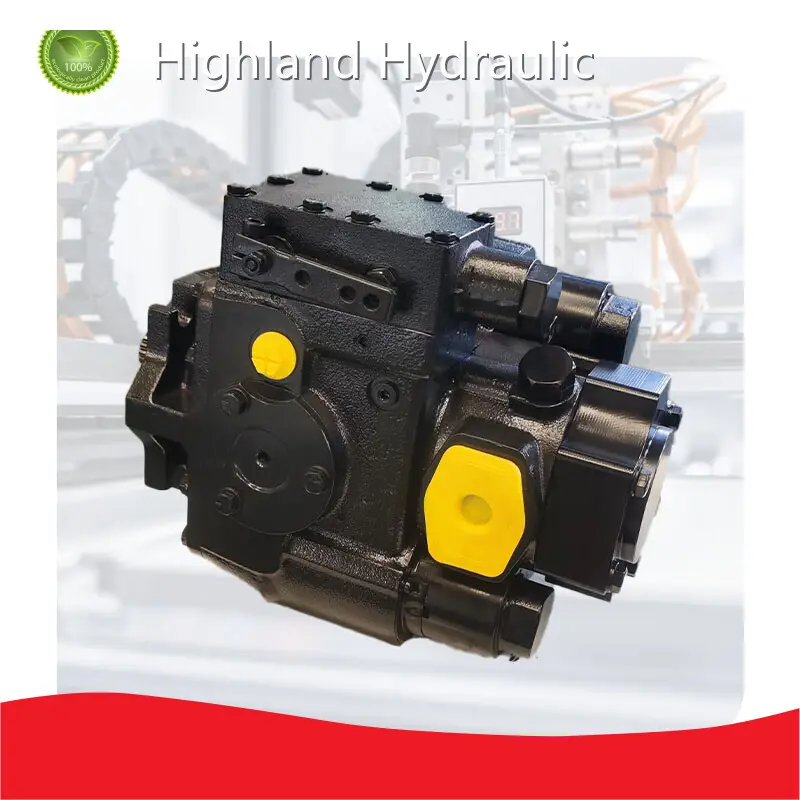

Axial Piston Pump Fixed Displacement 42mpa - - Highland Hydraulic 1

Axial Piston Pump Fixed Displacement 42mpa - - Highland Hydraulic 2

Axial Piston Pump Fixed Displacement 42mpa - - Highland Hydraulic 3

Axial Piston Pump Fixed Displacement 42mpa - - Highland Hydraulic 4

Axial Piston Pump Fixed Displacement 42mpa - - Highland Hydraulic 5

Axial Piston Pump Fixed Displacement 42mpa - - Highland Hydraulic 6

Axial Piston Pump Fixed Displacement 42mpa - - Highland Hydraulic 7

Axial Piston Pump Fixed Displacement 42mpa - - Highland Hydraulic

Certificate:

CE ISO9001

Inquiry

Hydraulic Pump Mode

HPV90

Application

Harvesting machinery

Pressure

42mpa

Operation Mode

Closed Circuit Hydraulic System

Product details of the axial piston pump fixed displacement

Product Specification

Hydraulic Pump Mode: HPV90

Operation Mode: Closed Circuit Hydraulic System

Application: Harvesting machinery

Pressure: 42mpa

Product Overview

Highland Hydraulic axial piston pump fixed displacement has a user-centric and product-centric design. What's more, Highland Hydraulic also takes axial piston pump fixed displacement into serious consideration to achieving a green living. Our axial piston pump fixed displacement is widely used. The quality of axial piston pump fixed displacement meets up with all national standards.

Product Information

Highland Hydraulic will present you axial piston pump fixed displacement's details in the following section.

High Efficiency Hydraulic Axial Flow Pumps in Agricultural Equipment

High efficiency axial flow pump for agricultural use, offering consistent performance,

low energy consumption, and durability across farming operations.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland high efficiency axial flow pump delivers smooth, reliable hydraulic performance for agricultural machinery. It supports consistent pressure with lower energy consumption, helping maximize productivity in tractors, harvesters, and irrigation systems.

Product Features

Highland high-efficiency hydraulic axial flow pumps provide powerful, reliable hydraulic performance for a wide range of farming machinery.
From tractors and harvesters to sprayers and irrigation systems, axial piston pumps deliver consistent flow and pressure with minimal energy waste.
Hydraulic axial flow pump ensure smooth operation, reduce system noise, and extend equipment lifespan.

Product INTRODUCTION

Optimized for today’s agricultural machinery, our axial flow pumps provide high-efficiency performance with consistent flow, reduced energy loss, and dependable durability. Ideal for a wide range of field operations, from tillage to irrigation.

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
Torque	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
Power	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70(90)

PDF

HPV110(130)

PDF

detail displaY

Axial Flow Pumps

Hydraulic Axial Piston Pumps

Agricultural Axial Flow Pumps

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of variable piston pump and hydraulic motor, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.

Company Introduction

Shandong Highland Hydraulic Seiko Co., Ltd, short for Highland Hydraulic, is a comprehensive and modern company. We are engaged in the production, processing and sales of Hydraulic pump、Hydraulic motor、Hydraulic test benches. Our company takes brand management as the core, technology innovation as the driving force, market demand as the guide, and scientific management as the means. We continuously improve the brand awareness and the market share of products, and promise to bring every consumer the highest quality products. We have our own team of professionals who use the industry experience accumulated over the years to guide the practice process and provide a guarantee for the production of high quality products. According to different needs of customers, Highland Hydraulic is capable of providing reasonable, comprehensive and optimal solutions for customers.
With years of experience in production, we guarantee our product quality so you can purchase them with confidence. Feel free to contact us!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
