Closed loop hydraulic pump/hydraulic motor manufacturer & hydraulic solutions provider - Highland Hydraulic

Axial Piston Pump 42mpa - - Highland Hydraulic 1

Axial Piston Pump 42mpa - - Highland Hydraulic 2

Axial Piston Pump 42mpa - - Highland Hydraulic 3

Axial Piston Pump 42mpa - - Highland Hydraulic 4

Axial Piston Pump 42mpa - - Highland Hydraulic 5

Axial Piston Pump 42mpa - - Highland Hydraulic 6

Axial Piston Pump 42mpa - - Highland Hydraulic 7

Axial Piston Pump 42mpa - - Highland Hydraulic

Certificate:

CE ISO9001

Inquiry

Application

Walking machinery

Pressure

42mpa

Operation Mode

Closed Circuit Hydraulic System

Working Medium

Hydraulic Oil

Product details of the axial piston pump

Product Specification

Operation Mode: Closed Circuit Hydraulic System

Pressure: 42mpa

Working Medium: Hydraulic Oil

Application: Walking machinery

Quick Overview

With rational construction, axial piston pump takes on in a better way. The product has been stringently tested on the basis of well-defined quality parameters to ensure it is of superior quality. Multiple in function and wide in application, axial piston pump can be used in many industries and fields. This product has attained immense popularity among our large customer base.

Product Description

The specific details for axial piston pump of Highland Hydraulic are mainly reflected in the following aspects.

PV23/089 Concrete Mixers Hydraulic Piston Pump Supplier

PV23/089 hydraulic piston pump is a durable, high-performance solution for concrete mixers,

ensuring efficient hydraulic operation, advanced pressure control, and reliable performance in heavy-duty applications.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

PV23/089 hydraulic piston pump is a highly efficient and durable solution for concrete mixers, delivering reliable hydraulic power for smooth and consistent performance. Designed for heavy-duty applications, it ensures long-lasting operation with minimal maintenance. Its advanced pressure control and robust construction make it ideal for construction projects requiring high-performance concrete mixing.

Product Features

PV23/089 hydraulic piston pump is a high-performance component designed for concrete mixers, offering exceptional efficiency and durability.
Engineered for demanding construction environments, this pump ensures smooth hydraulic operation, reducing downtime and enhancing productivity.
Its advanced design allows for optimal pressure control, delivering consistent power to support heavy-duty mixing applications.

Product INTRODUCTION

Designed for concrete mixers, PV23/089 hydraulic piston pump delivers high efficiency and durability in demanding construction environments. Its advanced hydraulic system ensures smooth operation and optimal power distribution, enhancing overall performance. Built with precision engineering, it provides reliable pressure control and long-lasting functionality, making it a top choice for professionals in the concrete mixing industry.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
Rated displacement	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
Torque	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
Power	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

PV23 Hydrostatic Pump

Hydraulic Piston Pump PV23

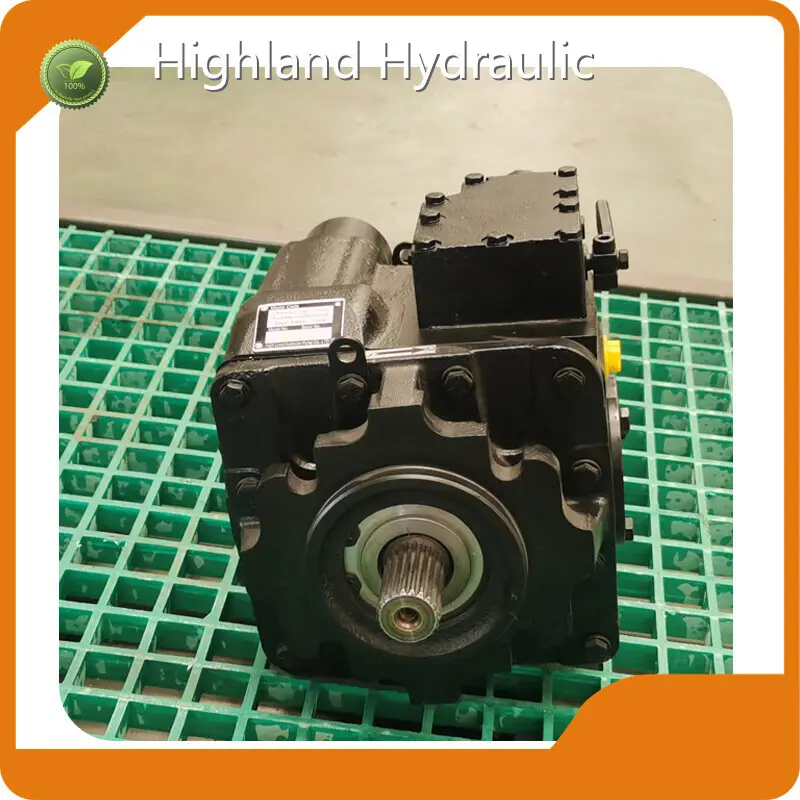

PV23/089 Hydraulic Piston Pump

Product Application

6-12 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

About Us

Shandong Highland Hydraulic Seiko Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with more than 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.

Packing & Delivery

To protect hydrostatic pump, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.

What is the supply ability for the Hydraulic Piston Pumps?

The supply ability for the Hydraulic Piston Pumps is 200 Sets per month.

Company Introduction

Shandong Highland Hydraulic Seiko Co., Ltd is capable of producing axial piston pump with large capacity. Technology applied in axial piston pump is advanced and greatly improve efficiency. The key value of our company is flexibility, communication and true level, proper support. We strive our best for customer satisfaction.
Welcome all customers to come for cooperation.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
