Axial Piston Hydraulic Pump Variable Hydraulic Pump Wholesale - Highland Hydraulic

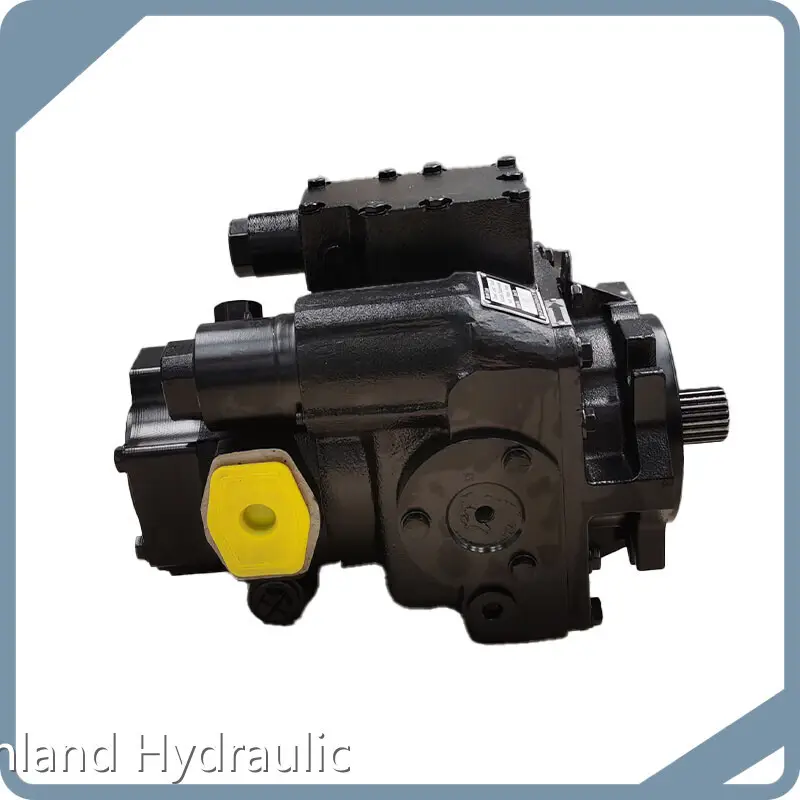

Product details of the axial piston hydraulic pump

Product Specification

Product Name: Variable Hydraulic Pump

Working Medium: Hydraulic Oil

Hydraulic Pump Mode: HPV110

Material: Cast Iron

Quick Overview

Highland Hydraulic axial piston hydraulic pump has attracting designs with consistency. Its technical parameters are in line with International standards and guidelines. The axial piston hydraulic pump of Highland Hydraulic can meet the different needs of different customers. The developed sales network has promoted Highland Hydraulic to be a unparalleled axial piston hydraulic pump supplier.

Product Description

Compared with other products in the same category, axial piston hydraulic pump has more advantages, specifically in the following aspects.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland high-pressure hydrostatic pump provides reliable hydraulic power for agricultural machinery. Designed to handle variable loads and harsh conditions, it offers precise control, high efficiency, and a long service life. Ideal for tractors, sprayers, and harvesters.

Product Features

• High Pressure Hydrostatic Pump is engineered specifically for agricultural hydraulic applications, offering unmatched performance, reliability, and energy efficiency.

• With the ability to operate under extreme field conditions, hydrostatic pump ensures smooth and accurate control of hydraulic systems in tractors, harvesters, and others.

• It delivers consistent high pressure for improved power transmission and supports a wide range of flow rates to match diverse farming tasks.

Product INTRODUCTION

Agricultural operations demand high-performance hydraulic solutions. This hydrostatic pump delivers the power and precision needed for efficient farming. Designed to withstand demanding environments, it ensures smooth operation and extended equipment life, making it a core component in advanced hydraulic systems.

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

Read More

HPV30(50)

PDF

HPV70(90)

PDF

HPV110(130)

PDF

detail displaY

Hydrostatic Pump

Agriculture Hydraulics

High Pressure Pumps

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of variable piston pump and hydraulic motor, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.

Company Information

Being an experienced manufacturer of axial piston hydraulic pump, Shandong Highland Hydraulic Seiko Co., Ltd is widely accepted for strong capabilities of designing and manufacturing innovative products. Our management team is comprised of experts with years of experience in the axial piston hydraulic pump industry. They are excellent in design, development, and production to push the whole team to work best. Enjoying a higher reputation in axial piston hydraulic pump industry has been a persisting task for Highland Hydraulic. Inquiry!
We look forward to working with you to move towards a more brilliant era.
