Axial Piston Hydraulic Pump Axial Piston Pump Wholesale - Highland Hydraulic

Product details of the axial piston hydraulic pump

Product Specification

Type: Axial piston pump

Working Medium: Hydraulic Oil

Material: Cast Iron

Characteristic: High efficiency

Product Information

Highland Hydraulic axial piston hydraulic pump is made of selected materials that are of high quality. The quality standards of this product are based on government and industry requirements. Its development history determines that it will have more potentials for development.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

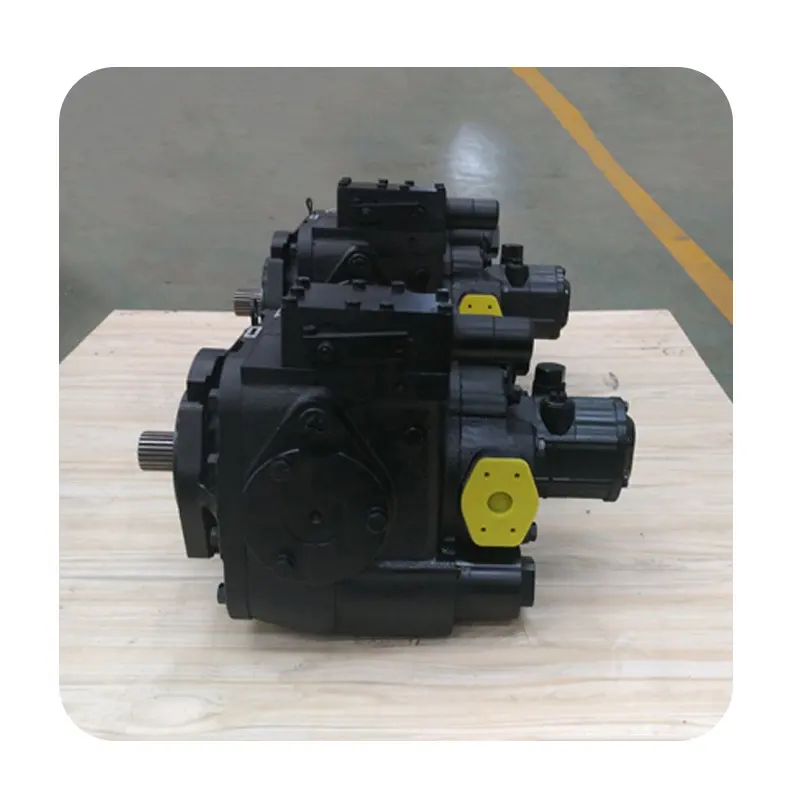

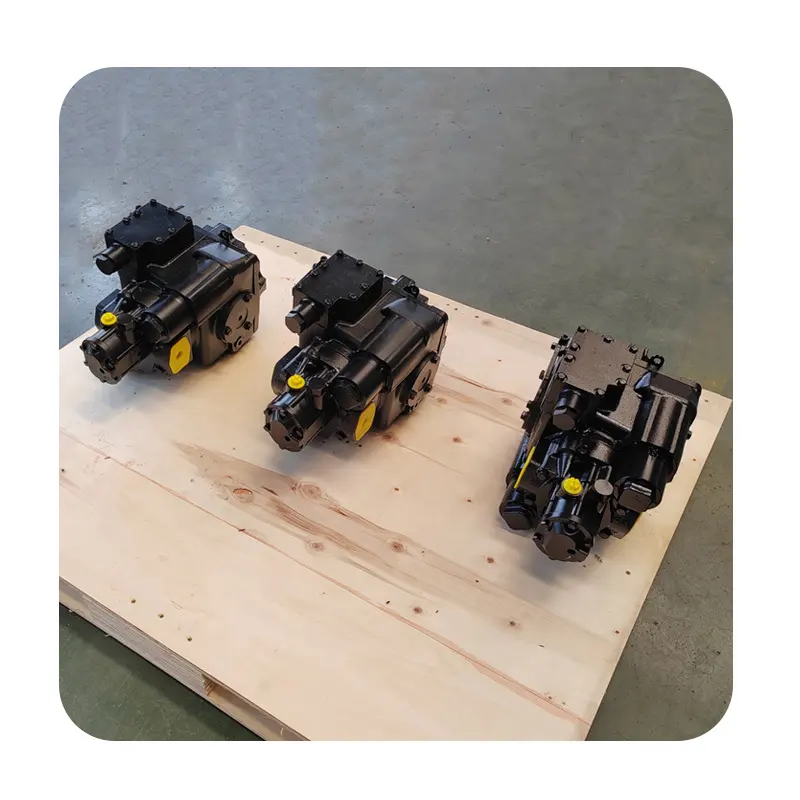

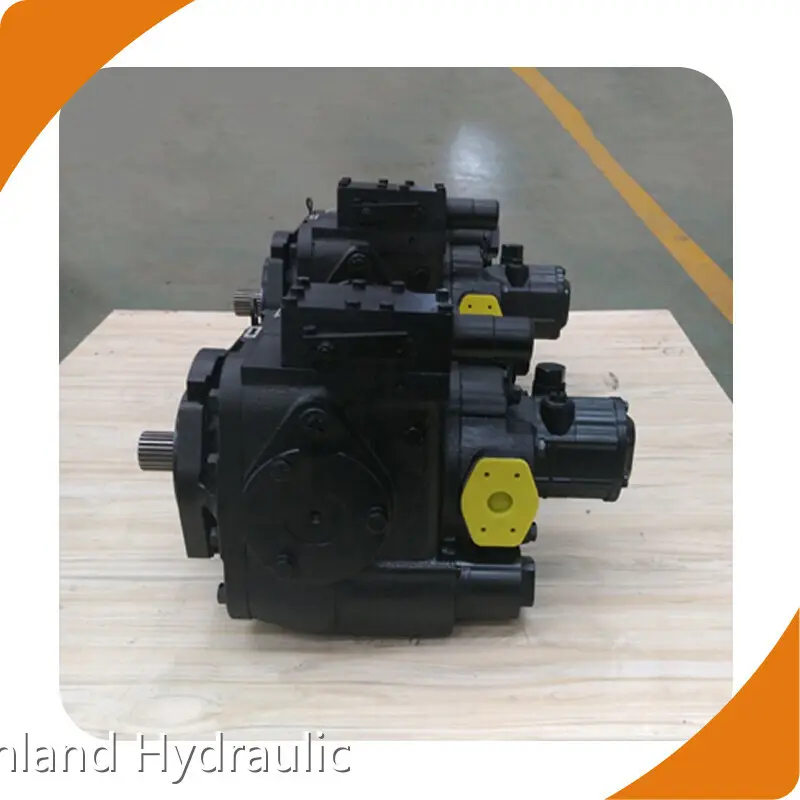

PV23 hydraulic plunger pump is built for high-pressure applications, ensuring optimal efficiency and durability. It features advanced hydraulic technology that enhances performance while reducing energy consumption. Its stable pressure control allows for smooth operation in demanding environments, making it an essential component for heavy-duty machinery.

Product Features

• PV23 hydraulic plunger pump is a premium-quality hydraulic component engineered for superior performance and reliability.
• Designed with precision manufacturing techniques, it ensures smooth and efficient operation while maintaining high-pressure stability.
• Highland hydraulic plunger pump is widely used in construction, mining, and industrial machinery, delivering consistent fluid flow and optimal power transmission.

Product INTRODUCTION

As a leading manufacturer, Highland Hydraulic, we specialize in producing high-performance PV23 hydraulic plunger pumps. Designed for industrial and construction use, these pumps deliver consistent pressure, smooth operation, and long-lasting durability. Our advanced manufacturing techniques ensure exceptional quality, efficiency, and reliability.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Read More

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

Hydraulic Plunger Pump

Pv23 Hydraulic Plunger Pump

Hydraulic Plunger Pump Manufacturer

Product Application

6-12 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

About Us

Shandong Highland Hydraulic Seiko Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with more than 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.

Packing & Delivery

To protect hydrostatic pump, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

Company Advantage

• Our company has established a brand new management mode and thoughtful service system. We serve every customer attentively, so as to meet customers' different needs and enhance their sense of trust.
• With good location advantages, the open and easy traffic serves as the foundation for Highland Hydraulic's development.
• Our company was set up in Since then, we have always been insisting on only selling high-quality products. In this way, we get a steady and healthy development.
• With a loyal team of solidarity, hard work, innovation, experience and vitality, our company is ensured to have a sustainable and healthy development.
Highland Hydraulic can provide processing and customization service. The quotation is only for reference, and please consult us for details.
