Closed loop hydraulic pump/hydraulic motor manufacturer & hydraulic solutions provider - Highland Hydraulic

Axial Piston Hydraulic Motor 87kg - - Highland Hydraulic 1

Axial Piston Hydraulic Motor 87kg - - Highland Hydraulic 2

Axial Piston Hydraulic Motor 87kg - - Highland Hydraulic 3

Axial Piston Hydraulic Motor 87kg - - Highland Hydraulic 4

Axial Piston Hydraulic Motor 87kg - - Highland Hydraulic 5

Axial Piston Hydraulic Motor 87kg - - Highland Hydraulic 6

Axial Piston Hydraulic Motor 87kg - - Highland Hydraulic

Packaging Details:

Plywood case

Delivery Time:

According to customers' quantity

Inquiry

more products

Hydrostatic Pump

Hydrostatic Motor

Hydraulic Test Bench

Portable Hydraulic Tester

Send your inquiry

Weight

87kg

Operation Mode

Closed Circuit Hydraulic System

Working Medium

Hydraulic Oil

Company Advantages

· axial piston hydraulic motor is an award-winning products that exceed our customer's expectations and offer unmatched value.

· Our axial piston hydraulic motor is characterized by high performance and stable quality.

· Till now this product has demonstrated a huge market prospect.

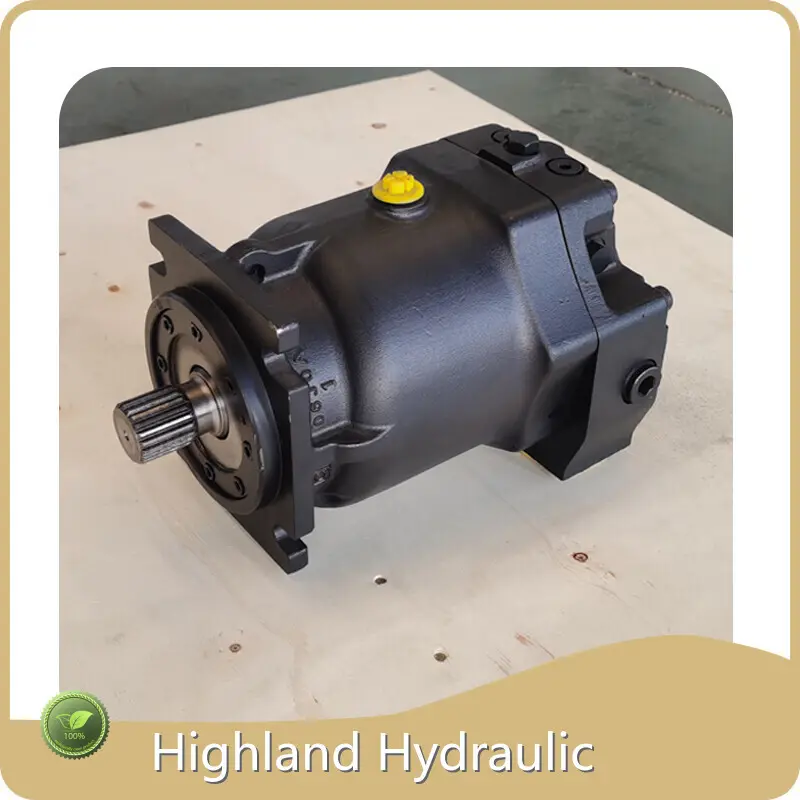

HIGHLAND HMF110 HYDRAULIC MOTOR

Fixed displacement hydraulic motor for closed loop operation

Products Advantages

HMF110 axial piston motor is widely used in heavy-duty fields such as engineering machinery, ship propulsion,

mining equipment, etc. It has the characteristics of strong reliability and long service life.

Axial Piston Hydraulic Motor 87kg - - Highland Hydraulic 8

Product Design

Delivers up to 3800 r/min to meet demanding applications.

Axial Piston Hydraulic Motor 87kg - - Highland Hydraulic 9

Low price

We promise the lowest price for new products of the same variety in the world

Axial Piston Hydraulic Motor 87kg - - Highland Hydraulic 10

Simplified External Design

Integrated rear cover with protection and wash valves, reducing external setup.

Universal Mounting Compatibility

International standards for installing flanges, shafts, and ports

Product Application

HMF110 hydraulic piston motor is widely used in hydraulic devices of heavy machinery, tractors, agricultural machinery, and construction machinery.

Asphalt side feeder machine

harvester

rice harvester

Hydraulic walking rice harvester

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3200	3200	3200	3000	2700	2700
	Maximum operating speed (instantaneous)	r/min	3800	3500	3200	3200	2900	2900
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	38
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant 0.25, Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	143	248	334	430	526	621
Torque	Maximum output torque	Nm	167	278	390	502	613	725
Power	Maximum power	KW	56	93	131	157	180	212
Temperature	Allowable temperature of shell	℃	-40 to 50
Temperature	Maximum operating temperature of fuel tank	℃	80
Weight	HMF series hydraulic motor Hydraulic oil drainage	kg	22	23	33	34	36	38

HMF30（50）

PDF

HMF70（90）

PDF

HMF110（130）

PDF

KEY PARAMETERS

Displacement (ml/r): 30, 50, 70, 90, 110, 130
Rated pressure (Mpa): 35
Max. pressure (Mpa): 38

Typical Applications

Hydraulic Drive Forklifts
Skid Steer Loaders
Agricultural and Forestry Machinery
Any closed-circuit drive machinery

Hmf110 related hydraulic components

HMF130 Hydraulic Motor

HPV90 Heavy Duty Hydraulic Motor

HMF30 Fixed Displacement Hydraulic Motor

HYDRAULIC PUMP & MOTOR MANUFACTURER

Shandong Highland Hydraulic Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with nearly 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydraulic pump 2.Hydraulic motor 3.Hydraulic test bench 4.Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=1000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.

Company Features

· Many people at home and abroad choose Highland Hydraulic as their first choice when they are in need of axial piston hydraulic motor.

· Highly advanced technologies and latest equipment are used while fabricating axial piston hydraulic motor.

· Shandong Highland Hydraulic Seiko Co., Ltd partners with you to deliver exceptional solutions that are customized just for you. Get an offer!

Application of the Product

The axial piston hydraulic motor produced by our company is widely recognized by customers and widely used in field.

We strive to provide customers with efficient, complete, and flexible solutions based on their needs.

Product Comparison

The axial piston hydraulic motor produced by Highland Hydraulic has better quality, as shown below.

Enterprise Advantages

In order to improve our techniques, our company has trained a group of high-educated and high-quality talents. Meanwhile, senior experts from relevant fields at home and abroad are also hired to offer technical support.

Our company has a unique quality system for production management. At the same time, our large after-sales service team can improve the quality of the products by investigating the opinions and feedback of customers.

We will continue to conform to the principle of 'quality first, users first, reputation first', and provide the best products with most preferential prices, and the most perfect services for customers to meet their needs.

Highland Hydraulic was established in With firm belief and strong perseverance, we have successfully experienced years of wind and rain. Now we are an excellent enterprise with leading technology in the industry.

Highland Hydraulic's products are not only sold well in China but also exported to various regions of foreign countries.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
