Closed loop hydraulic pump/hydraulic motor manufacturer & hydraulic solutions provider - Highland Hydraulic

Axial Hydraulic Pump Plywood Case by Highland Hydraulic 1

Axial Hydraulic Pump Plywood Case by Highland Hydraulic 2

Axial Hydraulic Pump Plywood Case by Highland Hydraulic 3

Axial Hydraulic Pump Plywood Case by Highland Hydraulic 4

Axial Hydraulic Pump Plywood Case by Highland Hydraulic 5

Axial Hydraulic Pump Plywood Case by Highland Hydraulic 6

Axial Hydraulic Pump Plywood Case by Highland Hydraulic 7

Axial Hydraulic Pump Plywood Case by Highland Hydraulic

Packaging Details:

Plywood case

Payment Terms:

T/T, Western Union

Inquiry

Application

Harvesting machinery

Brand

HIGHLAND

Mode

HPV30|HPV50|HPV70|HPV90|HPV110|HPV130

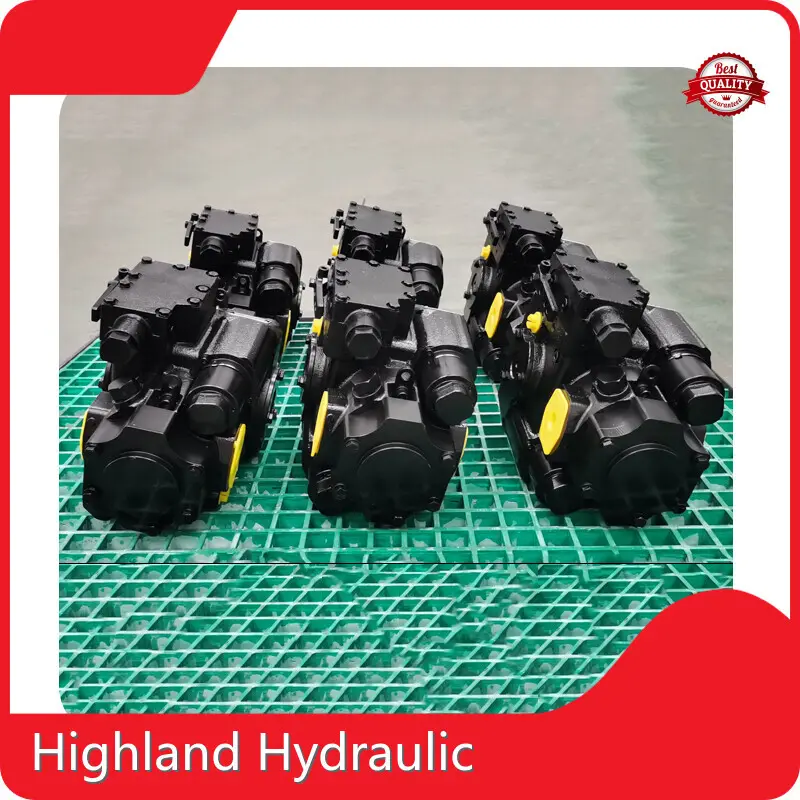

Product details of the axial hydraulic pump

Product Specification

Mode: HPV30|HPV50|HPV70|HPV90|HPV110|HPV130

Brand: HIGHLAND

Application: Harvesting machinery

Quick Detail

axial hydraulic pump is specially designed for users who require both style and performance. The performance of axial hydraulic pump is almost the same as overseas similar product performance. Highland Hydraulic's axial hydraulic pump can be used in different industries to meet the needs of customers. Shandong Highland Hydraulic Seiko Co., Ltd provides both a professional image and quality service to attract and retain customers.

Product Description

Compared with other products in the same category, axial hydraulic pump has the following major features.

High Pressure HIgh efficiency hydraulic plunger pump

for harvesting machine

A durable, high efficiency hydraulic plunger pump built to enhance the performance and reliablity

of modern harvesting machines under heavy workloads.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland hydraulic plunger pump provide high-pressure, high-efficiency solutions for agricultural harvesters. Featuring variable displacement for precise control, they ensure smooth and reliable performance. Designed with durability in mind, they withstand harsh conditions, reducing downtime and maintenance needs.

Product Features

Highland hydraulic plunger pumps are engineered to meet the rigorous demands of harvesting machines.
Designed for high performance and efficiency, they offer smooth operation, and durability under heavy workloads.
With advanced hydraulic technology, Highland hydraulic pumps optimize energy consumption while providing reliable power transmission, enhancing machine productivity.

Product INTRODUCTION

Highland hydraulic manufacture advanced high efficiency hydraulic plunger pumps, specifically designed for agricultural harvesting machines. With high efficiency, precise control, and robust construction, our pumps enhance performance and reliability in modern farming operations, ensuring maximum productivity and reduced energy consumption.

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
Torque	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
Power	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70(90)

PDF

HPV110(130)

PDF

detail displaY

Hydraulic Plunger Pump

High Pressure Hydraulic Plunger Pump

Harvesting Hydraulic Plunger Pump

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of variable piston pump and hydraulic motor, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.

Company Advantages

Shandong Highland Hydraulic Seiko Co., Ltd in de zhou is a modern enterprise integrating production, processing and sales. Hydraulic pump、Hydraulic motor、Hydraulic test benches is our key product. Our company thinks highly of service. We innovate service methods and improve service quality, so as to provide thoughtful services for each customer, including pre-sales consulting, after-sales service management. We hope to cooperate with you for a win-win situation and jointly create a better future.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
