Product details of the axial hydraulic pump

Product Specification

Material: Cast Iron

Working Medium: Hydraulic Oil

Displacement: 110ml/r

Product Information

The choice of materials for axial hydraulic pump is as simple as possible. The complete quality inspection and quality assurance system guarantee its performance. This product is effectively applied in the industry with its compatible functions.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

HPV110 variable displacement axial piston pump delivers precise hydraulic output suited to high-demand industrial systems.** Featuring robust piston-slipper assemblies and optimized swash plate angles, the HPV110 ensures stable pressure control, low pulsation, and reduced energy losses, maximizing system efficiency and reliability.

Product Features

Compact and efficient structure, designed for quick disassembly and easy maintenance.

Exceptional high-pressure resistance ensures stable long-term operation.

Capable of multi-pump serial configurations to flexibly meet complex working conditions.

Multiple control modes available: manual servo, electric proportional servo, and hydraulic servo.

Competitive pricing, committed to delivering maximum cost-effectiveness.

Product INTRODUCTION

HPV110 variable displacement axial piston pump offers advanced hydraulic solutions designed specifically for demanding industrial applications. Its precision-engineered swash plate mechanism and robust piston assemblies ensure accurate hydraulic flow, minimal pulsation, and enhanced operational efficiency, providing superior reliability and performance.

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

Read More

HPV30(50)

PDF

HPV70(90)

PDF

HPV110(130)

PDF

detail displaY

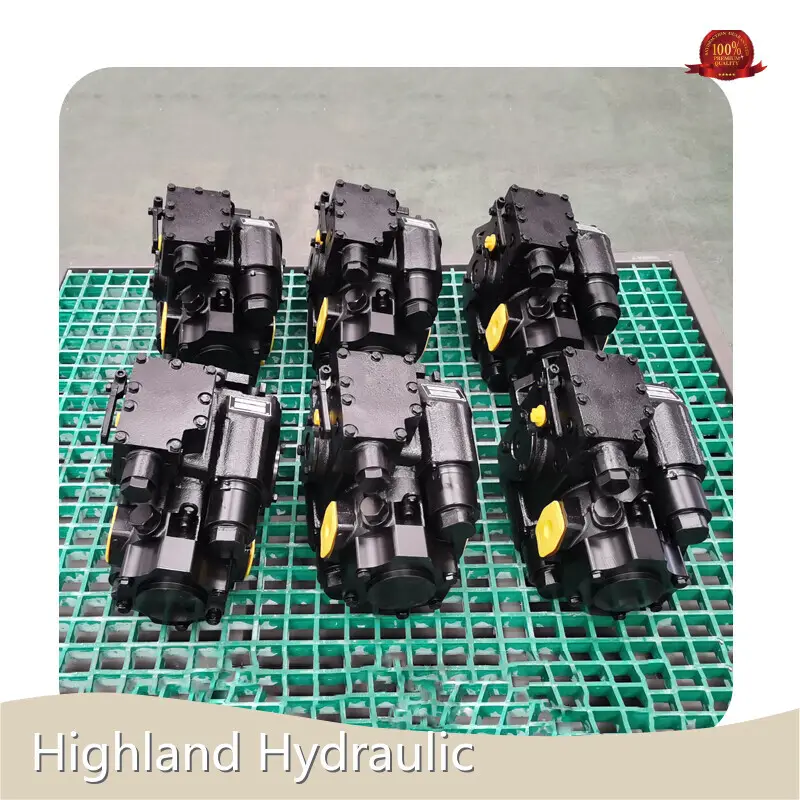

HPV110 Pump

Pump Manufacturer

Hydraulic Pump

HPV110 Hydraulic Pump

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.
