Optimized Hydraulic Efficiency with HPV Series
Optimized internal fluid channels minimize pressure drops, improving overall pump efficiency.
High-resilience sealing systems effectively manage internal pressures, preventing hydraulic leakage.
Superior axial piston geometries guarantee consistent displacement and volumetric efficiency.
Integrated performance sensors offer precise operational feedback for proactive maintenance.
High-durability thrust bearings provide reliable axial load management over prolonged usage periods.
Explosive HPV50 Variable Displacement Pump Manufacturer
our advantage
Product Description
HPV50 series delivers precise fluid control and energy efficiency, ideal for machinery requiring dependable hydraulic power and minimized operational expenses.
Product Features
High-strength piston assembly materials endure rigorous pressure fluctuations without deformation.
Proprietary hydraulic balancing techniques significantly reduce internal vibration and enhance durability.
Sophisticated internal channel geometry optimizes fluid flow, reducing energy consumption.
Innovative lubrication pathways maintain consistent internal surface coverage, minimizing friction.
Precision-engineered servo valves ensure highly responsive and precise operational control.
Product INTRODUCTION
Highland axial hydraulic pump and hydraulic motor assembly and hydraulic system with high quality, high-performance parameters. Hydraulic pump is the variable one that is with charge pump, its control way of variable displacement hydraulic pump can be manual servo or hydraulic servo, electric proportional servo controls. And can simply control speed, direction and power of the output shaft of hydraulic motor.
PRODUCT SPECIFICATIONS
|
Rated |
|
30 |
50 |
70 |
90 |
110 |
130 |
|
|
Maximum displacement |
ml/r |
30 |
50 |
70 |
90 |
110 |
130 |
|
|
Speed |
Maximum continuous operating speed |
r/min |
3500 |
3500 |
3200 |
3000 |
2900 |
2700 |
|
Rated speed |
r/min |
2500 |
||||||
|
Minimum continuous operating speed |
r/min |
500 |
||||||
|
Pressure |
Rated working pressure |
Mpa |
35 |
|||||
|
Maximum working pressure (instantaneous) |
Mpa |
42 |
||||||
|
Continuous working pressure ( Δ P) |
Mpa |
30 |
||||||
|
Allowable shell pressure (absolute) |
Mpa |
Constant0.25，Peak value0.5 |
||||||
|
Torque |
Continuous output torque |
Nm |
162.3 |
252.3 |
342.6 |
432.9 |
535.3 |
632.4 |
|
Maximum output torque |
Nm |
227 |
353 |
480 |
606 |
749 |
885 |
|
|
Power |
Continuous Power |
KW |
41 |
72 |
98 |
128 |
137 |
162 |
|
Maximum power |
KW |
57 |
87 |
105 |
138 |
159 |
188 |
|
|
Temperature |
Allowable temperature of shell |
℃ |
80 |
|||||
|
Maximum operating temperature of fuel tank |
℃ |
70 |
||||||
|
Angle |
Maximum inclination angle of the inclined plate |
° |
± 18 ° |
|||||
|
Weight |
HPV series hydraulic pump Hydraulic oil drainage |
kg |
45 |
46 |
63 |
64 |
87 |
87.5 |

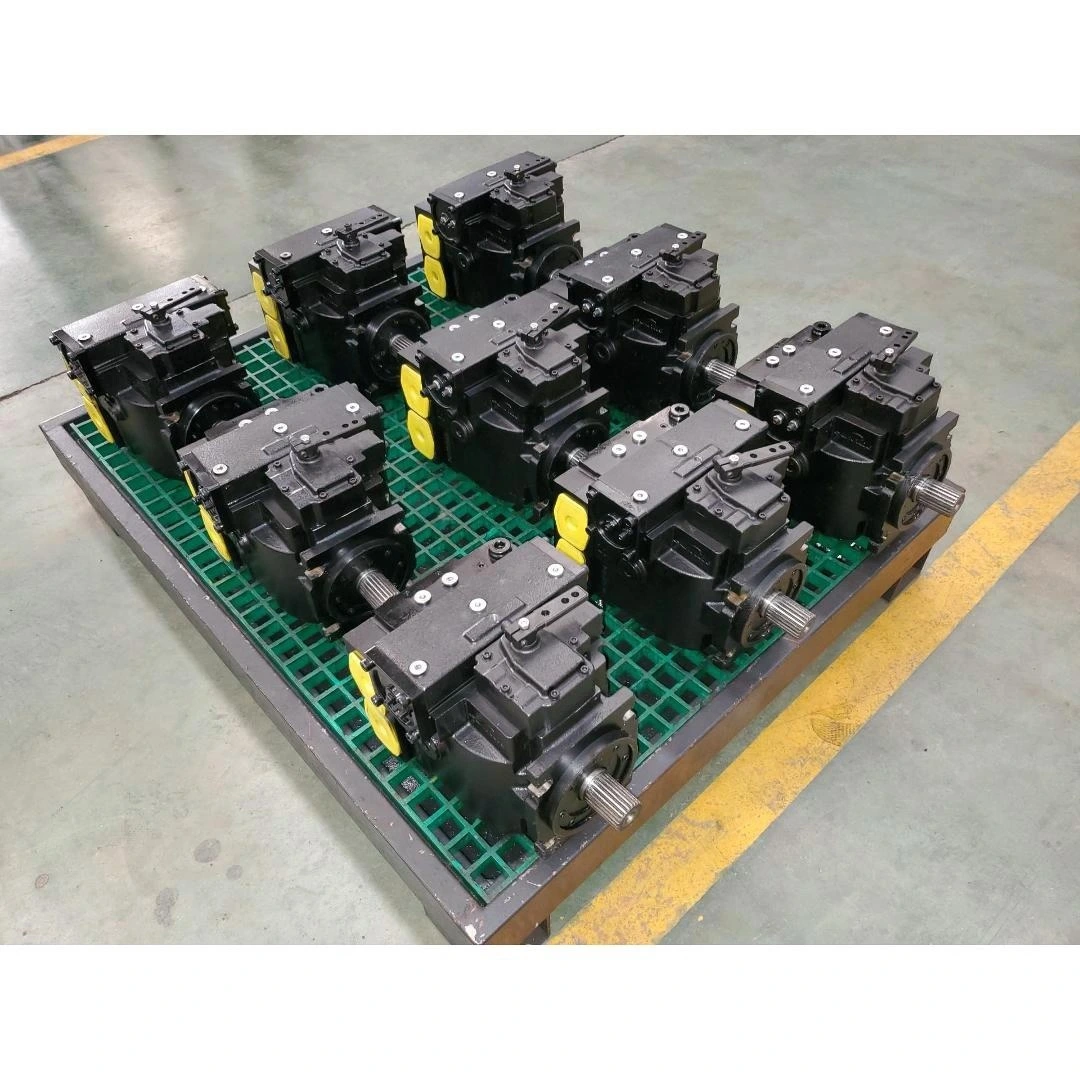

detail displaY
Product Application
About Us
Shandong Highland Hydraulic Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with nearly 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.
Packing & Delivery
To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.
